LOCATIONS OF CONTROLS AND INDICATORS

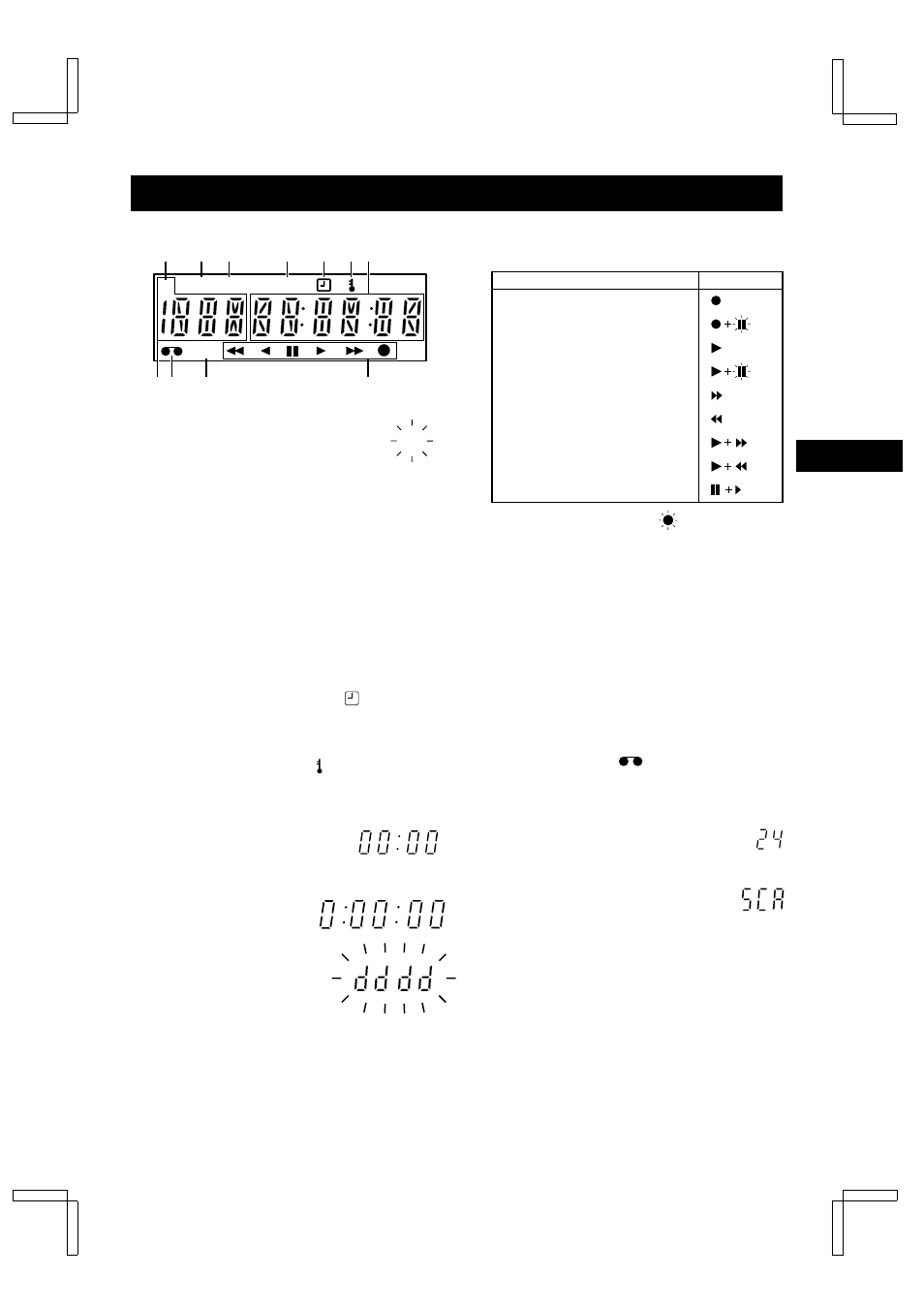

Digital Display
1
Alarm indicator
Flashes when an alarm is
being recorded:
Comes on after the alarm
has been recorded:
2
Error indicator ER
Comes on in case of a problem
3
Power failure indicator
Comes on after a power failure.
4
External input indicator E
Comes on when recording using the EXT TIMER IN
input terminal.
5
Timer Recording indicator
Comes on when in timer recording stand-by mode,
or during a timer recording.
6
Security lock indicator
Comes on when the security lock is engaged.
7
Counter display
•
Time display
•
Linear time counter
display
•
Dew display
8 Operation Indicators
•
They display the actual operation mode.
Operation Mode Indicator
Record (REC)
Record pause (REC PAUSE)
Playback (PLAY)
Still image (STILL)
Fast forward (FF)
Rewind (REW)
Cue (CUE)
Review (REVIEW)
Field shift forward (FIELD SHIFT +)
•
Clog detection indicator
Flashes when the recording quality deteriorates
due to dirty VCR heads.
9
OFF indicator
Comes on when the tape end has been reached
after a recording, except during autorepeat
recording mode.
NOTE:
•
The buzzer will be heard as long as “OFF” is
displayed on the digital display.
To cancel the “OFF” display, press the EJECT,
PLAY, STOP, FF or REW button.
F
Cassette indicator
Comes on when a cassette is loaded.
G
Mode display
•
Recording/playback
speed mode
•
Alarm scan mode
M E P AL
OFF
8 9 F G
ER
2 1 3 5 6 7 4
AL
AL
P
OFF
AL
