M O D E L S 4 2 4 A N D 4 2 4 F S
S I T E P R E P A R A T I O N
The Sub-Zero Model 424FS wine storage unit
is designed to be attractive in a stand alone
setting. It can also be slid into surrounding
cabinetry with clearance dimensions slightly
different than the standard built-in Model 424.
Make sure that the finished rough opening
where the Wine Storage unit is to be installed
is properly prepared. Refer to the Installation
Specifications illustration for rough opening
dimensions, door swing clearance and electri-
cal placement for Models 424 and 424FS.
IMPORTANT NOTE: To operate properly, the
door must open a minimum of 90 degrees.
Use a minimum 3" (76) filler in corner installa-
tions to assure a 90-degree door opening.
Allow enough clearance in front of the unit for
full door swing.
IMPORTANT NOTE: Make sure the floor under
the unit is level with the surrounding finished
floor.
3
Dimensions in parentheses are in
millimeters unless otherwise specified.

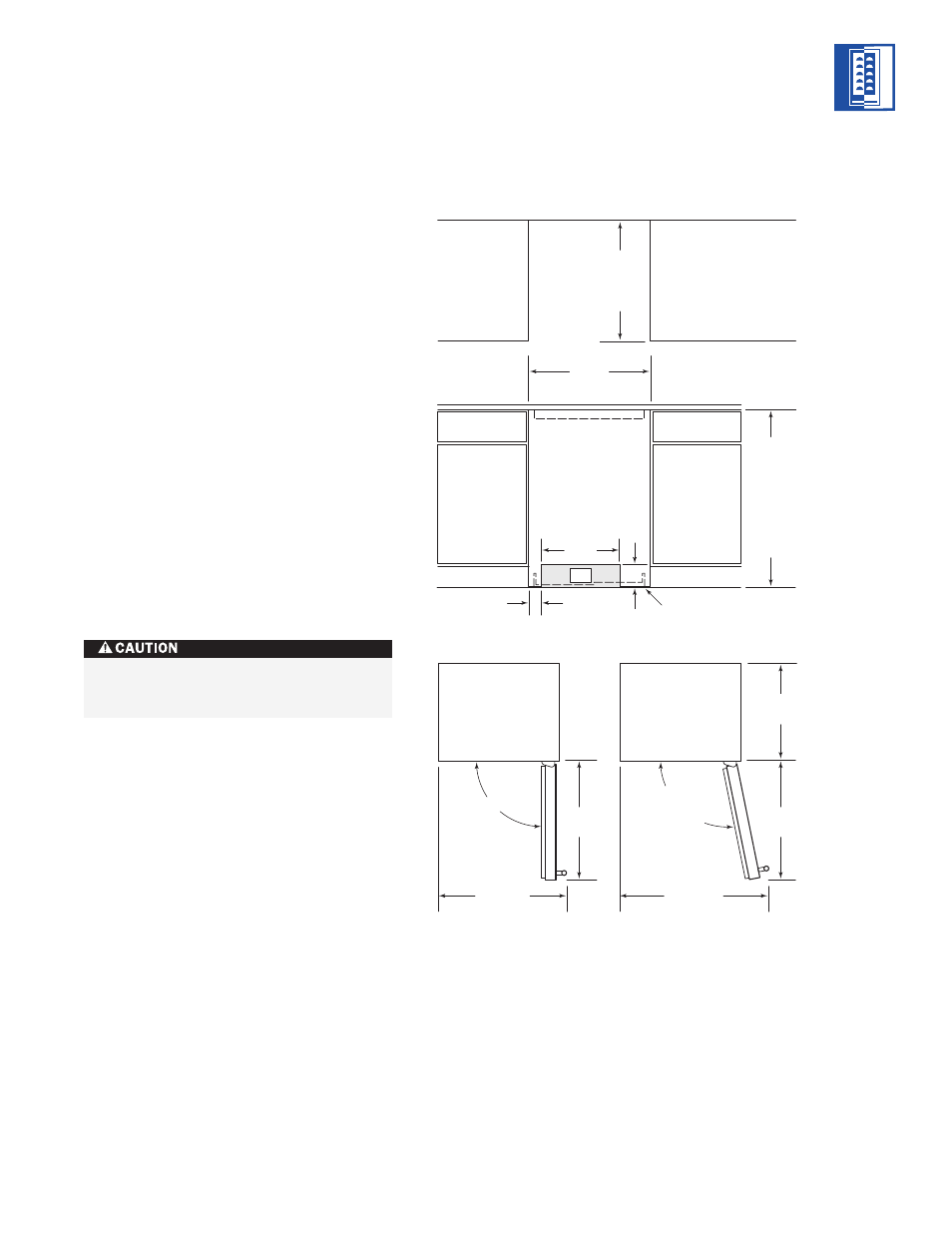

M O D E L S 4 2 4 A N D 4 2 4 F S I N S T A L L A T I O N
34 1 / 2 "
(876)
ROUGH
OPENING
HEIGHT
34 1 / 4 "
(870)
MINIMUM
HEIGHT
REQUIRED
ROUGH OPENING
WIDTH
24" (610) MODEL 424
24 3 / 8 " (619) MODEL 424FS
15 1 / 2 "
(394)
24"
(610)
ROUGH
OPENING
DEPTH
LOCATE ELECTRICAL
WITHIN SHADED AREA
E
4 1 / 2 "
(114)
2 1 / 2 "
(64)
23 7 / 8 "
(606)
MODEL 424
ANTI-TIP BRACKET
MODEL 424FS
ANTI-TIP BRACKET
90˚
145˚
MAXIMUM
DOOR SWING
44" (1118)
DOOR CLEARANCE
26" (660)
DOOR CLEARANCE
25 3 / 8 "
(644)
25 3 / 8 "
(645)
FRONT VIEW
TOP VIEW
Do not load wine into the Wine Storage
unit until the installation is complete.
I N S T A L L A T I O N S P E C I F I C A T I O N S
NOTE: Door swing clearances are based on stainless
steel door and handle dimensions.
M O D E L S
4 2 4 | 4 2 4 F S
