6
"J" Bolt
Nut
Belt
Deck
Washer

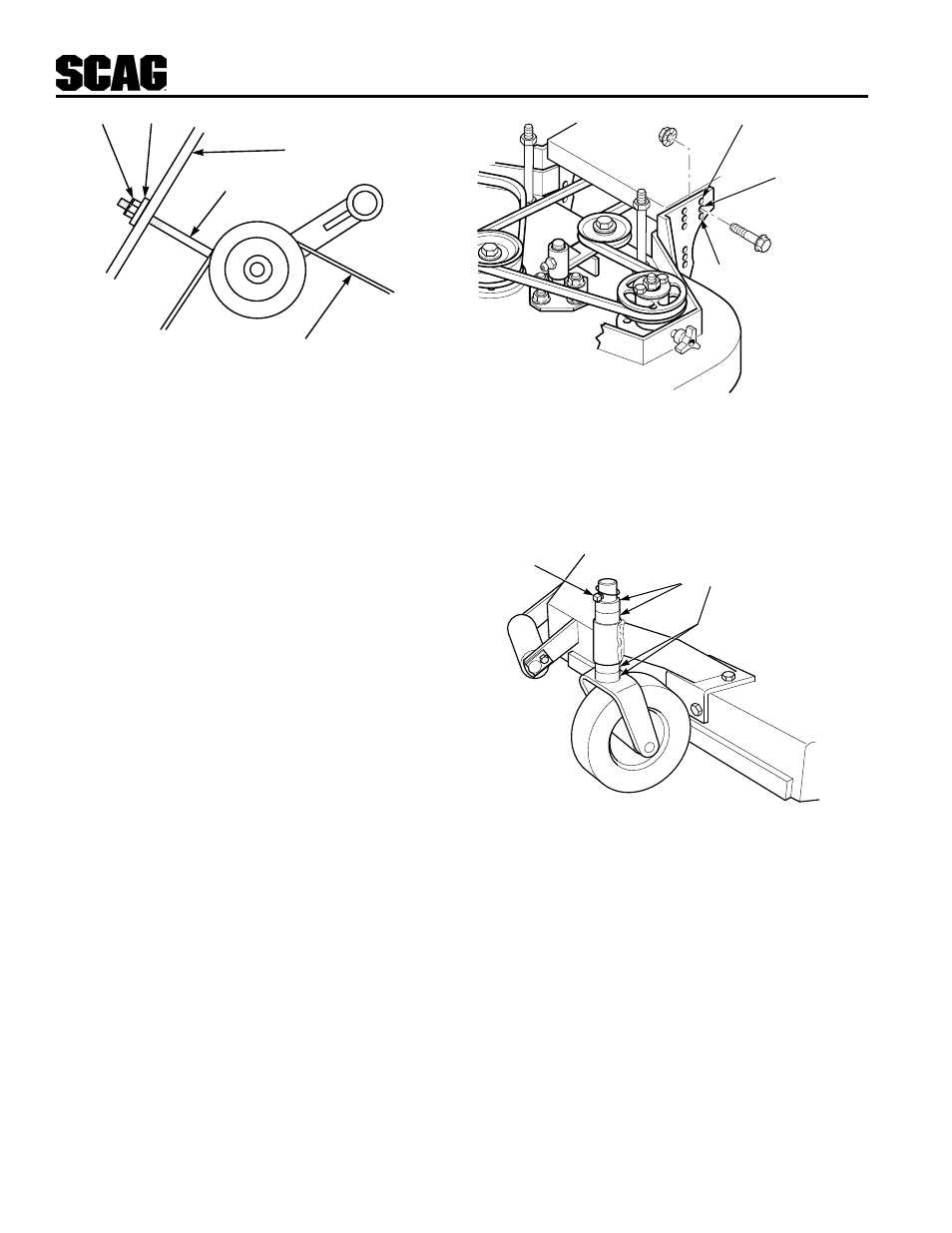

Figure 3. Cutter Deck Belt Adjustment R.H.
4. Replace the belt cover.
CUTTER DECK ADJUSTMENTS
Due to the many cutting conditions that exist, it is
difficult to suggest a cutter deck setting that will
work for every lawn. There are two adjustments
that can be made on these decks, pitch and height.
PITCH is the angle of the blades (comparing front
to rear). A 1/4" downward pitch (front of deck
down) is recommended for best cutting perfor-
mance.
HEIGHT is the nominal distance the blade is off of
the ground. This measurement is made with the
blades pointed side to side and distance is measured
between cutting tip and ground. (Also see Blade
Height Adjustment)
Changes to the cutting height can be achieved by
repositioning the cutter deck. (This adjustment will
also effect the pitch of the deck). There are three
available positions (see figure 4).
SC405G
LOW CUT (1 3/4"- 3")
HIGH CUT (3 1/4"- 4 1/2")
MID RANGE
(2 1/2"- 3 3/4")
CUTTER DECK HEIGHT ADJUSTMENT
Figure 4 Cutting Height Adjustment
Caster spacers also can be repositioned to change
cutting heights and to change the pitch of the deck.
(See figure 5)
SC406G
PIN
SPACERS
REPOSITIONING SPACERS
Figure 5. Caster Wheel Spacers
BLADE HEIGHT ADJUSTMENT
Adjusting the blade height can be done by moving
any number of the five smaller 1/4" spacers on the
blade mounting bolts to the top of the spindle shaft or
below the spindle shaft.
-NOTE-
All blades should be positioned equally.
For best cut and discharge, a minimum of three
spacers should be installed between the blade and the
spindle. (See figure 6)
