3. ATTACHING THE HANDLE, GROUNDING AND AC POWER CORD CONNECTION
3.1 ATTACHING THE CHARGER HANDLE
CAUTION: The charger must be fully assembled before operating.
a. Locate the handle and four screws provided. The charger comes with one of two types of
handles.
b. Remove the top two screws at the rear from both sides of the charger.
c. Straddle the handle over the charger and align the mounting holes. Make sure the handle is

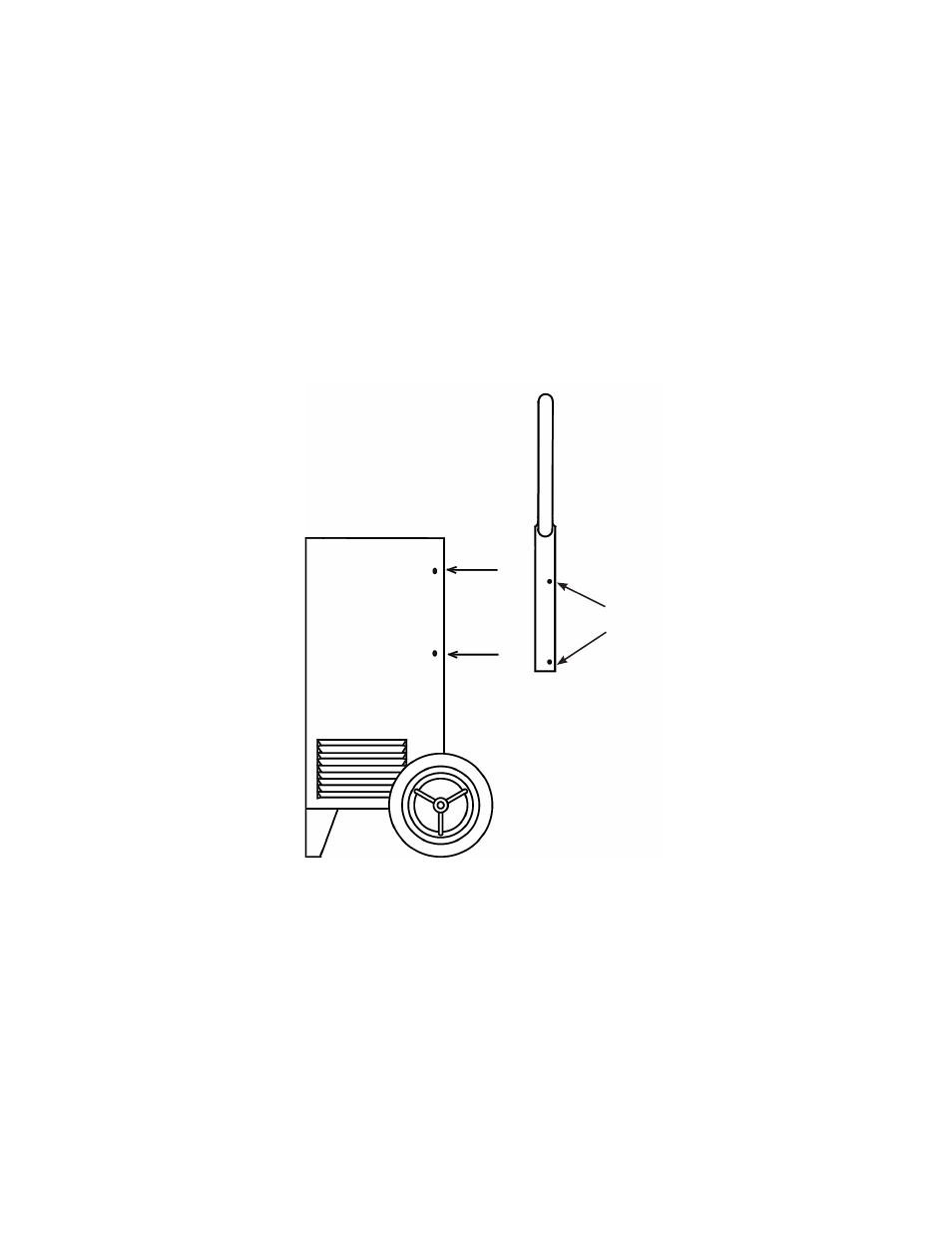

flush with the edge of the charger (see drawing.)
d. Attach the handle with the four screws and tighten securely.
Notice offset of
holes to orient
handle correctly.
3.2 The charger must be grounded to reduce risk of electric shock. The NAPA Digital Wheel
Charger is equipped with an electric cord having an equipment grounding conductor and a
grounding plug, which must be plugged into an outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
DANGER: NEVER ALTER CHARGER’S ORIGINAL AC CORD AND PLUG. IF THE PLUG
DOES NOT FIT OUTLET, HAVE A PROPER OUTLET INSTALLED BY A qUALIFIED
ELECTRICIAN. IMPROPER CONNECTION CAN RESULT IN THE RISK OF AN ELECTRIC
SHOCK. alWayS kEEp ChaRgER UNplUggED FROM OUTlET WhEN ChaRgER IS
IDlE.
