60 GB
You can listen to the sound from the
component connected through the DIGITAL
MEDIA PORT adapter to the DMPORT jack
on the receiver.
You can also view the images on the TV
screen by connecting the video output of the
DIGITAL MEDIA PORT adapter to the
receiver.
To view the images, proceed to “Watching a
connected component through DMPORT
connection” on page 61.
To detach the DIGITAL MEDIA
PORT adapter from DMPORT
jack
Press and hold both sides of the connector and
then pull out the connector.
Notes
• When connecting the DIGITAL MEDIA PORT
adapter, be sure the connector is inserted with the
arrow mark facing toward the arrow mark on the
DMPORT jack.
• Be sure to make DMPORT connections firmly,
insert the connector straight in.
• As the connector of the DIGITAL MEDIA PORT
adapter is fragile, be sure to handle with care when
placing or moving the receiver.

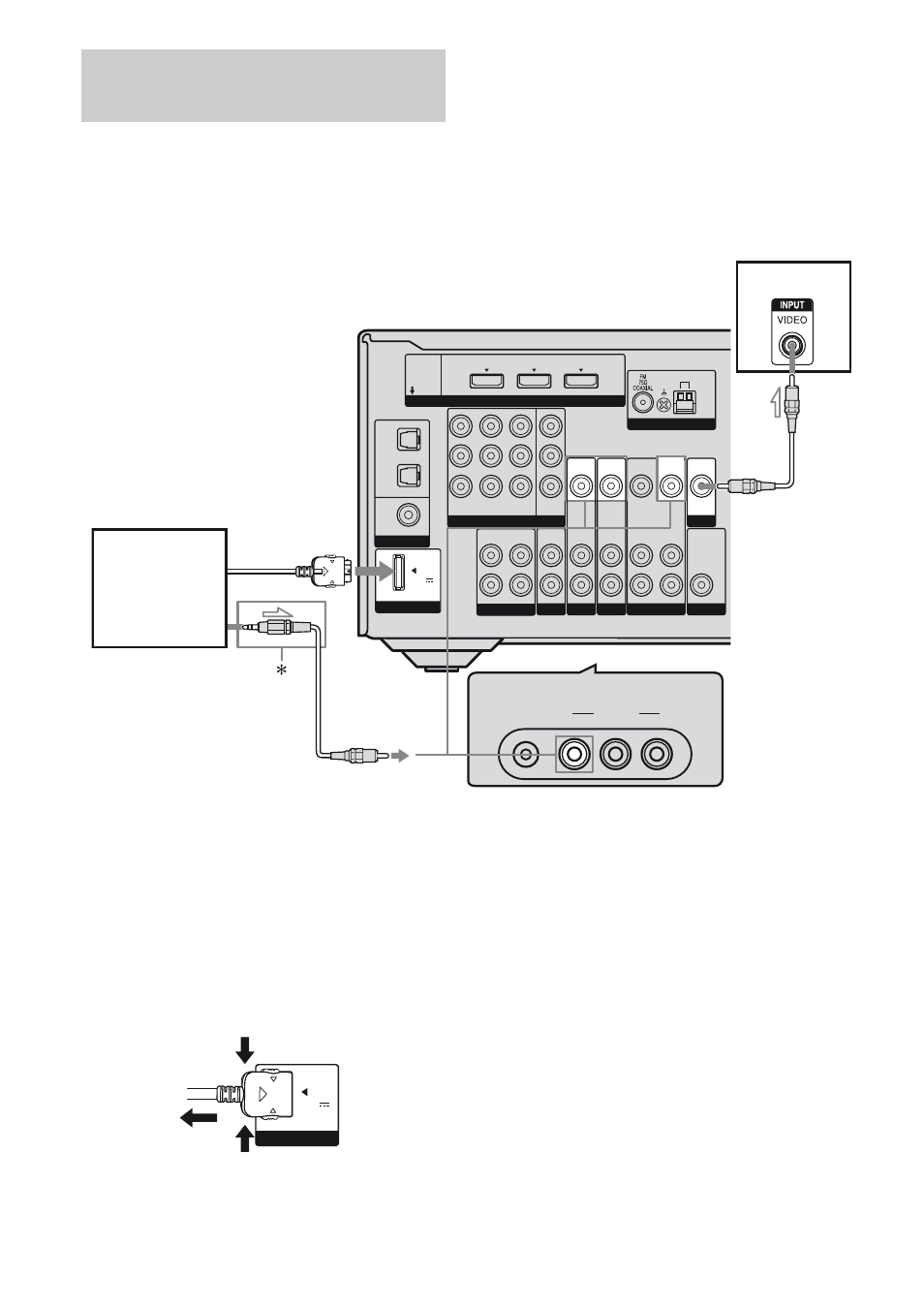

Connecting the DIGITAL MEDIA
PORT adapter
VIDEO
OUT
VIDEO
OUT
AUDIO
OUT
AUDIO
OUT
AUDIO
IN
AUDIO
IN
AUDIO
IN
AUDIO
IN
AUDIO
OUT
SAT IN DVD IN BD IN MONITOR
OUT
AUDIO
IN
ANTENNA
AM
Y
P B /
C B
P R /
C R
DC5V
0.7A MAX
DMPORT
DIGITAL
SAT
IN
BD
IN
OPTICAL
DVD
IN
COAXIAL
L
R
SA-CD/CD/CD-R TV
COMPONENT VIDEO
SAT DVD VIDEO 1 SUBWOOFER
MONITOR
AUTO CAL MIC VIDEO L AUDIO R
VIDEO 2 IN
HDMI
DVD IN BD IN OUT
CONNECT TO
DIGITAL
INPUT
FOR AUDIO
VIDEO
IN
VIDEO
IN
VIDEO
IN
A
A
TV
DIGITAL MEDIA
PORT adapter
To one of the
VIDEO IN jacks
(On the front panel)
* The type of connector varies depending on the DIGITAL MEDIA PORT adapter.
For details, refer to the operating instructions supplied with the DIGITAL MEDIA PORT adapter.
A Video cord (not supplied)
DC5V
0.7A MAX
DMPORT
2
1
