*You can watch the selected input image when you
connect the HDMI OUT or MONITOR OUT jack
to a TV (page 19).

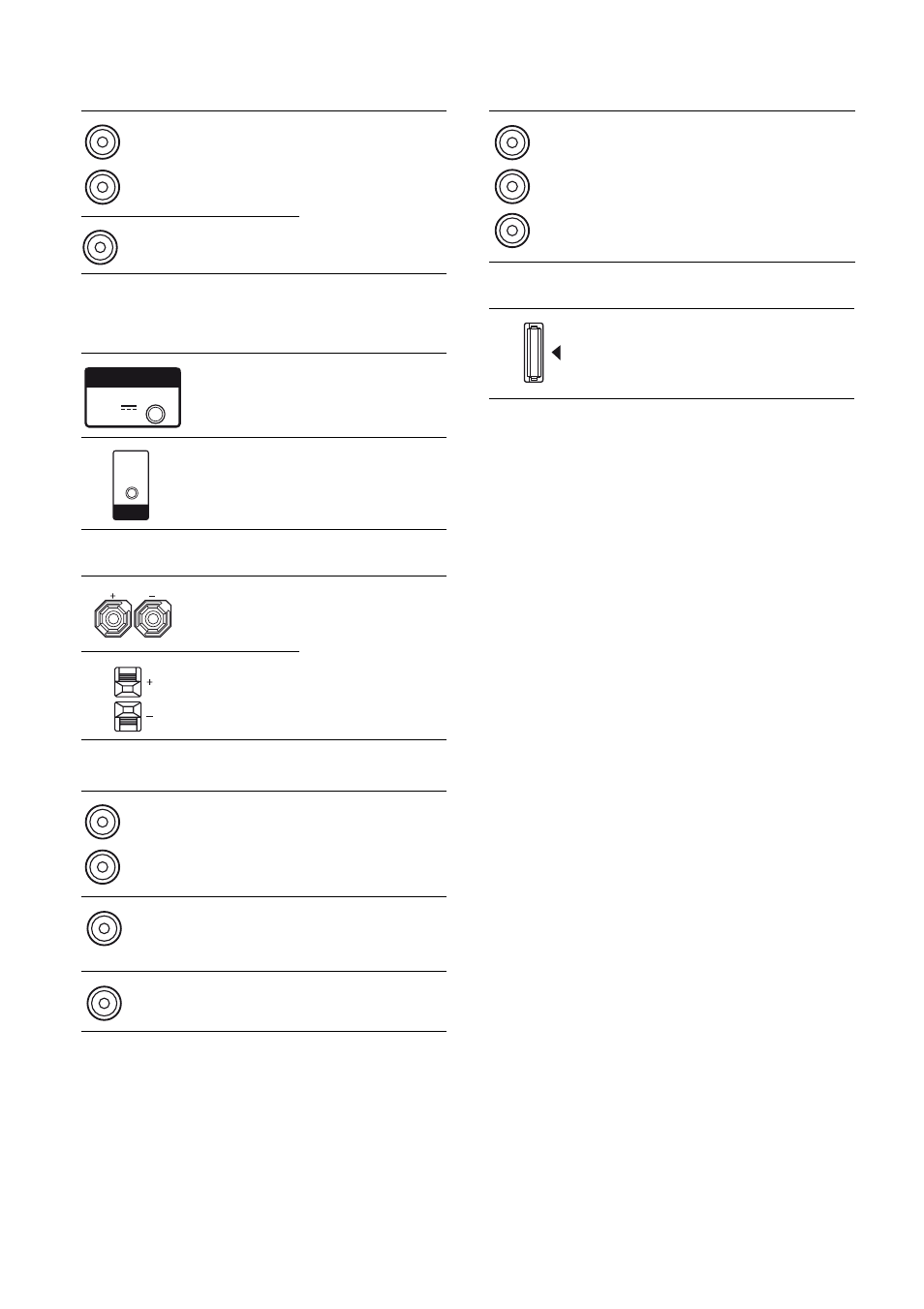

C VIDEO/AUDIO INPUT/OUTPUT
section
AUDIO IN/
OUT jacks Connects to a VCR,
DVD player, etc.
(page 19, 24, 25,
26).
VIDEO IN/
OUT* jacks
D SYSTEM CONTROL INPUT/OUTPUT
section
SYSTEM
CONTROL
OUT jack Connects to the
power amplifier
(page 18).
SYSTEM
CONTROL IN
jack Connects to the
receiver (page 18).
E SPEAKERS section
Connects to the
supplied speakers
(page 16).
F AUDIO INPUT/OUTPUT section
AUDIO IN/
OUT jacks Connects to a Super
Audio CD player,
etc. (page 20).
AUDIO OUT
jack Connects to the
power amplifier
(page 18).
AUDIO IN
jack Connects to the
receiver.
White (L)
Red (R)
Yellow
OUT
DC5V
50mA MAX
SYSTEM CONTROL
IN
SYSTEM
CONTROL
White (L)
Red (R)
Black
Black
G COMPONENT VIDEO INPUT/
OUTPUT section
Y, P
B
/C
B
,
P
R
/C
R
IN/
OUT* jacks
Connects to a DVD
player, TV, satellite
tuner, etc. You can
enjoy high quality
image (page 19, 24,
25).
H DMPORT
DMPORT
jack
Connects to a
DIGITAL MEDIA
PORT adapter
(page 60).
Green
(Y)
Blue
(P
B
/C
B
)
Red
(P R /C R )
