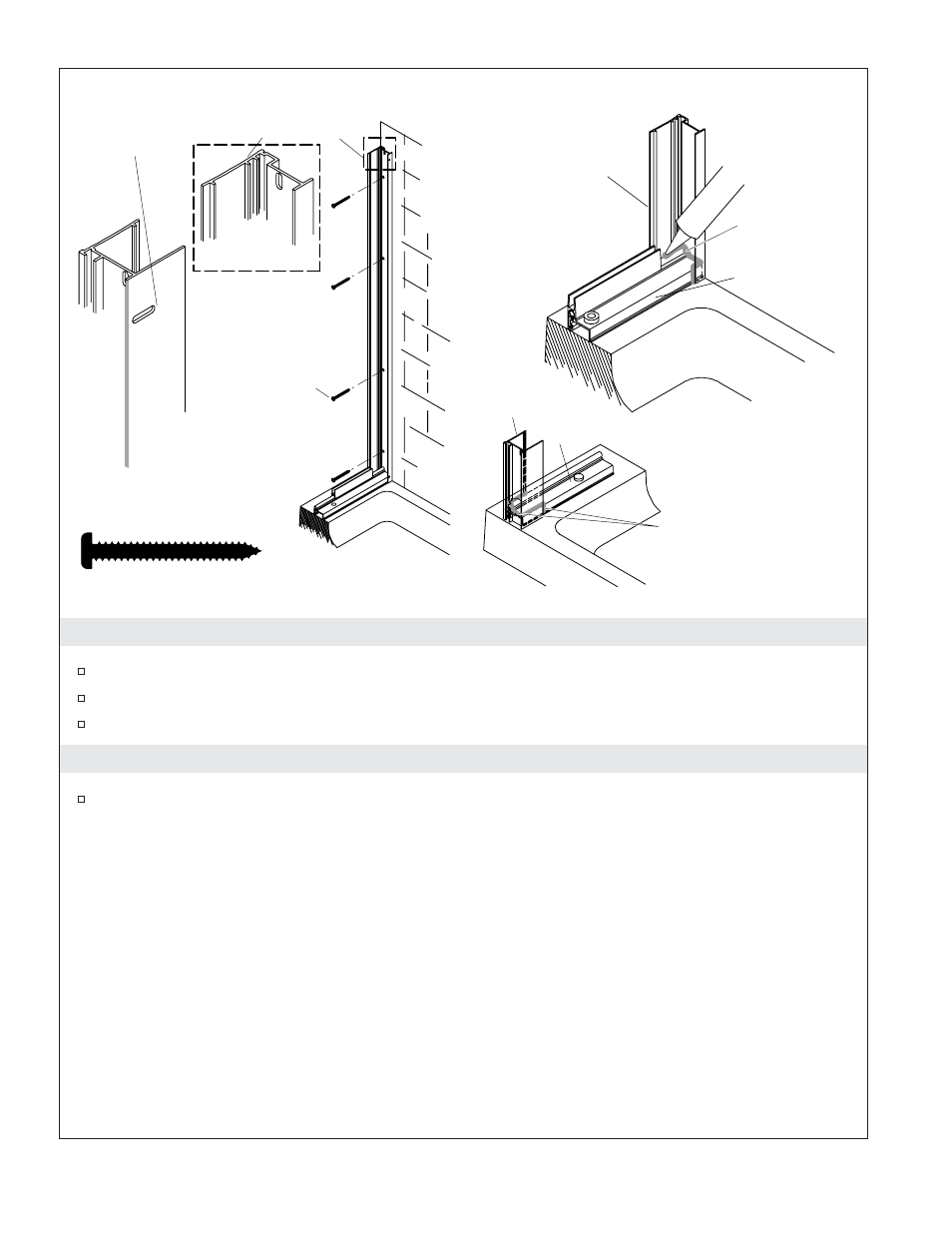

7. Install the Wall Jambs

Insert the pivot jamb over the bottom track on the pivot side of the door.

Secure the pivot jamb with four #8-18 x 1-1/2

″ panhead screws.

Repeat the procedure with the strike jamb on the other wall.

8. Caulk the Bottom Track and Wall Jambs

Apply silicone sealant where the pivot and strike jambs meet the bottom track, as shown.

#8-18 x 1-1/2"
Panhead Screw

Strike Side
Wall Jamb

Install the Wall Jambs

Pivot Jamb

Inside of Shower

Strike Jamb

Inside of Shower

Pivot Jamb

Bottom Track

Seal the Bottom Track

Apply silicone
sealant here.

1034026-2-D

Sterling
