10 PCB Layout
10-4 MJ15AS*/MJ17AS*/MJ19AS*/
MJ15BS*/MJ17BS*/MJ19BS*

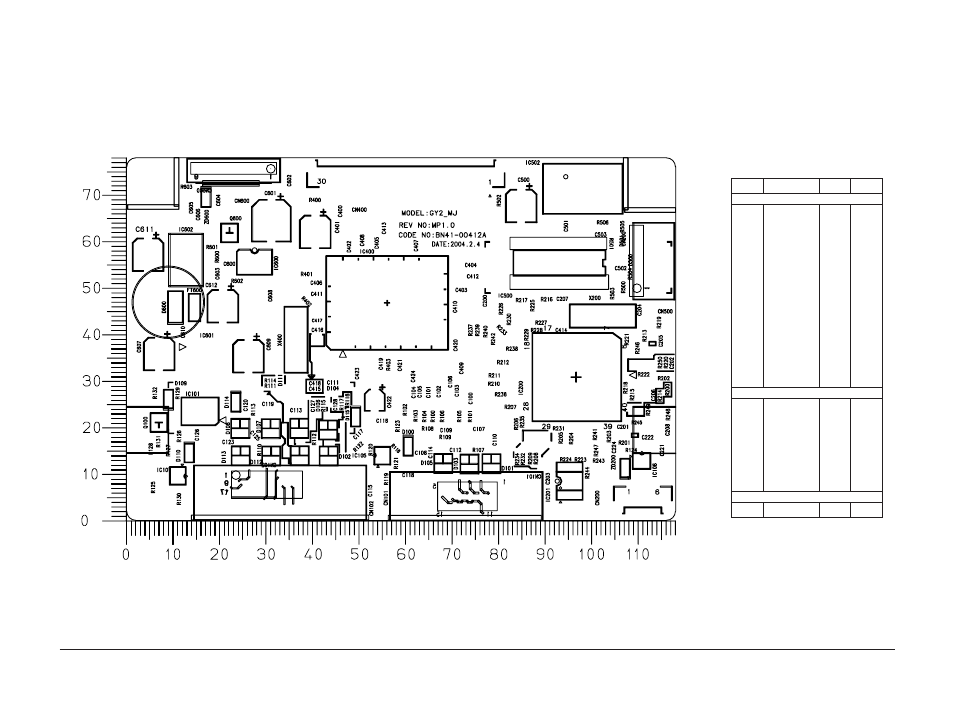

10-4 MJ17BS*/MJ19BS* DIGITAL PCB
X
Y
D100 DIODE-ZENER 60.5 16.0
D101 DIODE-SWITCHING 78.3 12.3
D102 DIODE-SWITCHING 43.4 14.0
D103 DIODE-SWITCHING 73.6 12.2
D104 DIODE-SWITCHING 43.3 19.6
D105 DIODE-SWITCHING 68.0 12.4
D106 DIODE-SWITCHING 37.1 19.9
D107 DIODE-SWITCHING 31.0 19.9
D108 DIODE-SWITCHING 24.4 19.9
D109 DIODE-ZENER 9.0 26.2
D110 DIODE-ZENER 13.5 14.6
D111 DIODE-SWITCHING 37.2 14.0
D112 DIODE-SWITCHING 31.1 14.0
D113 DIODE-SWITCHING 24.5 14.0
D114 DIODE-ZENER 23.5 25.5
D115 DIODE-ZENER 49.2 22.3
D600 DIODE-RECTIFIER 10.5 46.1
ZD200 DIODE-ZENER 107.1 11.3
ZD600 DIODE-ZENER 17.1 69.6
IC101 IC-EEPROM 15.8 23.6
IC105 DIODE-TVS 55.0 14.0
IC106 DIODE-TVS 110.7 12.9
IC107 DIODE-TVS 11.0 9.6
IC200 IC-MICROCONTROLLER 96.6 30.9
IC201 IC-EEPROM 95.2 8.5
IC400 IC-LCD CONTROLLER 56.0 46.9
IC600 FET-SILICON 27.5 55.8
IC601 IC-DUAL VOLTAGE REGULATOR 17.4 35.5
Q100 TR-SMALL SIGNAL 7.0 21.1
Loc. No. Description X Y
DIODE
IC
TRANSISTOR
