4 Alignments and Adjustments

4-2

MJ15AS*/MJ17AS*/MJ19AS*/

MJ15BS*/MJ17BS*/MJ19BS*

4-6 Service Function Spec.

4-6-1 How to Display Service Function OSD

1. The value for brightness and contrast should be changed to zero.
2. Within 5 seconds, press the (Enter/Source) key.
3. Service function OSD will be displayed.

❇

If you want to disable the service function OSD, you will have to power off.

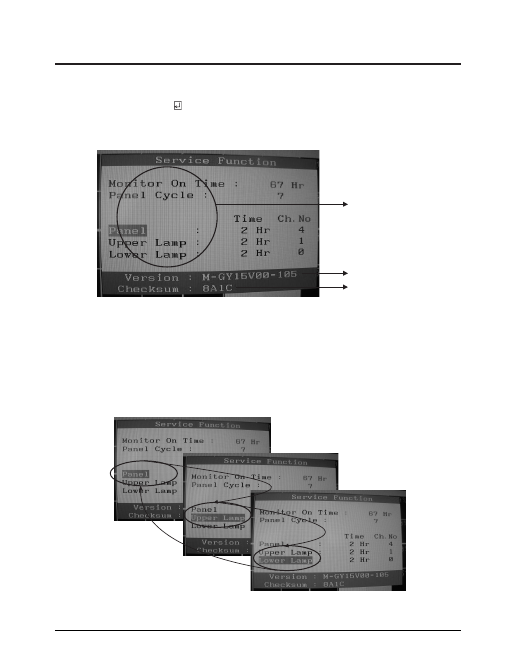

Figure 2. The example of service function OSD

Figure 3.

Panel Information

Softward Version

Checksum

The service function OSD is based on a grid of 29 columns x 12 rows.
The service function OSD consists of panel information, software version and MICOM checksum.

4-6-2 How to Control Service Function OSD

1. With the panel selected on OSD, whenever you press the right key, the base color will change to blue

from “Panel” to “Upper Lamp”, “Lower Lamp”.
