Instructions for the Installer
6
2. INSTALLING THE APPLIANCE
The appliance must be installed by a qualified engineer in compliance with the relevant regulations.
Depending on the type of installation, it is in class 1 (Fig. A) or class 2 - sub-class 1 (Fig.B-C).

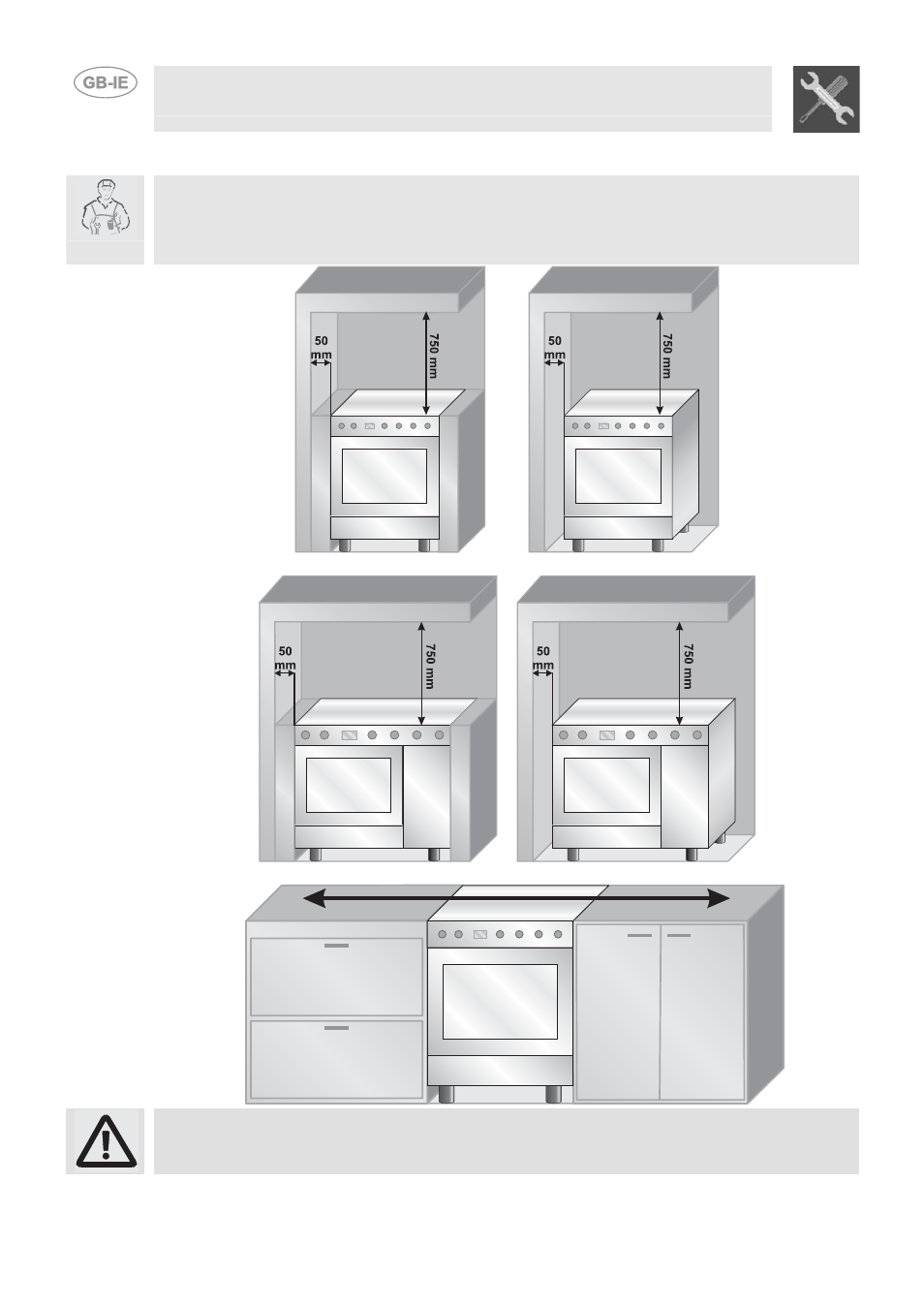

It may be installed against walls one of which is higher than the worktop surface, at least 50 mm from
the side of the appliance, as shown in the installation class drawings A and B. Wall units or extractor
hoods installed above the appliance's work-top must be at least 750 mm above it.
A
B
Built-in Appliance
Free-Standing Installation
A
B
Built-in Appliance
Free-Standing Installation
C
Appliances with gas cylinder compartment and electric oven may only be installed in free-
standing mode (see fig. B).
