Instructions for the Installer

14

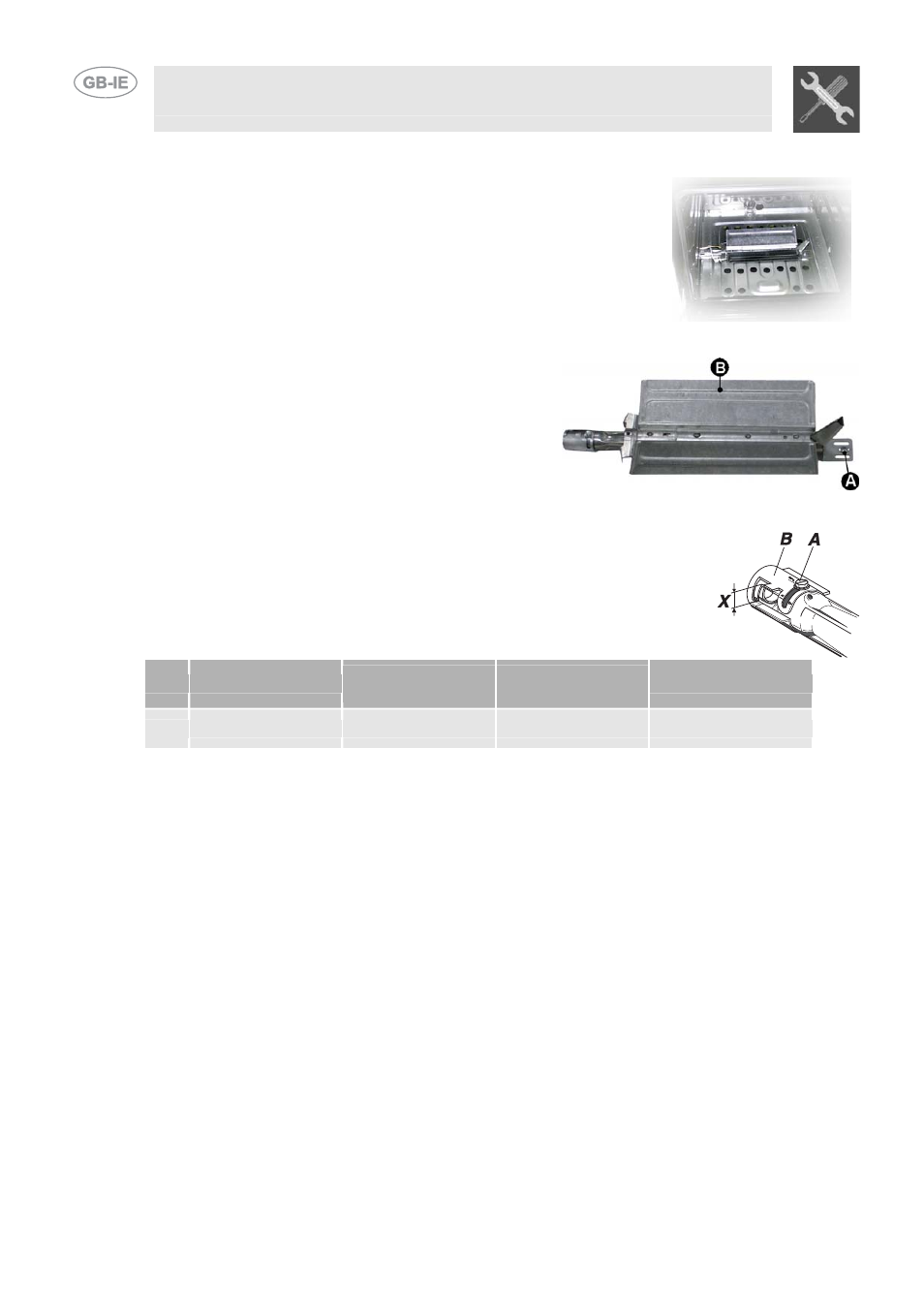

3.6 Adjusting the oven burner (for gas oven models only)

To adjust the oven burner, open the oven door and proceed as follows:

• Remove the oven tray and its shelf.
• Lift and extract the oven bottom.

3.6.1 Changing the oven + grill burner nozzle

• Undo the oven burner fixing screw A.
• Push the burner B to the right until the nozzle is

accessible.

• Use a 13 socket wrench to change the nozzle, fitting

the one for the type of gas to be used (see point
“3.2/3.3 Burner and Nozzle Data Tables”).

3.6.2 Adjusting the oven+grill burner primary air flow

• Undo the adjuster screw "A" of the air regulator sleeve.
• Turn the regulator sleeve "B" into the position for the type of gas to be

used, consulting the table below.

• Tighten the adjuster screw and restore the seals.
• When the operation is complete, reassemble the burner correctly.

NATURAL GAS (N)

G30/G31 (LPG)

90 cm Oven

G30/G31 (LPG)

60cm Oven

G 110 – TOWN GAS

X =

5 mm

15 mm

10 mm

3 mm
