installation & connection
1_ installation & connection

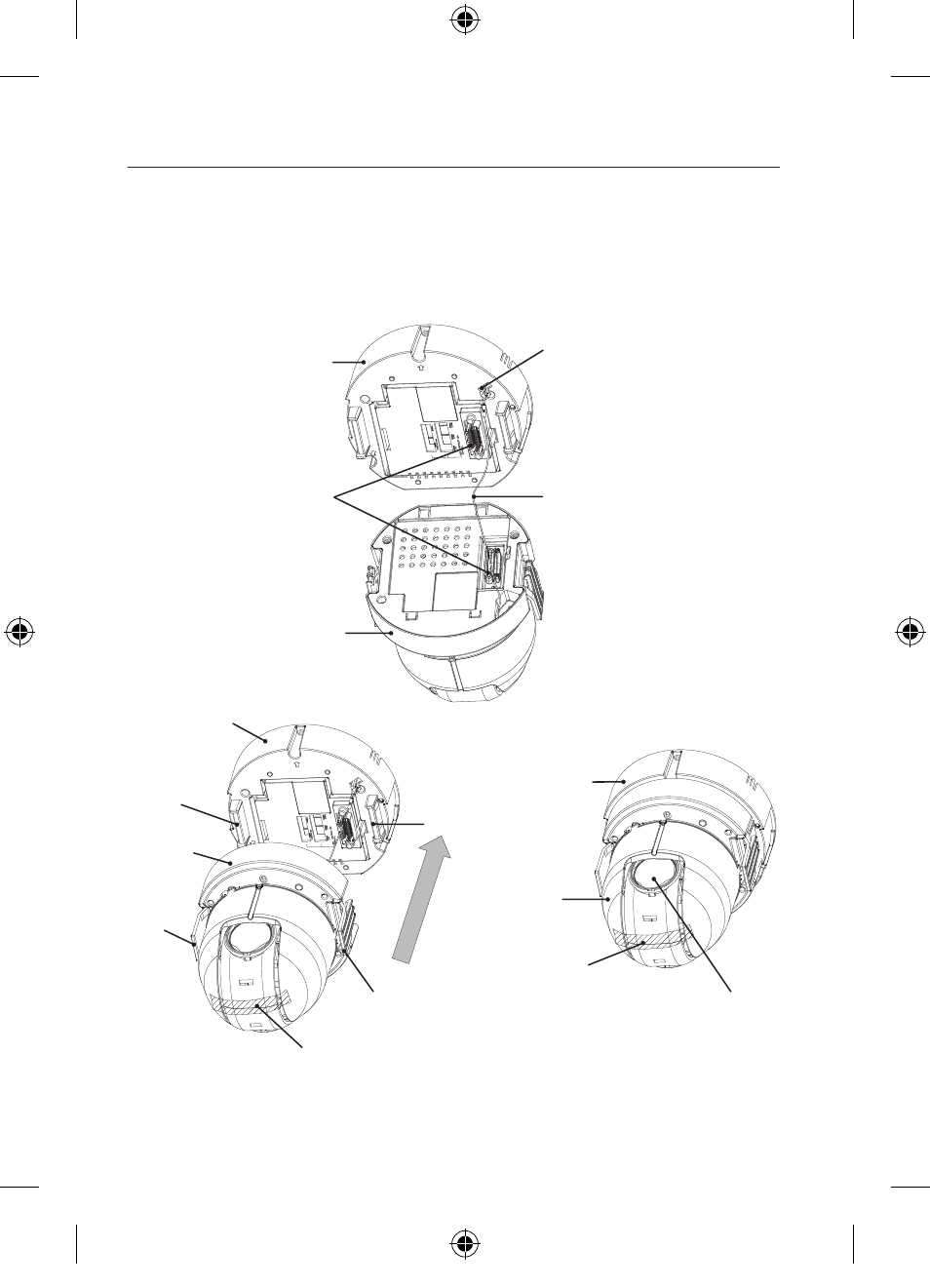

Connect the “SAFETy WIRE” of the “CAmERA” to the “BRACKET WIRE” on the
“FRAmE SET”. Arrange the “22P CONNECTOR” of the “CAmERA” in line with that
of the “ADAPTOR”, push the “HOOK” on either end of the “CAmERA” in the “RACK”
direction of the “FRAmE SET” to secure the two.
Then, ensure that all of the two “HOOKS” “clicks” to fix to the “RACK” properly.
When the installation is completed, remove the “ PROTECTIVE FILM” and
“ PROTECTIVE TAPE” from on the lens.
4.
M 
FRAME SET
22P CONNECTOR
CAMERA
SAFETY WIRE
BRACKET WIRE
FRAME SET
CAMERA
RACK
HOOK
RACK
HOOK
CAMERA
FRAME SET
PROTECTIVE FILM
PROTECTIVE TAPE
PROTECTIVE TAPE
