Samsung SCC-C6455N User Manual
Page 11

English
_11
English

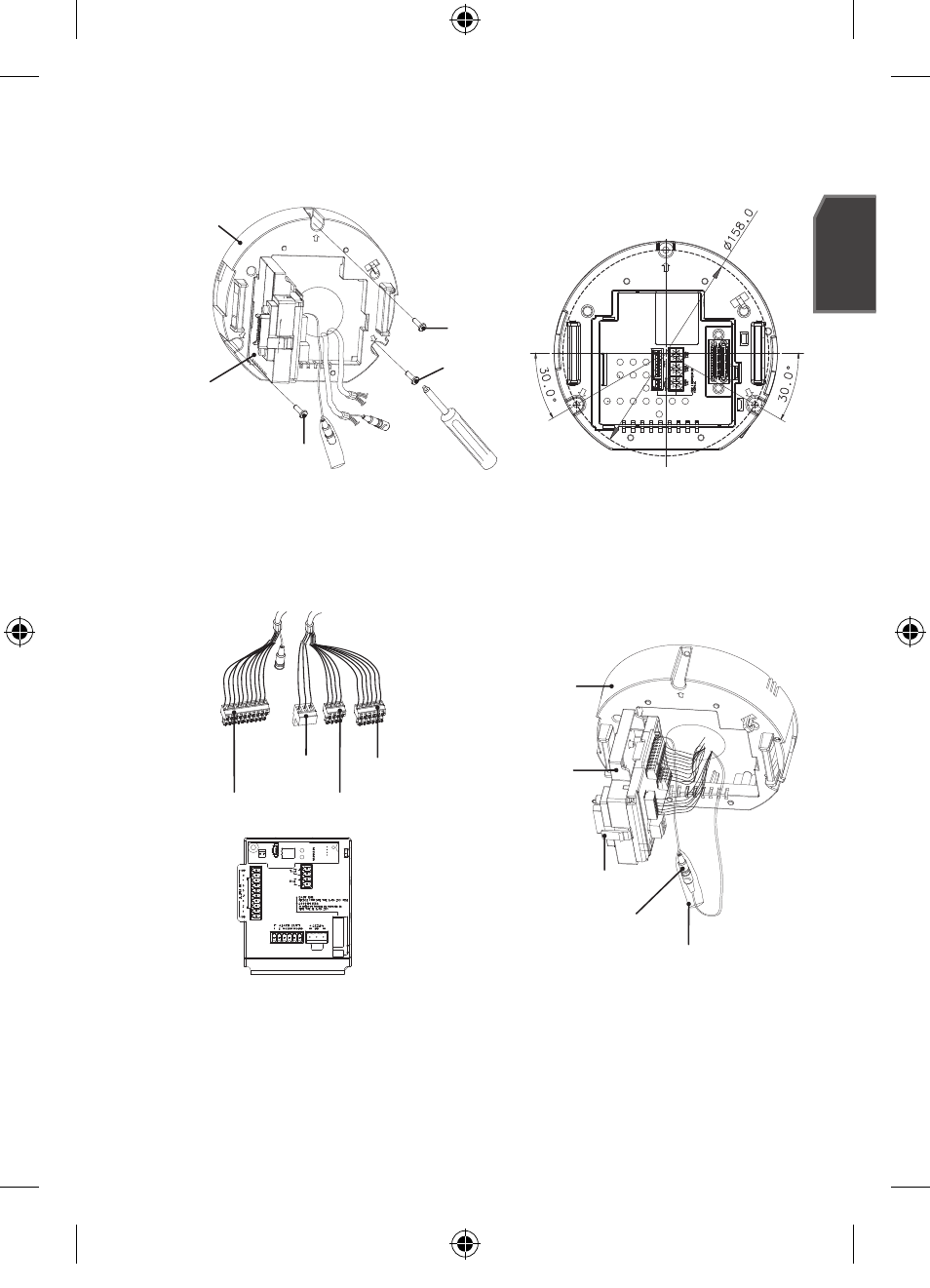

Use the three “SCREWS” to fix the “FRAmE SET” on a “CAmERA” installation
position.
Connect external cables to the “CONNECTORS(ALARm IN, POWER, RS-485,
ALARm OUT)”and connect the “CONNECTOR” to the “ADAPTOR”.
Insert the cable into the “FRAmE SET”, and close the “ADAPTOR”.
Then, wrap the “
BNC JACK” with the “INSULATION TUBE”, and use an insulation
tape to seal up the end of the “
INSULATION TUBE” so that the “BNC JACK” does
not protrude outside of the “
INSULATION TUBE” coating.
For more information about cable connection, refer to “
Connecting the adaptor
cable”. (page 19)
2.
3.
M
FRAME SET
ADAPTOR
SNAP FIT
INSULATION TUBE
BNC JACK
ALARM OUT
ALARM IN
RS-485
POWER INPUT
FRAME SET
ADAPTOR
SCREW
SCREW
SCREW
