SiPTel C01 IP Phone User Manual

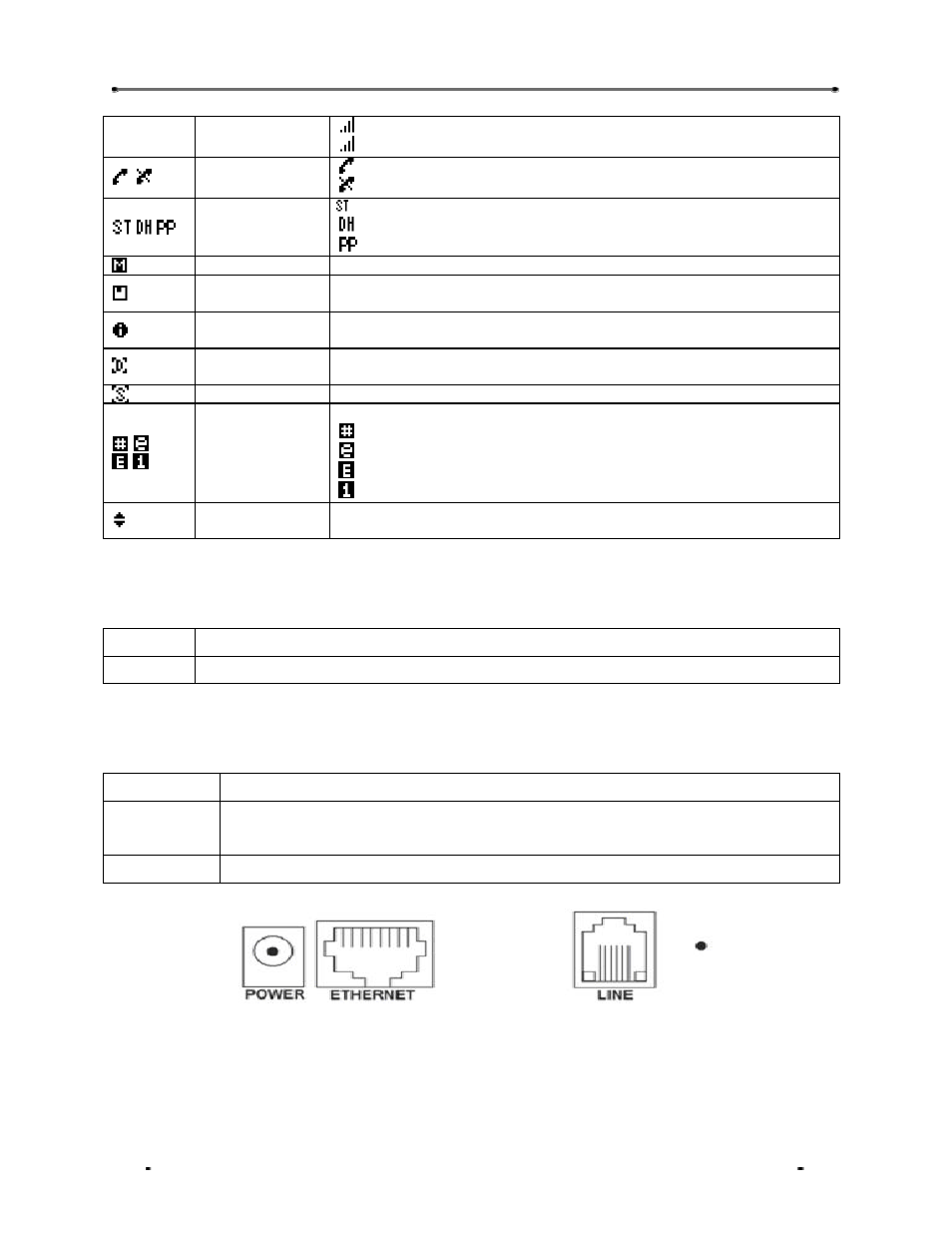

Status Flashing : Trying to find the Gatekeeper.
Constant : Registered with Gatekeeper successfully.
Call status
display : Displayed when the call is connected successfully.
: Displayed when the call isn’t connected.
Kinds of
connection
: Static IP
: DHCP
: PPPoE
Mute Ÿ Displayed when using Mute function.
Flash save
display
Ÿ Displayed when data is being saved in memory
Ethernet
Ÿ Displayed when the SiPTel IP Phone is connected to the Internet
thru Ethernet cable.
Modem
Ÿ Displayed when the SiPTel IP Phone is connected to Internet thru
the Modem.
Summer Time Ÿ Displayed when the summer time is applied.
Entry mode
Ÿ Displays the input mode.
: Symbols
: English Lower Case
: English Capital
: Numeric
Navigation key
Ÿ Displayed only when the navigation key is available for menu
selection.
1.4.3. LED Display
PSTN Ÿ Glows when using PSTN mode.
@ISP Ÿ Glows when using Dial-up connection.
1.4.4. Port Structure
POWER § Use to connect to the power adapter.
ETHERNET § Use to connect to Internet leased line, cable modem, ADSL Modem, or etc. for
internet connection.
LINE § Use to connect to the regular telephone line.
Figure 2) SiPTel IP Phone Rear Panel
