2. checking continuity of fuse on pcb ass'y – Sanyo CH3682 User Manual

Page 52

background image

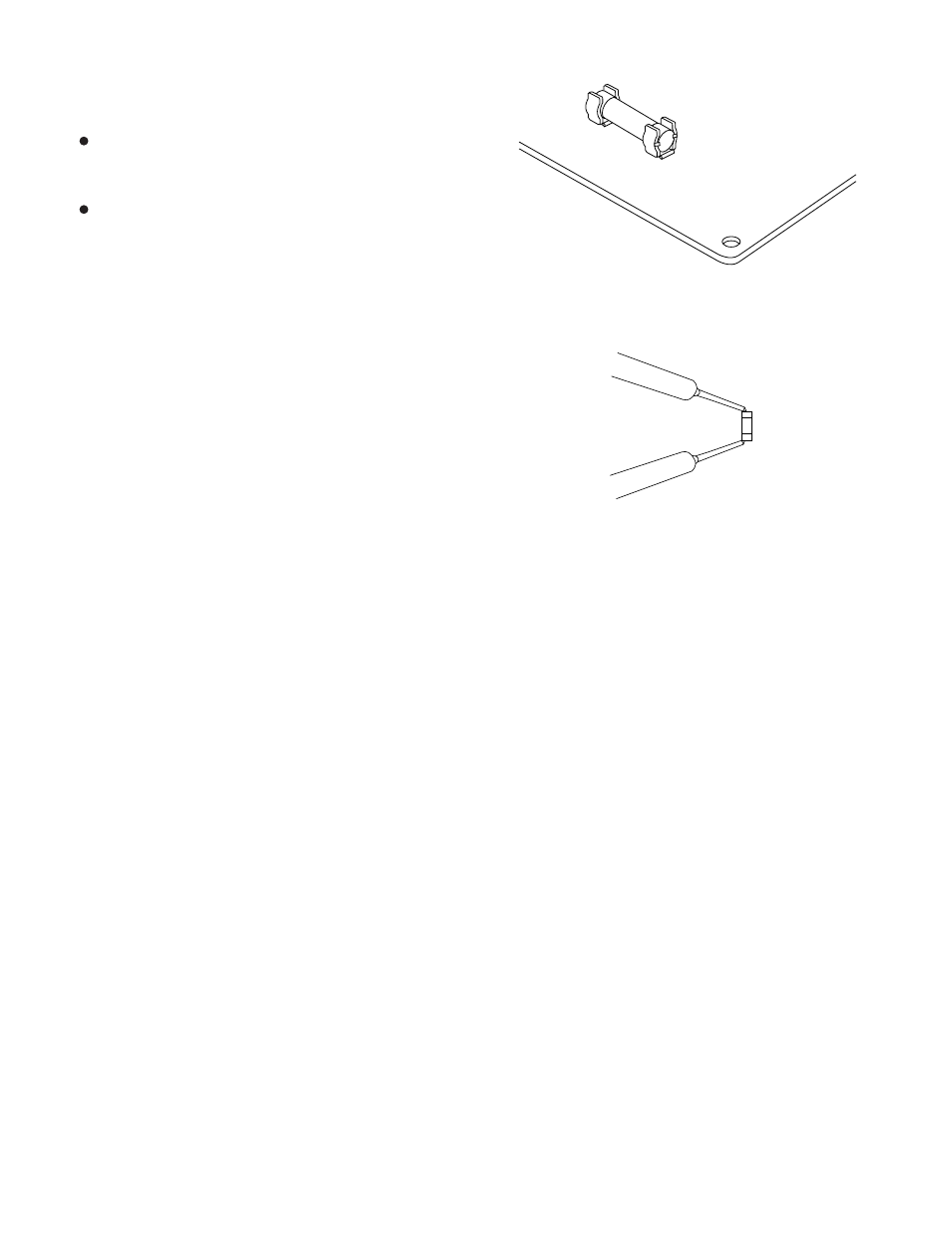

Fuse

PCB Ass'y

Fig. 5

Fig. 6

Fuse

9-2. Checking Continuity of Fuse on

PCB Ass'y

Remove the PCB Ass'y from the electrical

component box. Then pull out the fuse from the PCB

Ass'y. (Fig. 5)
Check for continuity using a multimeter as shown in

Fig. 6.

52
