E-14
Setup & Connections 1
2 To S-video output terminal
2 To video output terminal
1
Projector
VCR,
Laser disc player,
DVD player or
DTV decoder

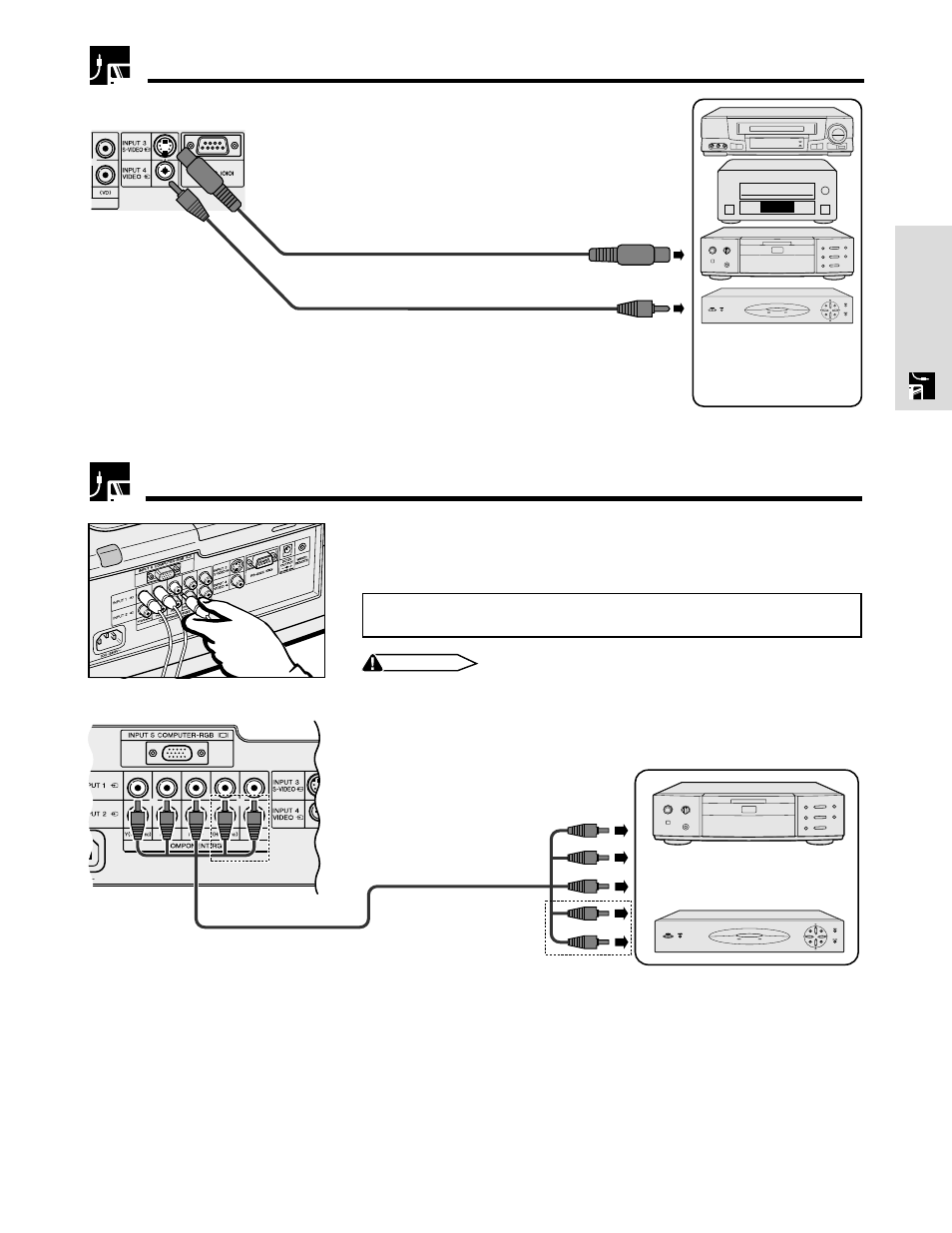

Connecting to Video Equipment
Connecting to a DVD Player and DTV Decoder
*
*
2 To component output
terminals
1
Component cable
(commercially available)
DVD player
or
DTV decoder
1 Connect each RCA connector of a component cable to the corresponding
RCA INPUT 1 or 2 terminals on the projector.
2 Connect the other end of the cable to the corresponding terminals on a DVD
player or DTV decoder.
When connecting this projector to a DVD player or DTV decoder, select
“Component” for “Signal Type” on the GUI menu. (See page 31.)
CAUTION
• Make sure to turn both the projector and the video equipment off, before
connecting.
S-video cable (commercially available)
Video cable (commercially available)
Projector
* The (HD/C sync) and (VD)
terminals may be used depending
on the specifications of the DTV
decoder connected to this
projector. Please refer to the
operation manual of the DTV
decoder for details.
