IMPORTANT: To avoid any noise or damage to the
system when in operation, be sure speaker wires or
other objects are not in contact with the back of the
SpeakerTile surface.
3. Remove the protective cardboard from the front of the
SpeakerTile.
4. Hold the SpeakerTile with the fl at front surface facing
down and carefully insert it obliquely through the ceiling
grid until is passes entirely through, as shown in
Figure 21.
5. Maneuver the SpeakerTile until it is aligned and
centered to the grid. As shown in Figure 22, the SpeakerTile
will rest on the ceiling grid by its diaphragm.
6. Complete the Backbox installation by diagonally
inserting the removed ceiling tile back into the ceiling
through an adjacent opening. Lay the ceiling tile on the
ledge and tabs at the rear of the backbox. Accessing from
adjoining openings, secure the tile with bailing wire or
#6d nails, as shown in
Figure 23.
If a situation should arise which cannot be resolved
through the information contained in these installation
instructions, please contact Sound Advance, Customer
Support Services at (800) 592-4644, Monday-Friday,
8 AM to 5 PM Pacifi c Time.

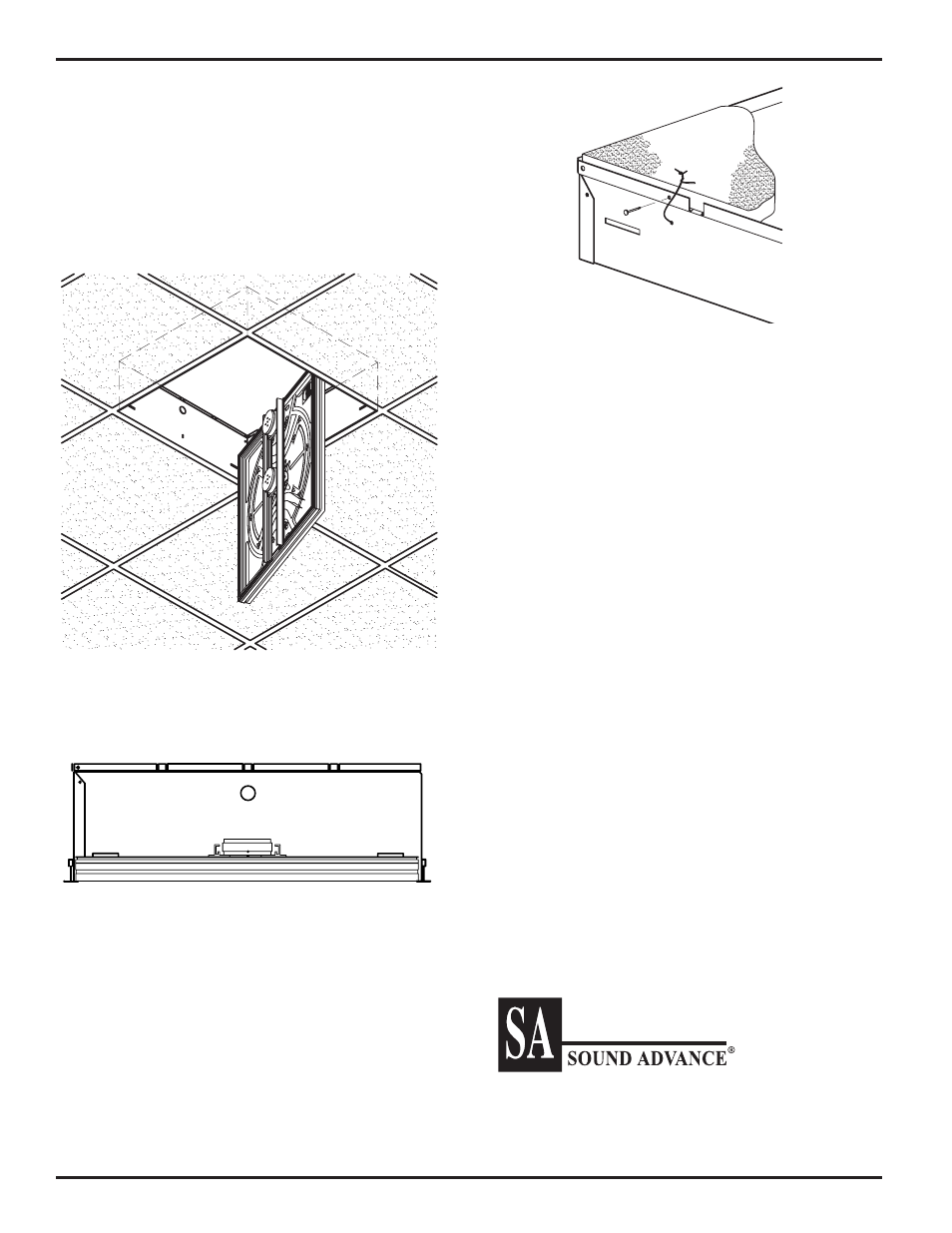

Figure 21
