Page 1 ST2432D Series 960.066 Rev # 1
INSTALLATION INSTRUCTIONS
ST2432D Series SpeakerTile ®
and Accessories

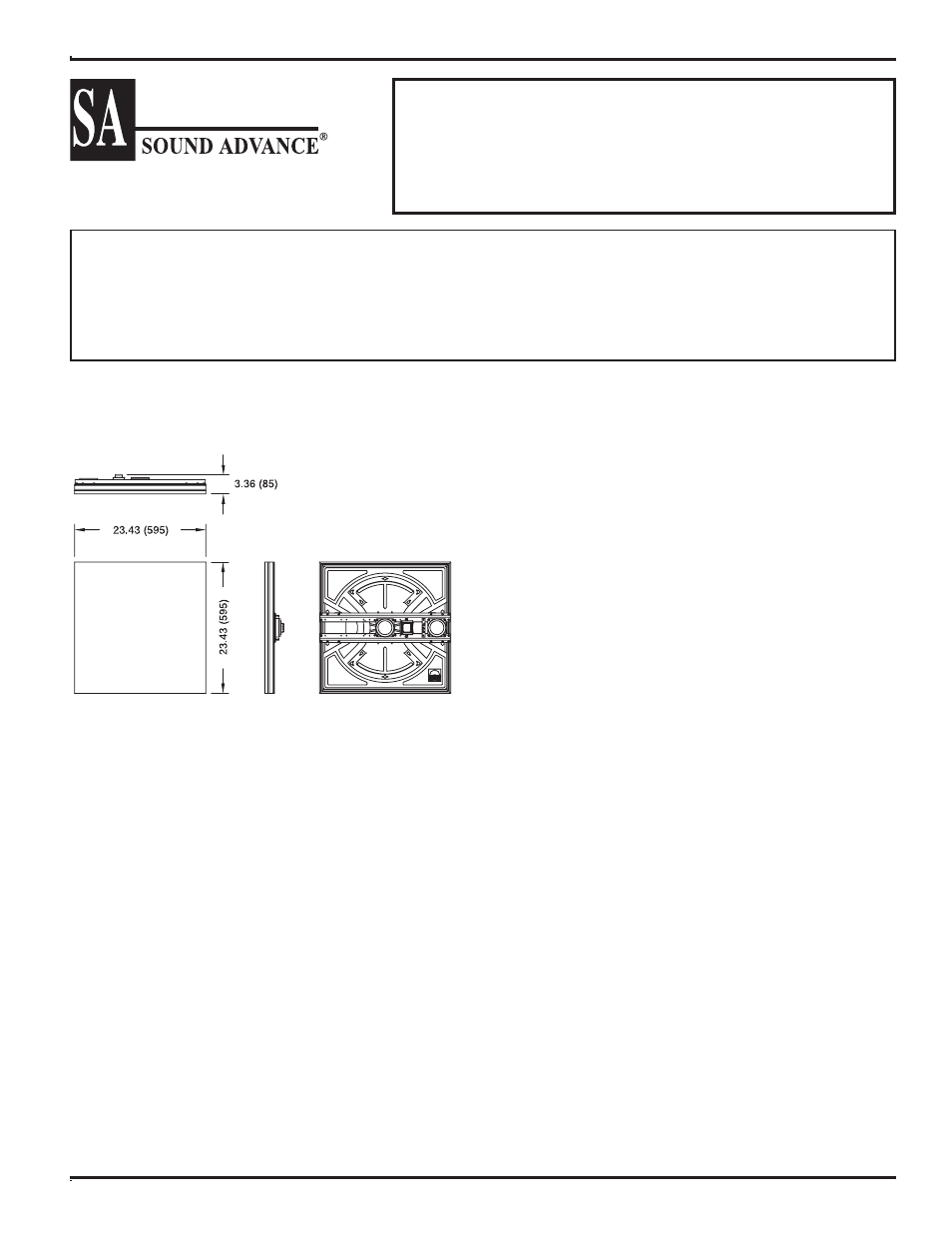

DIMENSIONS
All dimensions are in inches (mm)
PRODUCT WEIGHT
ST2432D Series: 9.8 lbs. (4.45 kg.)
RECOMMENDED MOUNTING LOCATIONS
S o u n d A d va n c e p r o d u c t s p r ov i d e o u t s t a n d i n g
performance and economic advantages when installed
in environments with an ambient noise level at or below
75dBA, where the speakers can be placed between 8 and
18 feet above the fl oor, and which are large enough to
accommodate at least 4 or more conventional loudspeak-
ers. When system design requirements indicate speaker to
speaker distances of greater than 40.0 ft., please contact
the factory for additional technical information on such
applications.
Sound Advance recommends mounting the ST2432D in
9/16” and 15/16” T-Bar Suspended Ceiling Systems
I M P O RTA N T N OT E : T h e S T 2 4 3 2 D - s e r i e s
SpeakerTile is designed to be installed in standard
2’ x 2’ suspended ceiling systems. It is suitable
for 9/16” and 15/16” ceiling grids, fl ush (lay-in)
or non-flush (tegular) mounting. However, if
the loudspeaker is to be installed on a tegular
(non-fl ush) mounting 15/16” ceiling grid, in order
to drop below the ceiling grid the front surface of
the diaphragm must be factory-routed.
Sound Advance will make every effort to match
the SpeakerTile to the customer’s ceiling tiles.
However, our standard tegular routing is a 90
degree angle cut. We may not be able to match
beveled, chamfered or angled tegular tiles.
FACTORY-PROVIDED FINISH
The Sound Advance ST2432D-Series SpeakerTiles are
designed to be easily mounted into T-Bar suspended
ceiling systems, completely replacing a standard 2’ x 2’
ceiling tile.
A variety of 3-dimensional and textured patterns are
available, providing a match to most suspended ceiling
tile patterns.
The ST2432D can optionally be covered with any water-
soluble fi nish, such as latex paint, or be covered with light
wallpaper, fabrics and selected texture coats*, further
enhancing the SpeakerTile’s ability to blend invisibly with
almost any interior design choice.
[* Please contact the factory before applying any
textured coating, light wallpaper or fabrics to Sound
Advance products]
AVAILABLE MODELS
ST2432D: 70.7V/8-ohm, Dual-Driver SpeakerTile
ST2432D#: Same as ST2432D, with factory-applied
3-dimensional or textured pattern
MODEL: ST2432D Series
SUPPLIED ACCESSORIES: Tegular Brackets
RECOMMENDED PBB2.0 Backbox
ACCESSORIES: Safety Strap
ECS2432D Enclosure
Compensation Module
251.004-1
