Sonance Sub 8-100 - Manual

Sonance Subwoofers
Cabinet Subwoofers
Specifications:
Sub 12-250
Woofer: 12" (305mm) Anodized aluminum cone,
rubber surround
Frequency Response: 22Hz - 250Hz ±3dB
Amplifier Power: 250 Watts
Inputs: Line-level and speaker-level
Outputs: High-pass filtered line-level and speaker level
Grille Material: Black cloth
Cabinet Finish: Gloss black
Adjustments: Front-accessible level, crossover, phase
and bypass
Dimensions (W x H x D): 15" x 18" x 16" (381mm x 457mm x 406mm)
Shipping Weight 70lbs. (31.5kg)
Sub 10-150
Woofer: 10" (254mm) Anodized aluminum cone,
rubber surround
Frequency Response: 28Hz - 250Hz ±3dB
Amplifier: 150 Watts
Inputs: Line-level and speaker-level
Outputs: High-pass filtered line-level and speaker-level
Grille Material: Black cloth
Cabinet Finish: Gloss black
Adjustments: Front-accessible level, crossover, phase
and bypass
Dimensions (W x H x D): 14" x 16" x 14" (355mm x 406mm x 355mm)
Shipping Weight: 60lbs. (27kg)
Sub 8-100
Woofer: 8" (203mm) Anodized aluminum cone,
rubber surround
Frequency Response: 35Hz - 250Hz ±3dB
Amplifier: 100 Watts
Inputs: Line-level and speaker-level
Outputs: High-pass filtered line-level and speaker-level
Grille Material: Black cloth
Cabinet Finish: Gloss black
Adjustments: Front-accessible level, crossover, phase
and bypass
Dimensions (W x H x D): 12" x 14" x 12" (305mm x 355mm x 305mm)
Shipping Weight: 40lbs. (18kg)
For 2006 Sonance of fers three completely new
subwoofers that deliver power ful, low-distor tion
bass in any room. Anodized aluminum woofer cones
combine with heavily-braced sealed enclosures to
deliver room-shaking bass, yet cabinet size is kept
to a minimum, maximizing installation options.
The front-mounted controls and recess-mounted
amplifiers allow these woofers to be tucked-away
under shelves or installed flush with walls.
Features:
• Three sizes compliment a wide variety of systems
and rooms.
• Anodized aluminum woofer cones have very low
moving mass and excellent rigidity.
• Extra long-throw voice coils allow linear excursion
for low-distortion performance up to maximum
amplifier power.
• Sealed, heavily-braced enclosures deliver tight,
well-defined bass performance.
• Exclusive ½" MDF / ½" particle board laminate
cabinet material offers superior stiffness and
resonance damping.
• Front-mounted controls allow easy access.
• Recessed amplifier and flush-mounted grille
allow installation in tight spaces.
• Auto-on operation.
©2006 Sonance. All rights reserved. Sonance is a registered trademark of Dana Innovations.
Due to continuous product improvement, all features and specifications are subject to change without notice.
For the latest Sonance product specification information visit our website:
www.sonance.com
212 Avenida Fabricante
San Clemente, CA 92672-7531 USA
(800) 582-7777 or (949) 492-7777
FAX: (949) 361-5151
Technical Suppor t: (800) 582-0772
WWW.SONANCE.COM
12/06

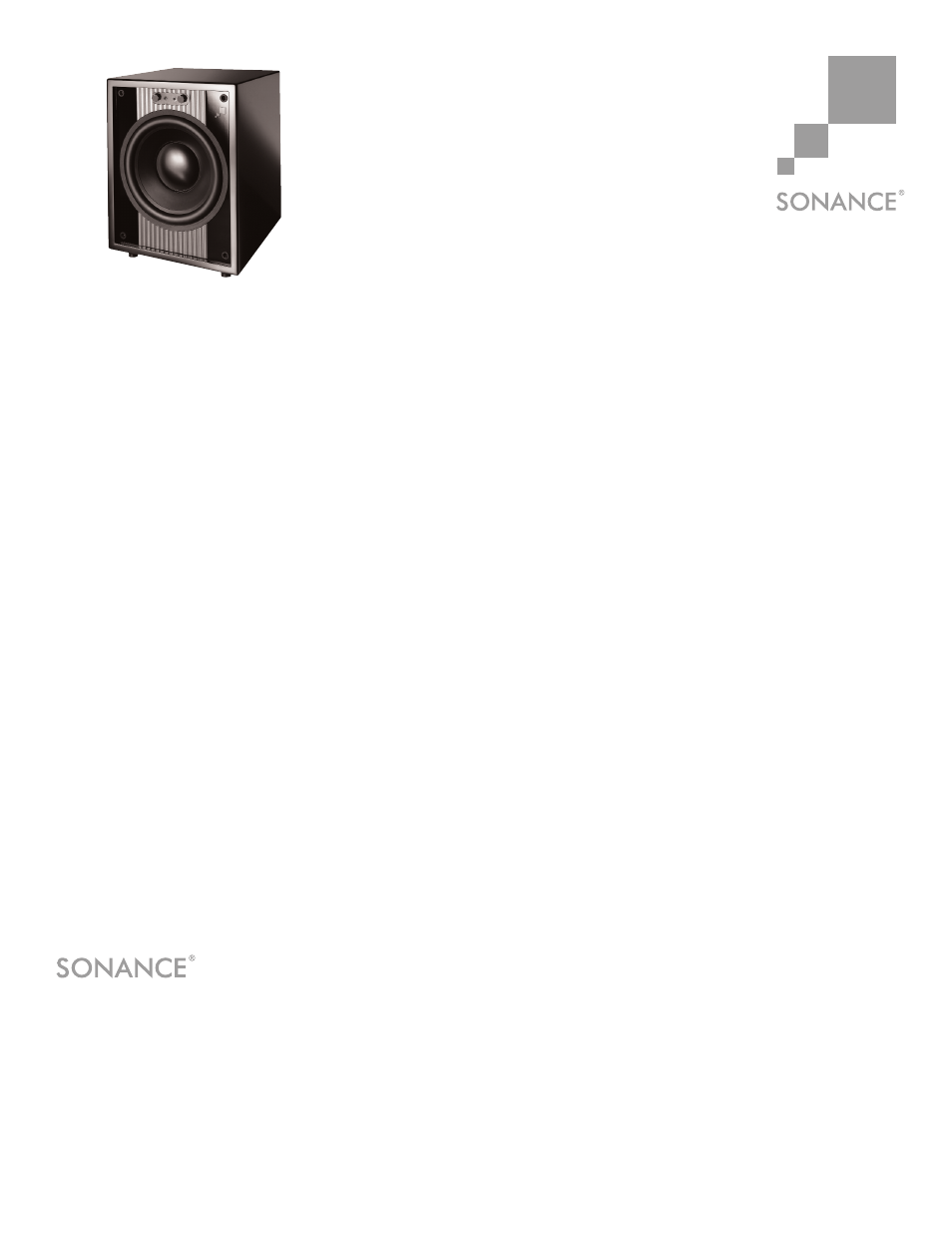

Sub 12-250
