Sonance Merlot

®

Series

MR-Series In-Ceiling Speakers

Specifications:

Sonance Merlot 422

MR

Tweeter:

¾" (19mm) silk dome, pivoting

Woofer:

4 ½ " ( 1 1 4 m m ) P o l y p r o p y l e n e
cone with a rubber surround

Frequency Response:

60Hz – 20kHz ±3dB

Impedance:

8 ohms nominal; 6 ohms minimum

Power Handling:

5 watts minimum;
60 watts maximum

Sensitivity:

90dB (2.83V/1 meter)

Grille Material:

Per forated aluminum

Dimensions (Dia x D):

6

7

/

8

" x 3½" (175mm x 89mm)

Cutout Diameter:

5

7

/

8

" (149mm)

Shipping Weight:

6 lbs (2.8kg) per pair

Sonance Merlot 421

MR

Tweeter:

¾" (19mm) silk dome

Woofer:

4 ½ " ( 1 1 4 m m ) P o l y p r o p y l e n e
cone with a rubber surround

Frequency Response:

70Hz – 20kHz ±3dB

Impedance:

8 ohms nominal: 6 ohms minimum

Power Handling:

5 watts minimum;
50 watts maximum

Sensitivity:

89dB (2.83V/1 meter)

Grille Material:

Per forated aluminum

Dimensions (Dia x D):

6

7

/

8

" x 3½" (175mm x 89mm)

Cutout Diameter:

5

7

/

8

" (149mm)

Shipping Weight:

6 lbs (2.8kg) per pair

(continued on back)

T h e t o t a l l y - r e d e s i g n e d S o n a n c e M e r l o t

®

MR-Series in-ceiling speakers bring a new level
of musical performance to smaller living spaces.
These new speakers feature a small footprint
and shallow depth that significantly increase
installation options for newer multi-dwelling
unit buildings as well as ‘space-challenged’
areas (bathrooms, hallways, etc.) in larger
homes. They are also ideal for the smaller living
spaces found in many homes overseas.

Ideal for both multi-channel home theater and
s t e r e o m u s i c a p p l i c a t i o n s , t h e n e w M e r l o t
MR-series incorporates high-quality driver materials
a n d p r e c i s i o n e n g i n e e r i n g t h a t d e l i v e r
star tling musicality from speakers so small.

Sonance Merlot MR-series in-ceiling speakers
b r i n g h i g h - q u a l i t y e n t e r t a i n m e n t t o l i f e
a n y w h e r e i n t h e h o m e w h i l e ef for tlessly
integrating into almost any lifestyle.

Features:

• Ideal for use in multi-channel home theater

systems and stereo music systems.

• Advanced woofer cone materials produce

robust, low-distortion bass in a very small

footprint that increases installation options.

• Pivoting tweeter directs the sound at listeners

for clear sound and improved stereo imaging

even when speaker placement options are

limited (422

MR

).

• Merlot 421

SSMR

features Single Stereo

Technology

®

— reproducing left & right stereo

channels from a single speaker — ideal for

areas where space is extremely limited.

• The RotoLock

®

mounting system makes

installation quick and easy.

• Exclusive new FastMount

®

tabs hold speaker in

the mounting hole during installation, allowing

installer to let go of the speaker to pick-up

tools or other items.

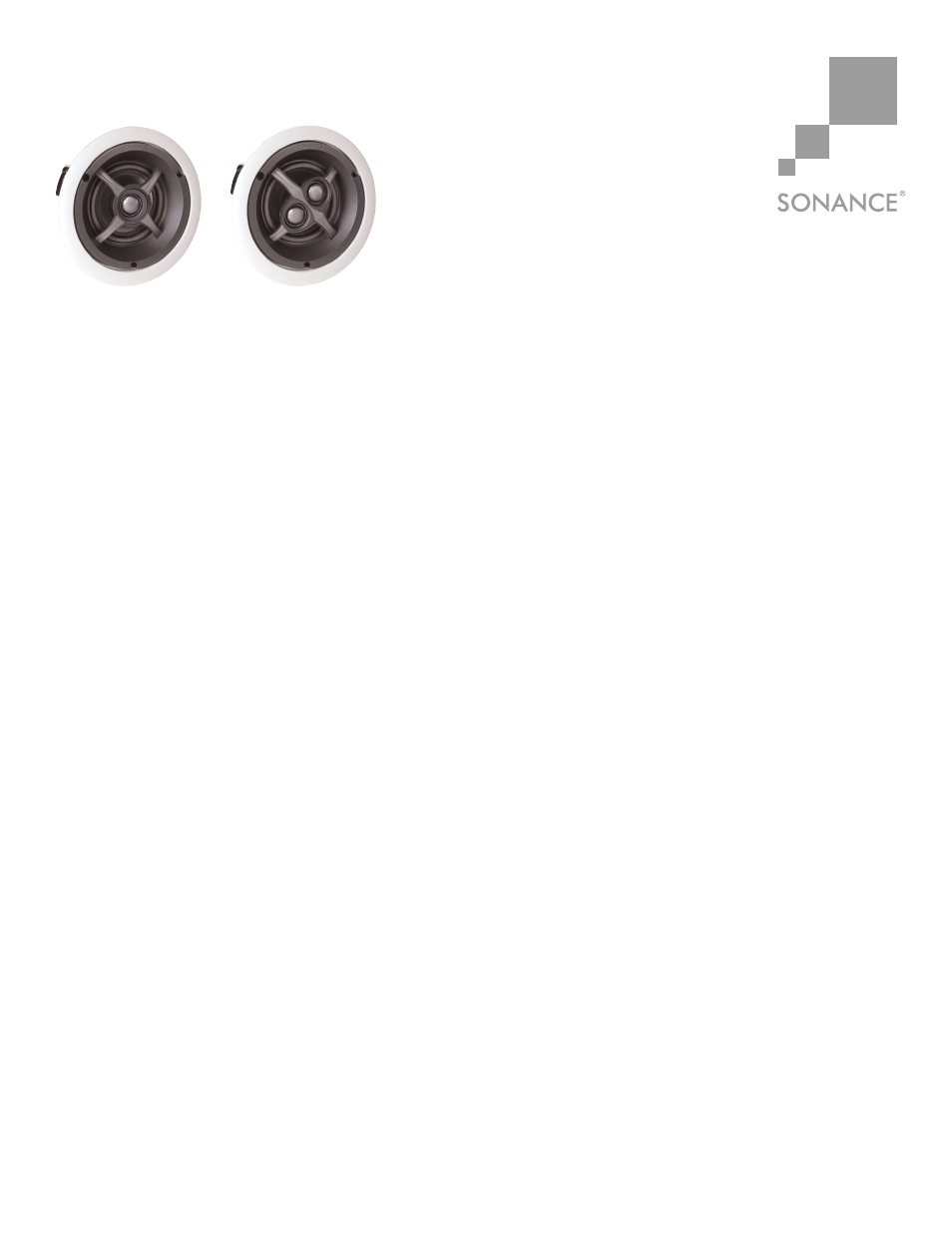

Sonance Merlot

®

422

MR

(left); 421

SSMR

(right)
