Assembly, 512 x2, 513 x6 – Smooth Fitness Smooth 9.25x User Manual
Page 34
34
SMOOTH AGILE TRAINER
ASSEMBLY

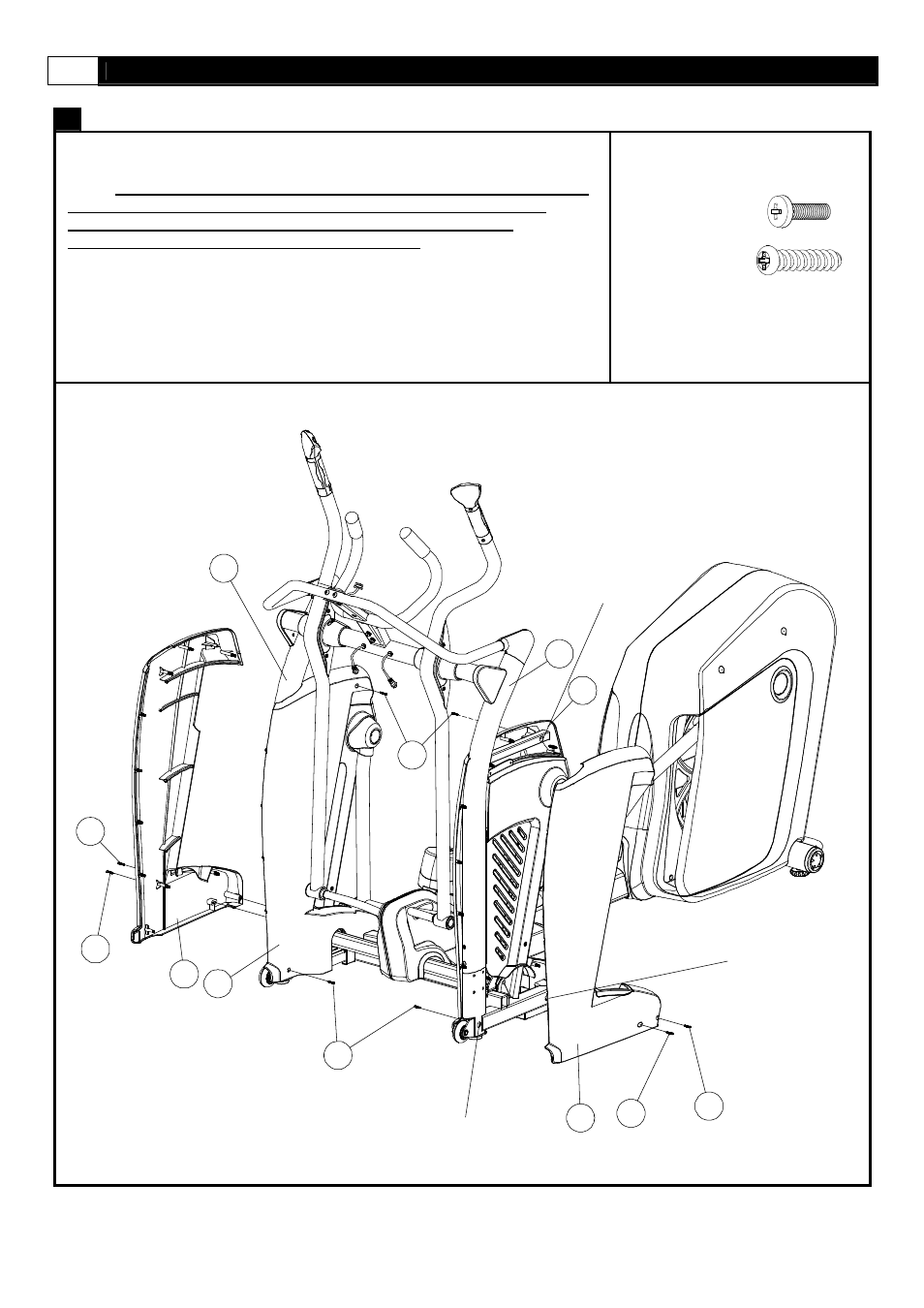

STEP 15: Assemble the Front Side Panels
NOTE: THERE ARE 3 HOLES IN THE FRAME COMPONENTS THROUGH
WHICH THE INSIDE AND OUTSIDE PLASTIC PANELS CONNECT
TO EACHOTHER. USE THESE HOLES AS REFERENCES TO
CORRECTLY POSITION THE PLASTIC PANELS.
(A) Assemble the Front Side Panel-LL (709) and Front Side Panel-LR (710)
to the left Upright and secure using one 4 x 12 Screw (512) and three
4 x 19mm Screws (513).
(B) Repeat the above procedure to assemble the right side.
512 X2
513 X6
Reference hole1
Reference hole3
Reference hole2
513
513
110
111
710
513
712
711
512
513
512
709
