503 x2, 717 x2, 718 x2 – Smooth Fitness Smooth 9.25x User Manual
Page 25
www.smoothfitness.com
25
ASSEMBLY

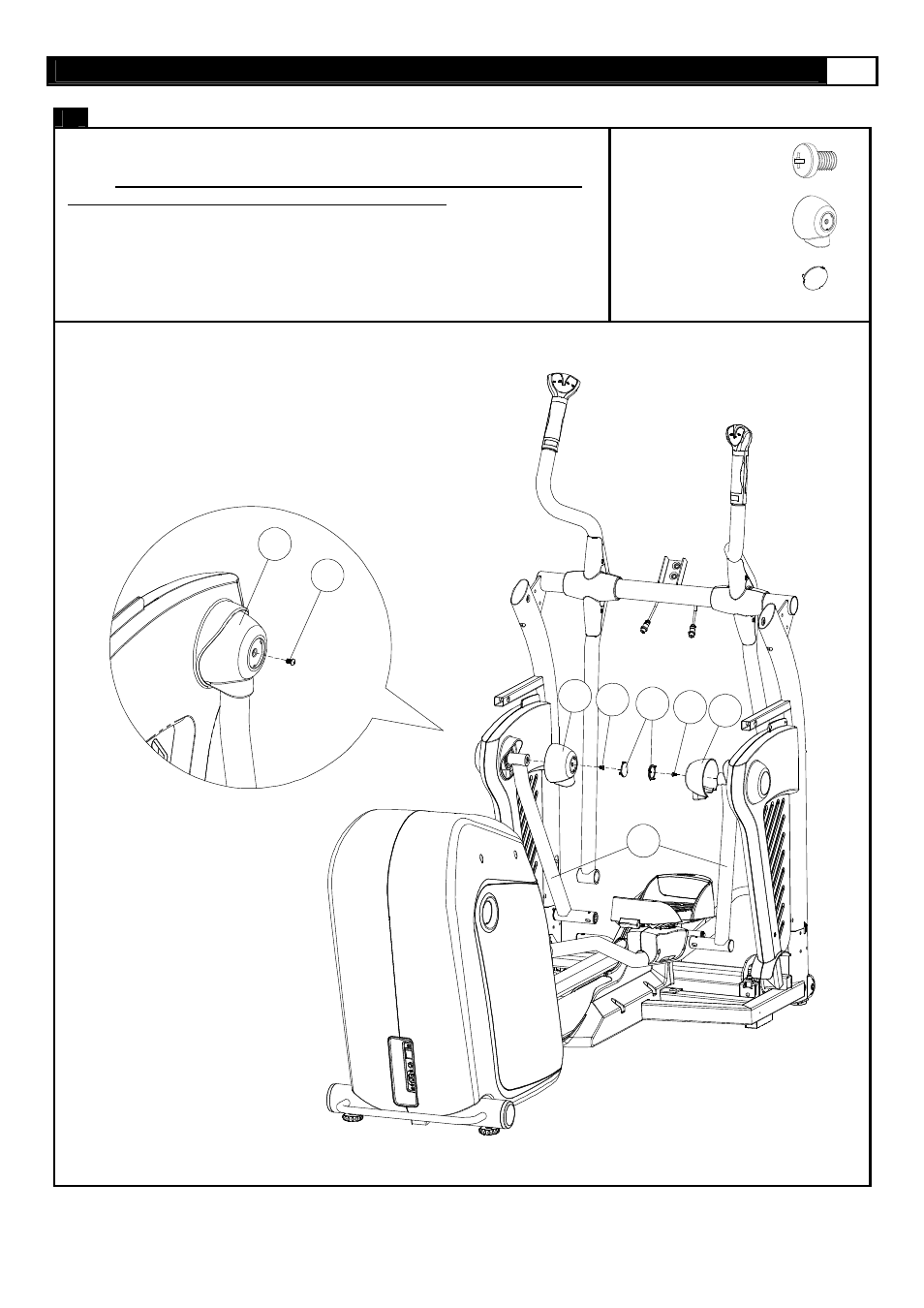

STEP 6: Assemble the Pivot Cap
NOTE: ALIGN THE 3 SNAP FIT TABS ON THE PEDAL SIDE CAPS (718)
WITH THE 3 SPAP FIT ON THE PEDAL CAPS (717).
(A) Assemble the Pivot Cap (717) to the Pedal Swing Arm (120) and secure
using the M5 x 8mm Screw (503).
(B) Press the Pedal Side Cap (718) to the Pedal Cap (717).
503 X2
717 X2
718 X2
717
503
120
503
503
717
717
718
