ASSEMBLY

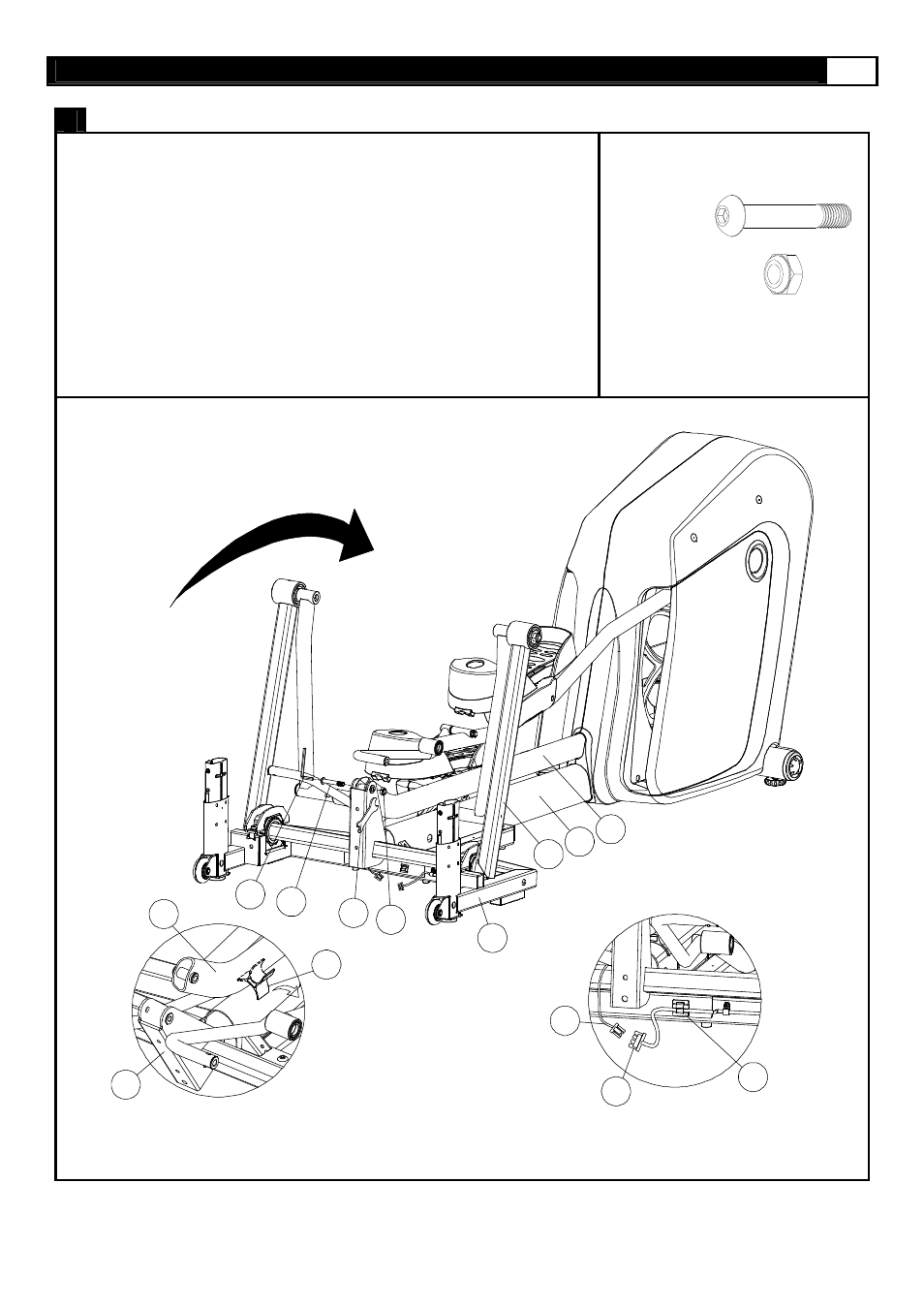

STEP 2: Connect the Incline Transmission Tube
(A) Remove the Incline Transmission Tube Holder (322), and discard.
(B) Rotate the Incline Frame (114) to align the bolt holes with the mating bolt
holes in the Incline Transmission Tube-Front (115).
(C) Assemble the Incline Transmission Tube-Front (115) to the Base Frame
(104) with M10 x 62mm Allen Head Bolt (508) and M10 Nylon Nut (511)
by 6mm Allen Key (D) and Wrench (F).
(D) Connect the 8Pin Power Wire-Lower (618) to the 8Pin Power Wire
-Bottom (619) , and fixed the wire into the Self-adhesive Wire Clip (244).
508 X1
511 X1
508
511
104
115
105
114
F
D
332
115
114
619
618
244
FIG1
FIG2
