51 50
Stereo Connections
You can enjoy stereo sound when watching movies and TV shows by
connecting your DVD-VCR to your home stereo system or stereo
TV.
1 Connect DVD-VCR to Stereo
Connect RCA cables from the Line Out Left & Right Audio jacks on
the back panel of the DVD-VCR to the Auxiliary Inputs on your
stereo receiver. If you are using a stereo television, connect the
Video Output as well.
2 Set Stereo to Auxiliary Mode
Set your stereo receiver or television to “Aux” or “Tape,” whichever
selects the line input for your particular device.
3 Play a Tape
Insert a DVD or Hi-Fi stereo videotape in your system and adjust the
volume on your stereo receiver or television. You should hear the
audio through your stereo speakers.
• If you still do not hear stereo sound after inserting Hi-Fi stereo
video tape, press the Audio button until “Hi-Fi” appears on the
on-screen display.
The S-Video or Component Video connection is only for the DVD
player. The tuner and VCR will still be viewed through the RF or
line inputs.
You must follow the “Alt Video Out” instructions on page 31 to
activate your alternative (S-Video, Component) video selection.
You can choose EITHER S-Video OR Component, but NOT both.
If your television is equipped with S-Video or Component Video
inputs, you can enjoy superior video quality when watching DVDs
with your DVD-VCR.
1 Connect S-VIDEO OUTto TV
Connect an S-Video cable from the S-VIDEO OUTon the back
panel of the DVD-VCR to the S-Video Input on your television.
2 Connect Component Video Out to TV
Connect a component video cable from the COMPONENT VIDEO
OUT(Y, Pb, Pr) on the back panel of the DVD-VCR to the
Component Video Input on your television.
3 Connect Audio Out (DVD only)
Connect RCA audio cables from the Left/Right Line Out jacks on
the back panel of the DVD/VCR to the Left/Right Audio Line In
jacks on your television.
• You must use these Line Out jacks when connecting the DVD-
VCR to your TV with the S-Video or Component Video Output.
• Please refer to “Alt Video Out” on page 31 to activate your
connection.

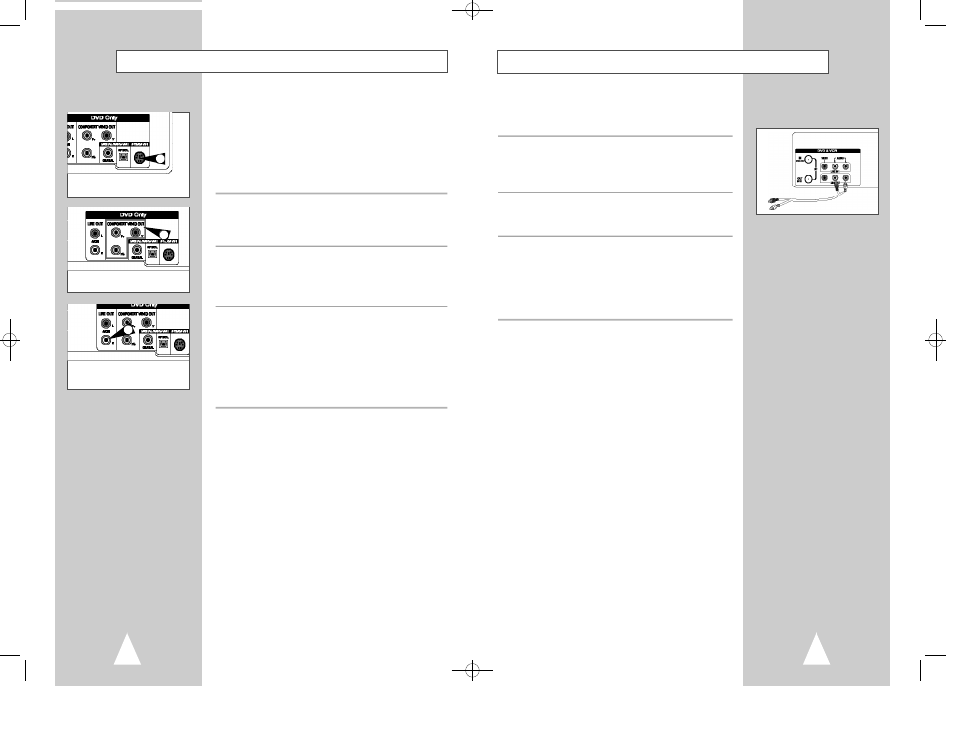

S-Video/Component Video Connections (for DVD)
To S-Video Input on Your TV
To Component Video Input
on Your TV
To Left/Right Audio Inputs
on Your TV
1
3
2
