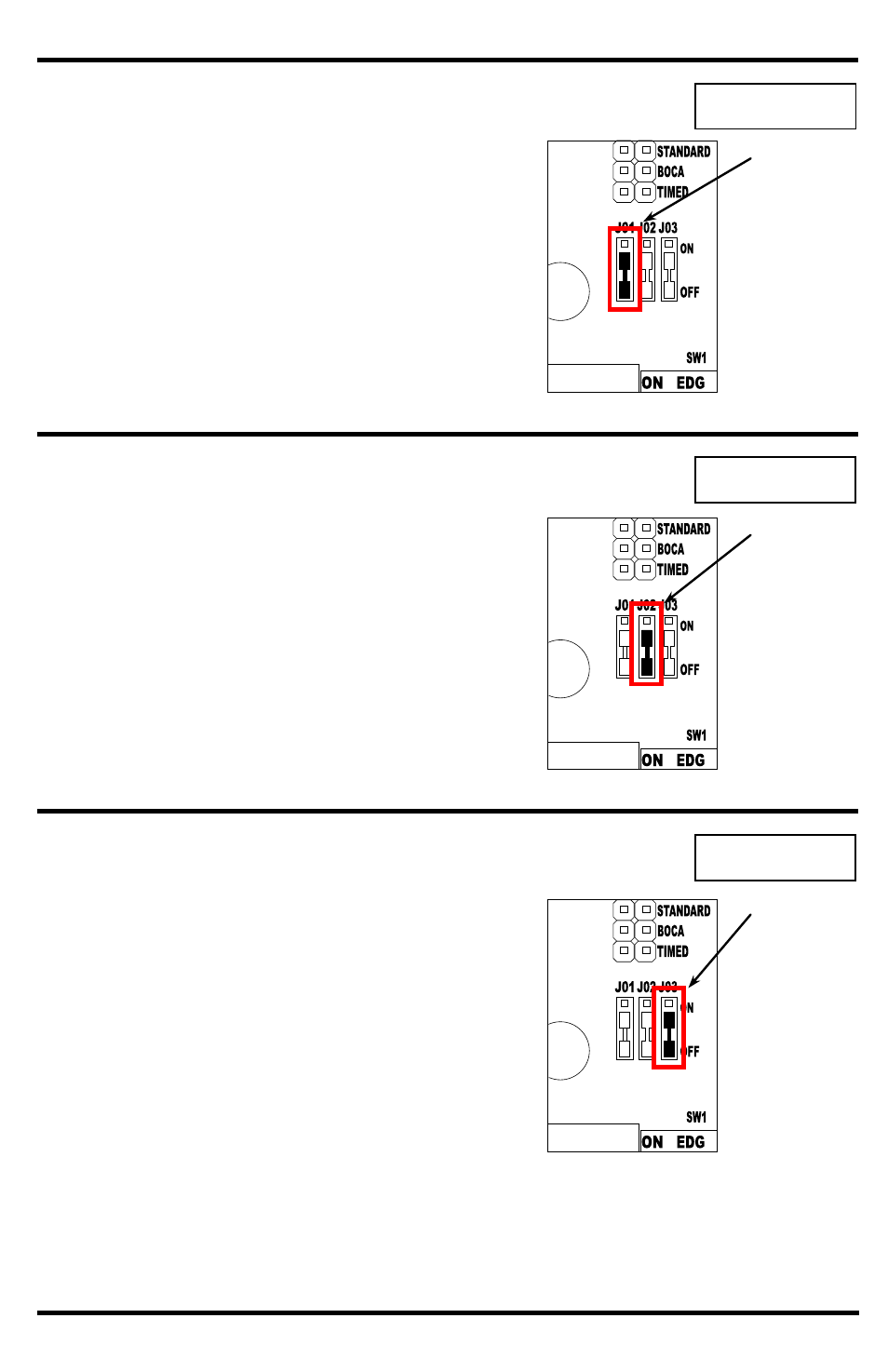

Lock Status Jumper:
 When the lock status jumper is ON, the lock status
input will detect whether the door is closed and will
trigger relock functions.
 The lock status input may be bypassed in order to
keep the door unlocked for an indefinite period of time
without activating the remote alarm output.
 To bypass the lock status input, set jumper 1 to OFF.
 The lock status input must be ON for BOCA Mode
(See pg. 5, Relock Modes).
Jumper 1
Jumper 2
Jumper 3
Default: OFF
Default: OFF
 The SA-025EQ is equipped with a 500mA@12VDC
transistor ground output for a local alarm, typically an
audible or visual device.
 The local alarm output can be set for steady or
pulsing. When set ON, the local alarm pulses during
the pre-delay, gradually pulsing faster until the end of
the pre-delay time. The local alarm will continue
signaling steady 5 seconds after the lock has been
released. When set OFF, the local alarm is steady
during the pre-delay time and for 5 seconds after the
lock has been released.
 LED 4 is on when the local alarm output is active.
 The local alarm signals when the pre-delay bypass
is used (see pg. 9).
 To set the local alarm output type ON (steady) or
OFF (pulsing), use jumper 3 on the right side of the
circuit board.
Local Alarm Output Type Jumper:
Security Mode Jumper:
 To activate security mode, set jumper 2 to ON.
 In security mode, after the initiate device (such as a
push-to-exit bar) has been triggered and the
pre-delay timer has ended, the lock will remain active
until the initiate device has been triggered a second
time.
 When security mode is OFF, the initiate device must
only be activated once.
Default: OFF
