ENFORCER Delayed Egress Timer
SECO-LARM U.S.A., Inc 3 SECO-LARM U.S.A., Inc.
33 3

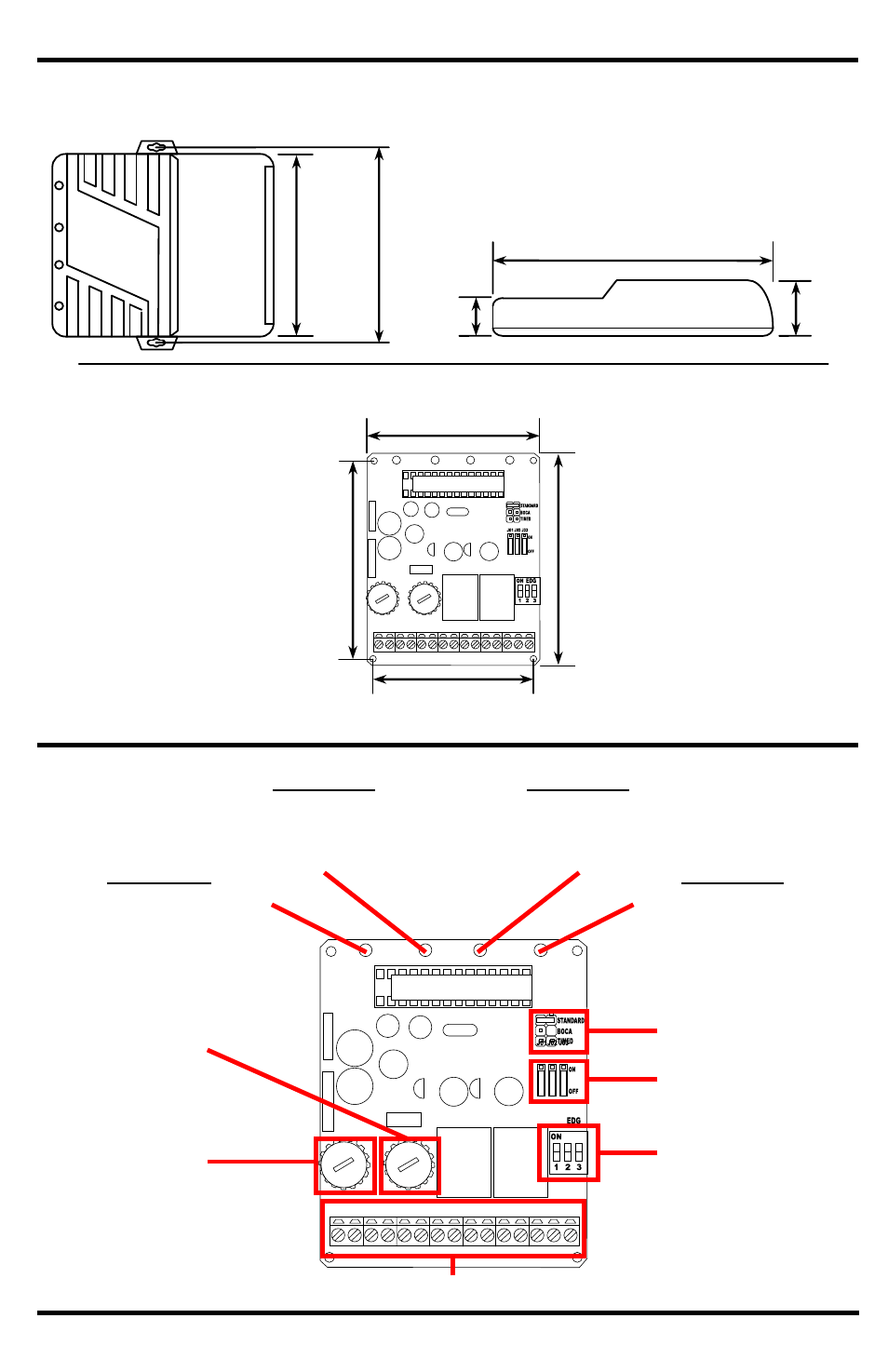

Dimensions:
Overview:
Housing
Timer module only
*Normally energized.
Relock mode jumpers
(see pg. 5)
Jumpers (see pg. 7)
DIP Switch for
Power-up mode
& Nuisance delay
(see pg. 6)
Pre-delay timer
potentiometer
(see pg. 6)
Post-delay timer
potentiometer
(see pg. 6)
Terminal block (see pg. 4)
LED 1 (Blue):
If ON, the SA-025EQ
is being powered
(see pg. 9)
LED 2 (Red):
If ON, the lock
relay is energized*
(see pg. 8)
LED 3 (Red):
If ON, the remote alarm
relay is energized*
(see pg. 8)
LED 4 (Red):
If ON, the local alarm
is being triggered
(see pg. 8)
3 1 /
4
”
(83mm)
7 /
8
”
(22mm)
1 1 /
8
”
(28mm)
2 11 /
16
”
(68mm)
3”
(76mm)
3 1 /
16
” (78mm)
P.C. board
2 1 /
2
” (63mm)
P.C. board
2 1 /
4
” (57mm)
Mounting holes
2 13 /
16
” (72mm)
Mounting holes
