10 US

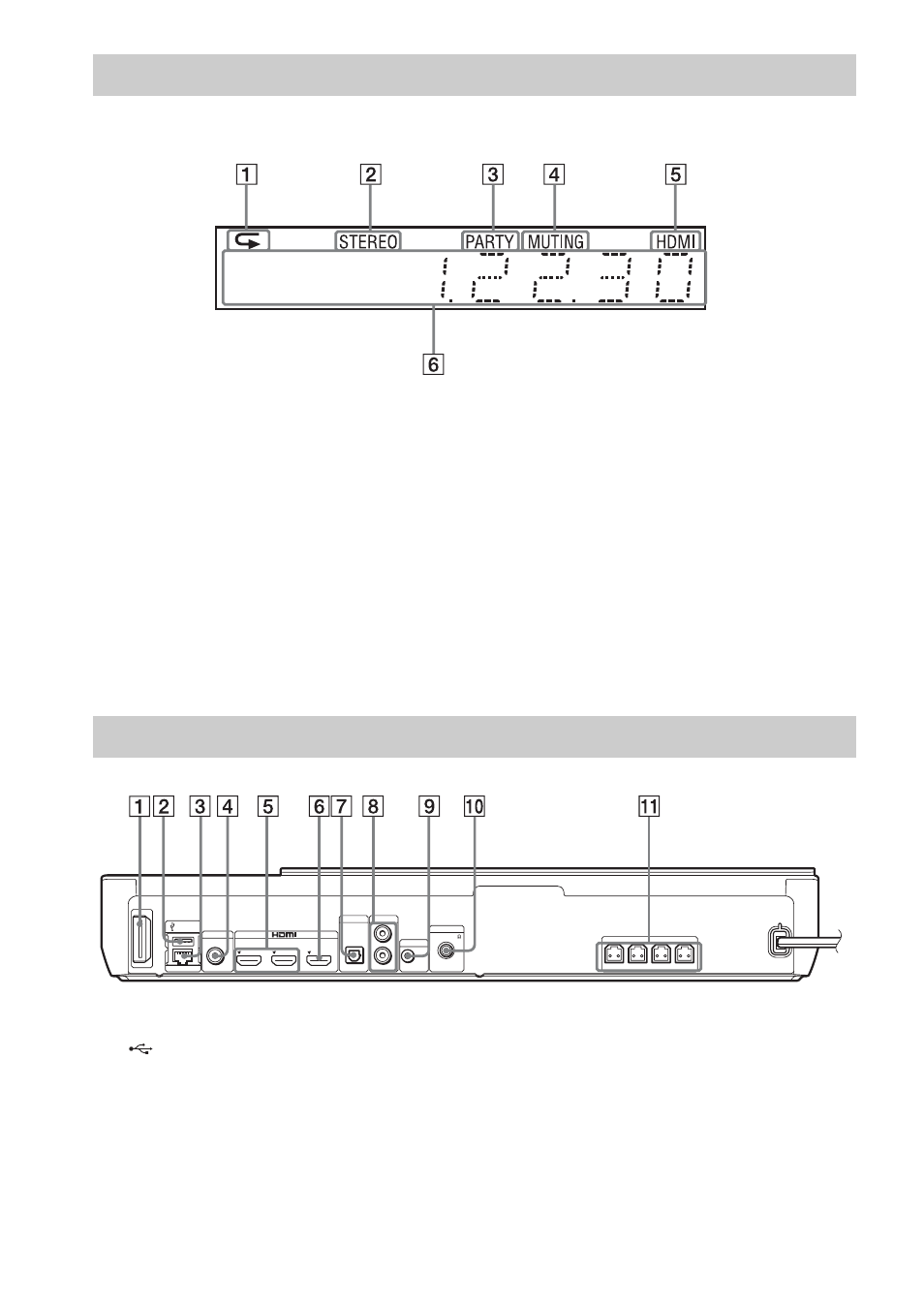

About the indications in the front panel display
A Lights up when repeat play is
activated.
B Lights up when stereo sound is
received. (Radio only)
C Lights up when the system is playing
via the PARTY STREAMING function.
D Lights up when muting is on.
E Lights up when the HDMI (OUT) jack is
correctly connected to an HDCP (High-
bandwidth Digital Content Protection)
compliant device with HDMI or DVI
(Digital Visual Interface) input.
F Displays the system’s status, such as
radio frequency, etc.
When you press DISPLAY, the stream
information/decoding status is displayed
when the function is set to “TV.”
The stream information/decoding status
may not appear depending on the stream or
item being decoded.
A Wireless transceiver slot (page 20)
B
USB 1 port (page 26)
C LAN (100) terminal (page 19)
D VIDEO OUT jack (page 16)
E HDMI (IN 1/IN 2) jacks (page 17)
F HDMI (OUT) jack (page 16)
G TV (DIGITAL IN OPTICAL) jack (page
16)
H AUDIO (AUDIO IN L/R) jacks (page 17)
I A.CAL MIC jack (pages 22, 35)
J ANTENNA (FM COAXIAL 75
Ω) jack
(page 19)
K SPEAKERS jacks (page 14)
Front panel display
Rear panel
FM ECM-AC3 AUDIO IN DIGITAL IN OUT IN 2 IN 1
OPTICAL
ARC
L
R
COAXIAL 75
ANTENNA
A.CAL MIC
AUDIO TV
VIDEO OUT
USB 1
LAN (100) FRONT R FRONT L CENTER SUBWOOFER
SPEAKERS
