Installation
Connecting to Component Video Equipment
Unplug the power cords of
both the projector and external
equipment from the AC outlet
before connecting cables.
Cables used for connection
• Audio cables
• Scart-VGA cable
• Component cable
• Component-VGA cable
• HDMI cable
(Cables are not supplied with this projector.)

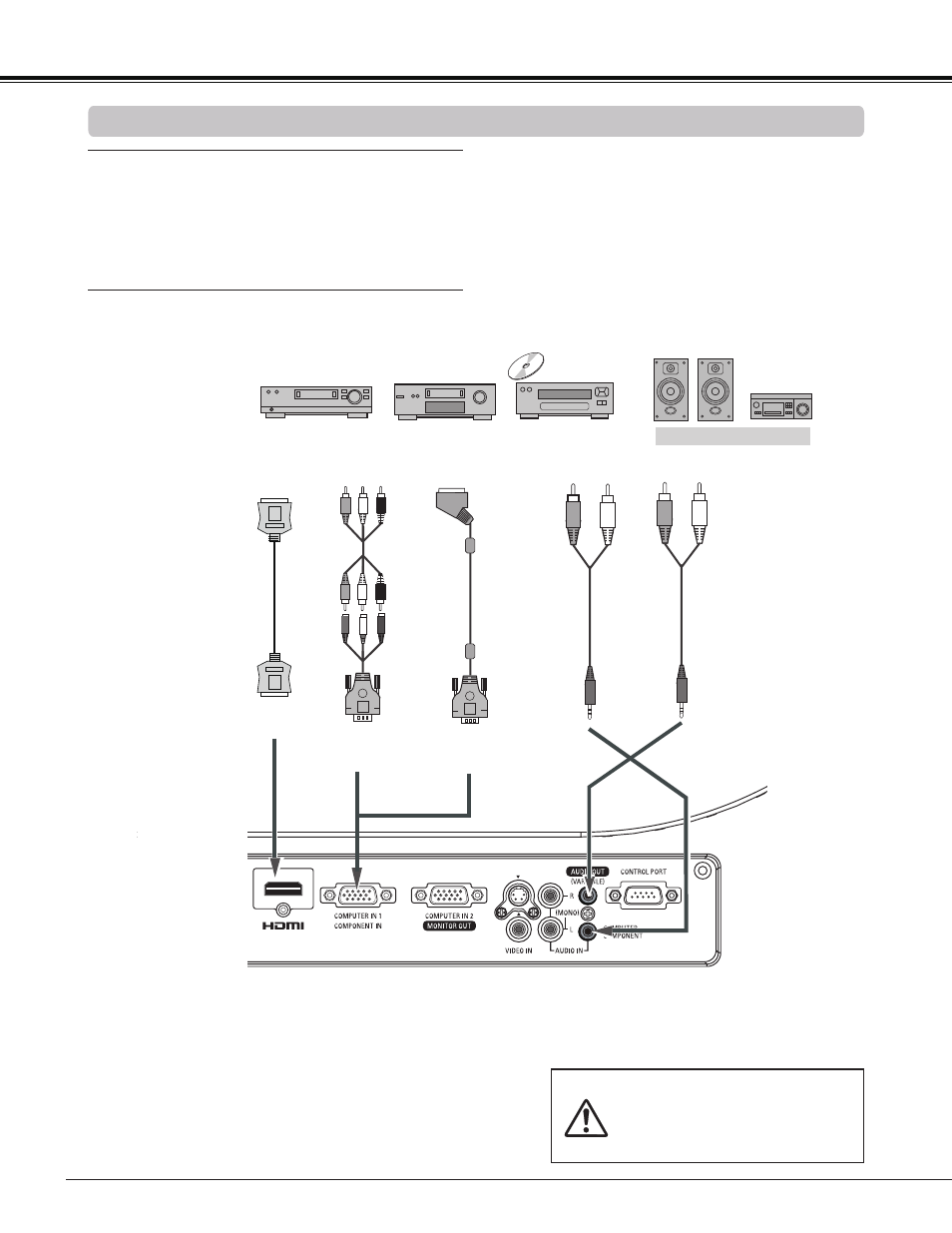

External Audio Equipment
COMPUTER IN/
COMPONENT AUDIO IN
Audio cable
(stereo)
Audio cable
(stereo)
Audio Input
Component Video Output
(Y, Pb/Cb, Pr/Cr)
RGB Scart 21-
pin Output
Audio Output
Scart-VGA
cable
Component-
VGA cable
AUDIO OUT
(stereo)
Component
cable
COMPUTER IN 1/ COMPONENT IN
HDMI
HDMI Output
HDMI
cable
 Note:
See page 74 for ordering optional cables.
