Note :
• When “S/B CH” is set to “2 CH” on the SPEAKER
CONFIGURATION menu, the SUBWOOFER
cannot be selected.
• Depending on your subwoofer type , you can select
one of following types.
ACTIVE: Select this when connecting the powered
subwoofer to “SW” of PREOUT jacks.
PASSIVE: Select this when connecting the subwoofer
without built-in amplifier to “SURROUND
BACK / SW” terminals.
Note :
• If “SUBWOOFER” is set to “PASSIVE”, the
SURROUND BACK RIGHT channel of the speaker
terminals and the PREOUT jacks is automatically
changed to SUBWOOFER channel.

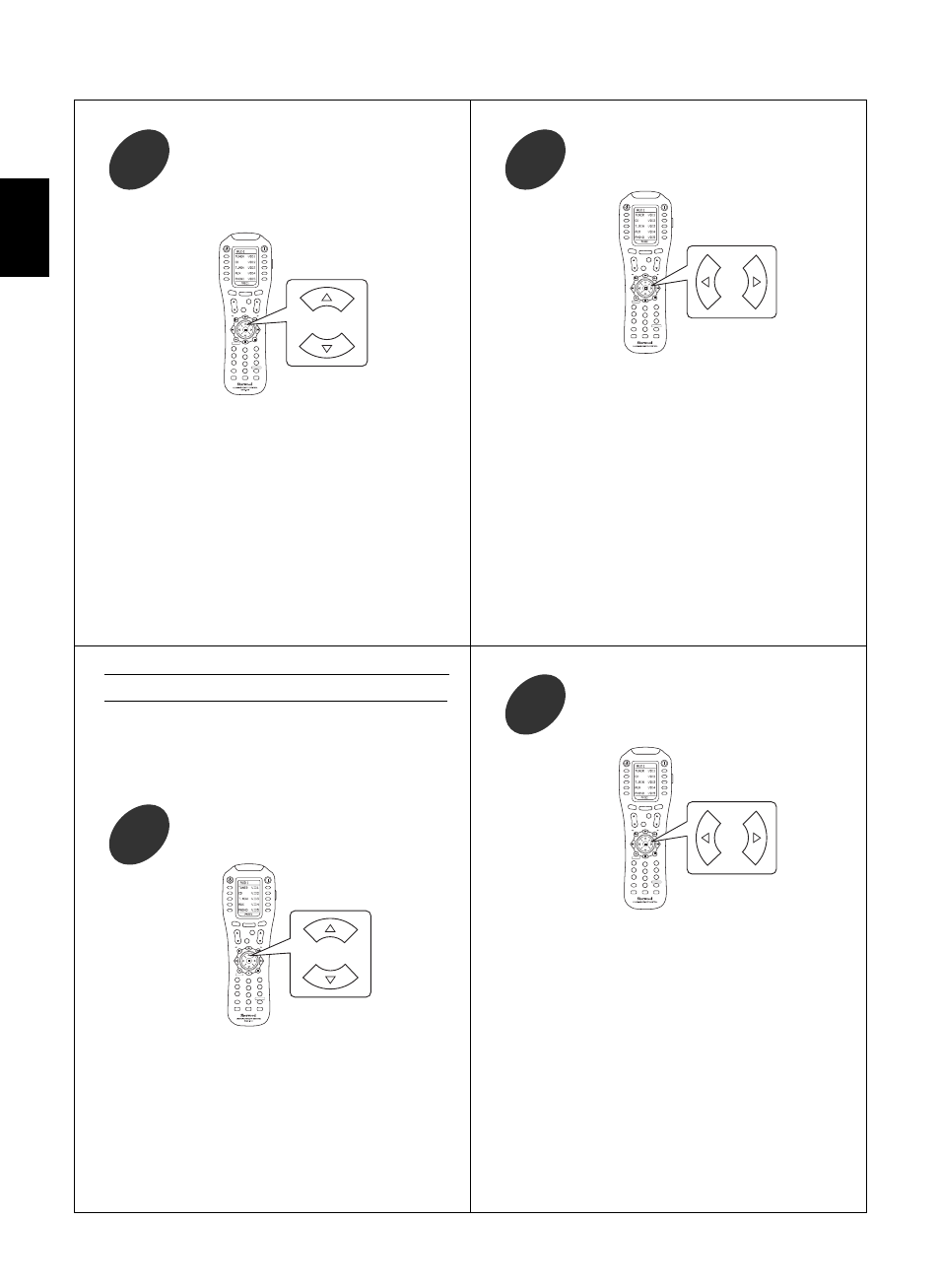

Press the CURSOR UP( )/DOWN( )
buttons to select the SUBWOOFER.
1
Press the CURSOR LEFT( )/RIGHT( )
buttons to select the desired mode.
2
When selecting the SUBWOOFER
• When the subwoofer without built-in amplifier is
connected to “SURROUND BACK / SW”
terminals, you should set “SUBWOOFER” to
“PASSIVE”.
Press the CURSOR LEFT( )/RIGHT( )
buttons to select the desired mode.
6
• Each time these buttons are pressed, the virtualization
mode changes as follows:
WIDE: This mode expands the front channel sound
field.
REFERENCE: This is the standard mode.
Notes :
• When “WIDE” is selected as virtualization mode,
you can select “2-SPEAKER”, “3-SPEAKER”, “4-
SPEAKER” or “5-SPEAKER”.
• When “REFERENCE” is selected as virtualization
mode, you can select “2-SPEAKER” or “3-
SPEAKER” only.
Press the CURSOR UP( )/DOWN( )
buttons to select the virtualization mode.
5
