506 x4, 510 x4, 509 x3 – Smooth Fitness DMT X2 User Manual
Page 24
24
SMOOTH AGILE DMT X2
ASSEMBLY

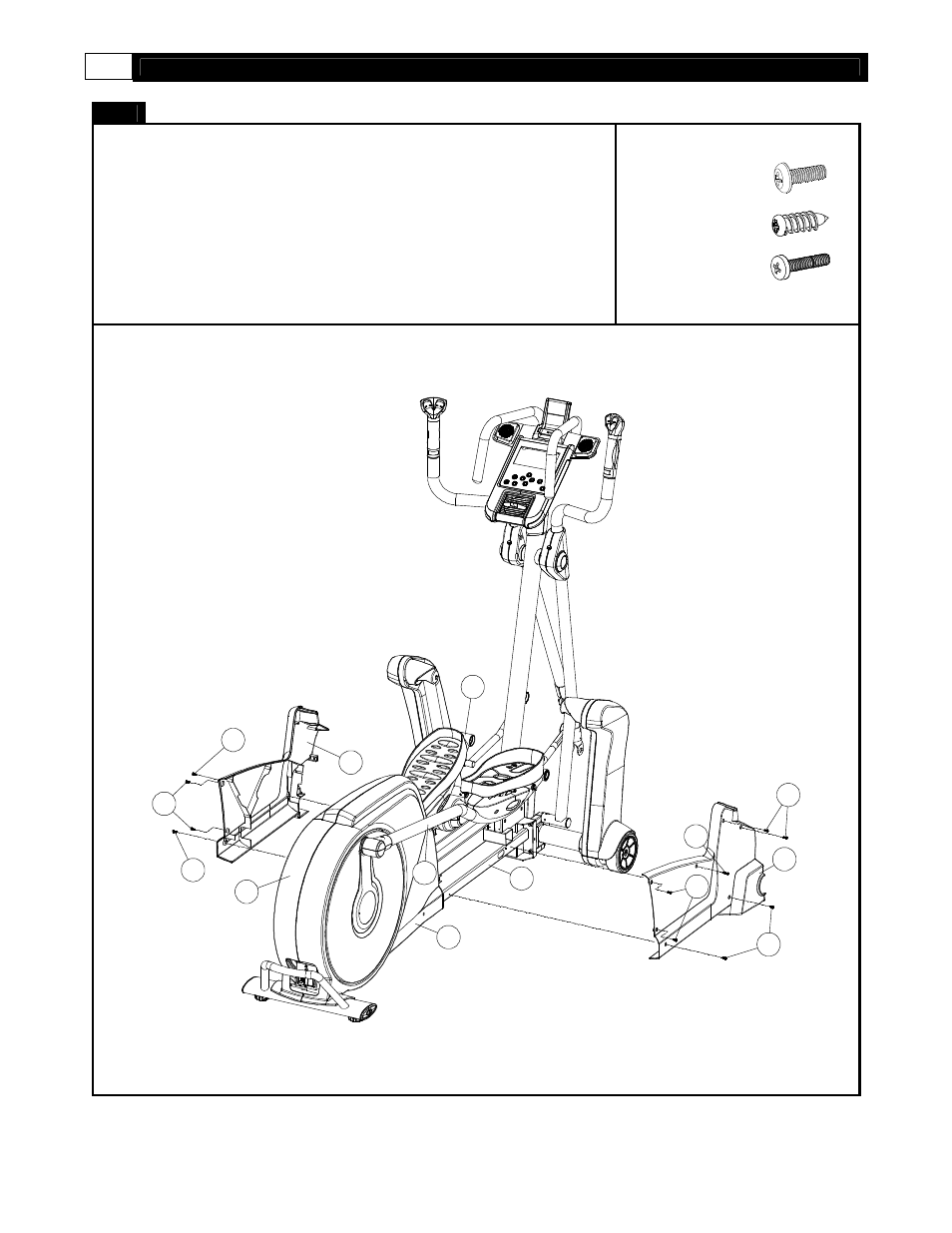

STEP 6: Assemble the Undercarriage Cover
(A) Lift the Pedal Arm and assemble the Undercarriage Cover – Left (704) to
the Main Frame (112), and secure using two 4x12mm Screw – Flat Point
(506) and two 4.5x15mm Screws (510).
(B) Repeat above the procedure to assemble the right side.
(C) Use the 4x19mm Screw (509) to fasten the right and left
Cover together.
506
X4
510
X4
509
X3
112
510
506
509
705
339
510
506
506
338
704
107
106
509
