Cheetah 15K.5 SCSI Product Manual, Rev. J 63

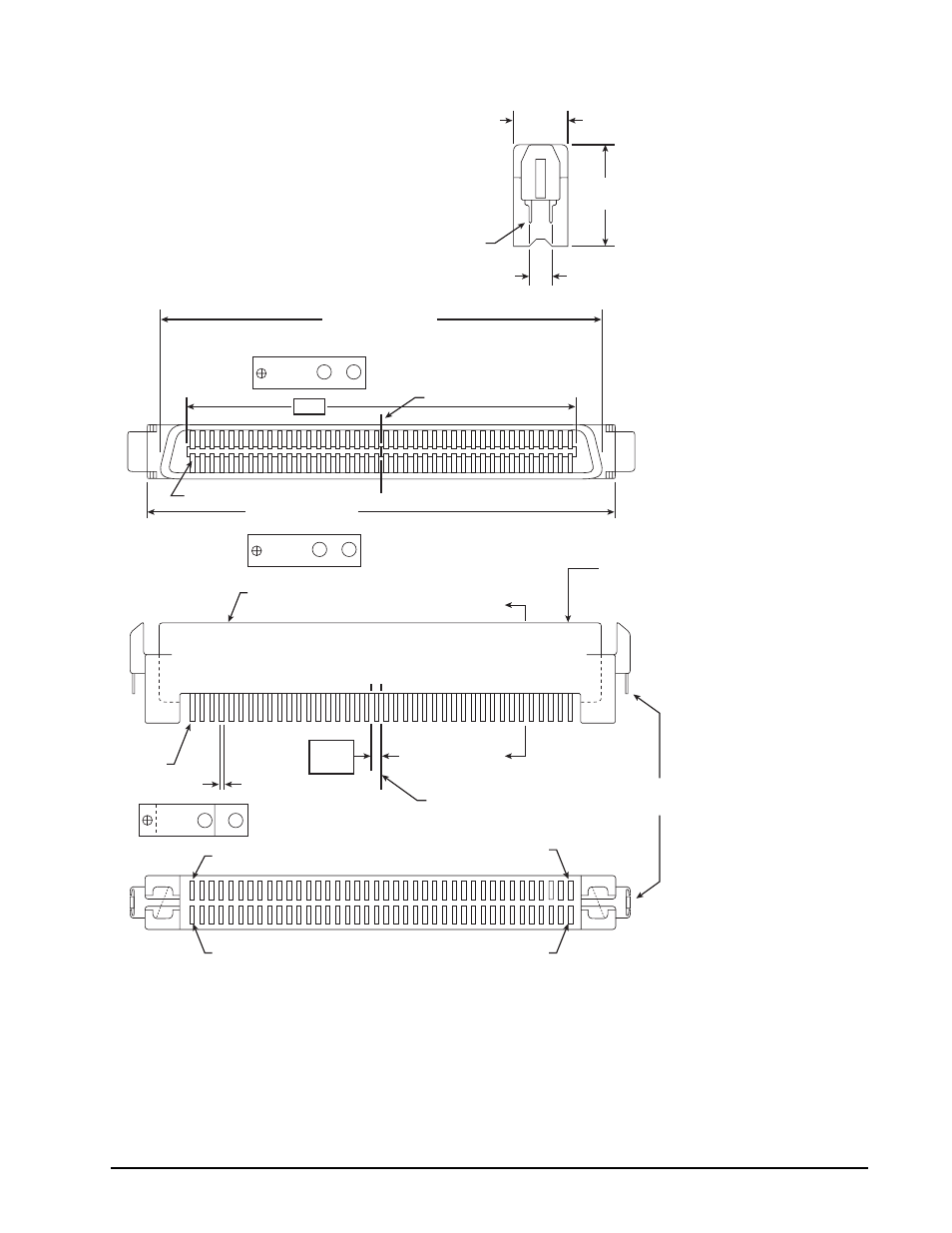

Figure 17. Nonshielded 80-pin SCSI SCA-2 connector used on LC drives
7.00
(.276)
12.70
(.500)
2.15 +/- 0.10
2 places
57.87 +/- 0.2
(2.278 +/- .008)
–Y–
0.15
(.0059)
M Y M
62.15 +/- 0.15
(2.447 +/- 0.006)
Housing
X
X
Contact
0.3
(.012)
M Y M
1.27
(.05)
Typ
C
L of Datum Y
C L of Datum Y
0.50
(.020)
Pin 1
Pin 40
Pin 41 Pin 80
Pin 1
Front View
End View
Top View
Back View
Insert mating
I/O connector
Grounding
Pins
Grounding
Pins
0.15
(.0059)
M Y M
