Cheetah 15K.5 SCSI Product Manual, Rev. J

31

Drives packaged in single or multipacks with a gross weight of 20 pounds (8.95 kg) or less by Seagate for
general freight shipment shall withstand a drop test from 48 inches (1,070 mm) against a concrete floor or
equivalent.

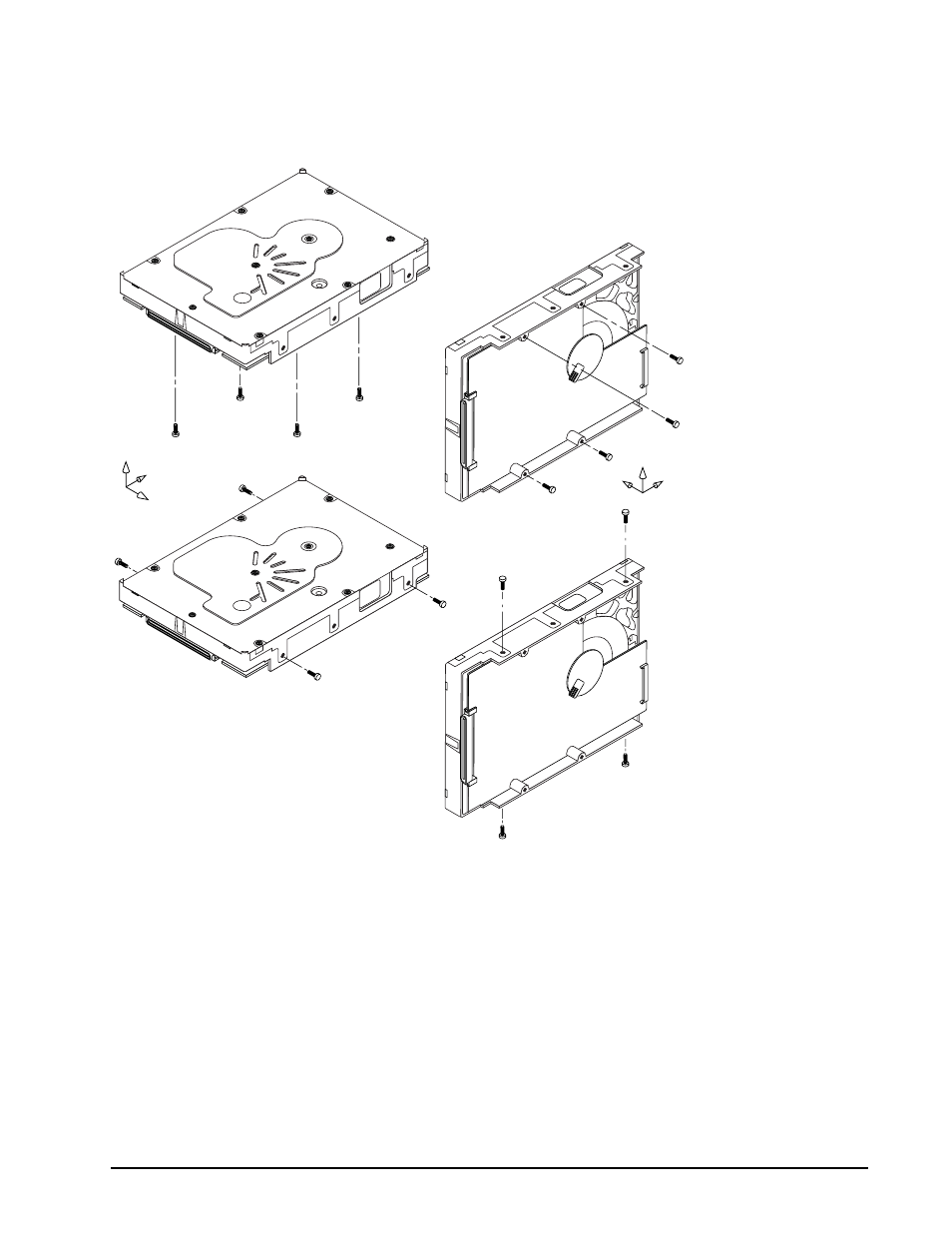

Figure 7. Recommended mounting

Z

Y

X

Z

Y

X
