Simer Pumps 2803 - Manual (Page 10)

Repair Parts 10
For parts or assistance, call Simer Customer Service at 1-800-468-7867 / 1-800-546-7867
1
2
3
3
4
7
8
9
10
11
12
13
14
16
6
15
19
18
20
6
17
5

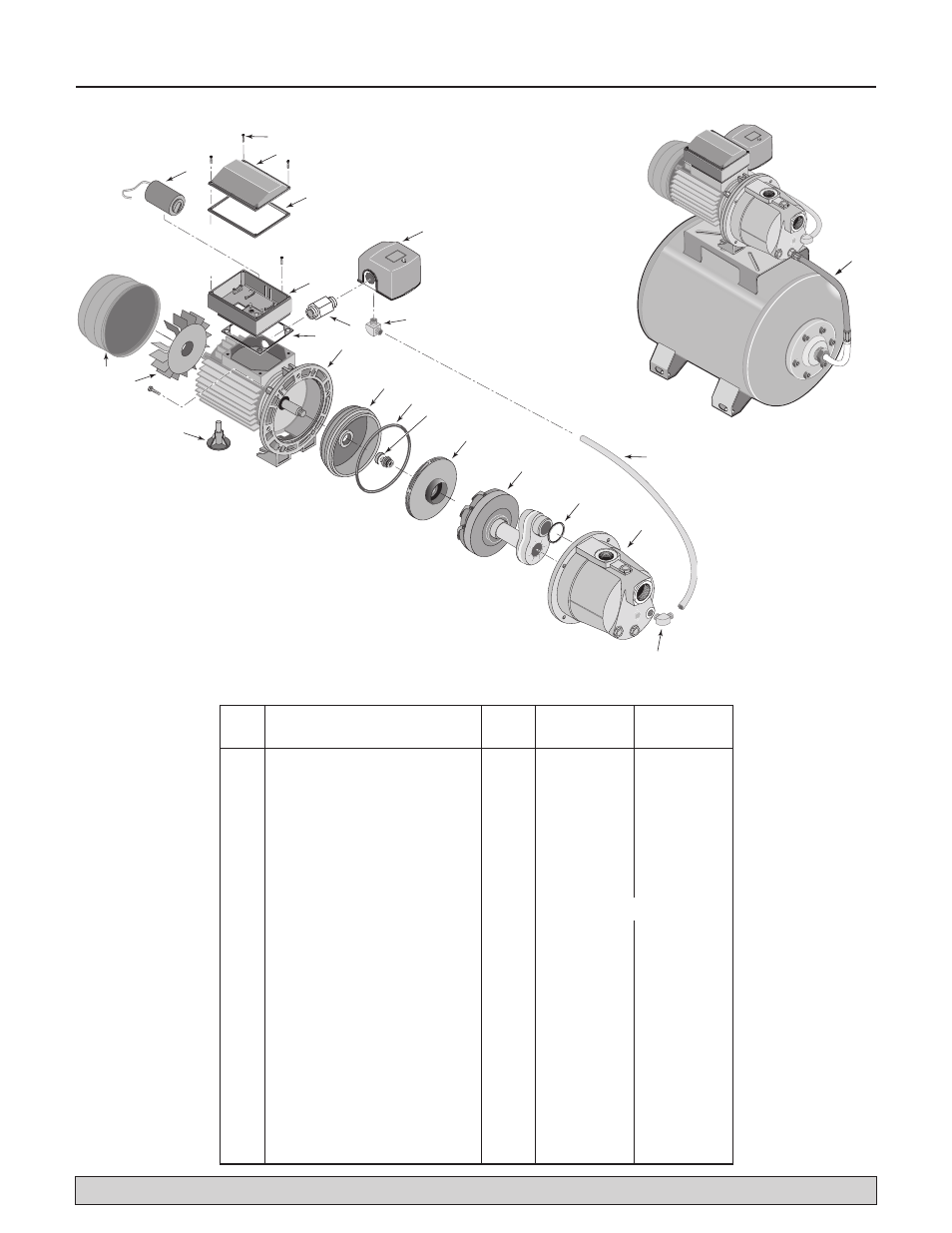

Repair Parts
Key Part No. 2800 2802
No. Description Used 2800E 2802E
1 Capacitor 1 171P5620 171P5430
2 Screw 3.5 x 12.7 11 121P2060 121P2060
3 Wiring Box and Cover 1 102P2870 102P2870
4 Wiring Box Cover Gasket 1 111P1350 111P1350
5 Pressure Switch 1 U217-1202 U217-1202
6 90° Hose Barb 2 U111-212T U111-212T
7 Connector, 1/2" NSPM 1 J43-13C J43-13C
• Connector Lock Ring 1 U36-112ZP U36-112ZP
8 Wiring Box Base Gasket 1 111P1340 111P1340
9 Seal Plate and Motor 1 Not Available Separately
10 Seal Plate Insert 1 101P1290 101P1290
11 O-Ring 1 111P0700 111P0700
12 Shaft Seal, Complete 1 ZBR00010 ZBR00010
13 Impeller 1 731S5700 731S2220
14 Diffuser/Nozzle/Venturi 1 101P3440 101P3440
15 O-Ring 1 111P0480 111P0480
16 Volute 1 731P1000 731P1000
17 Pressure Switch Tube 1 U37-669P U37-669P
18 Motor Foot (2800, 2802 only) 1 101P1400 101P1380
19 Fan 1 102P2010 102P0570
20 Motor End Cover 1 201P0150 201P0160
21 Flexible Pipe with Fitting 1 ZA004870 ZA004870
(Tank to Pump,
2300E and 2802E Only)
