CHAPTER ONE
Connecting The Set Top Box
1
1
16

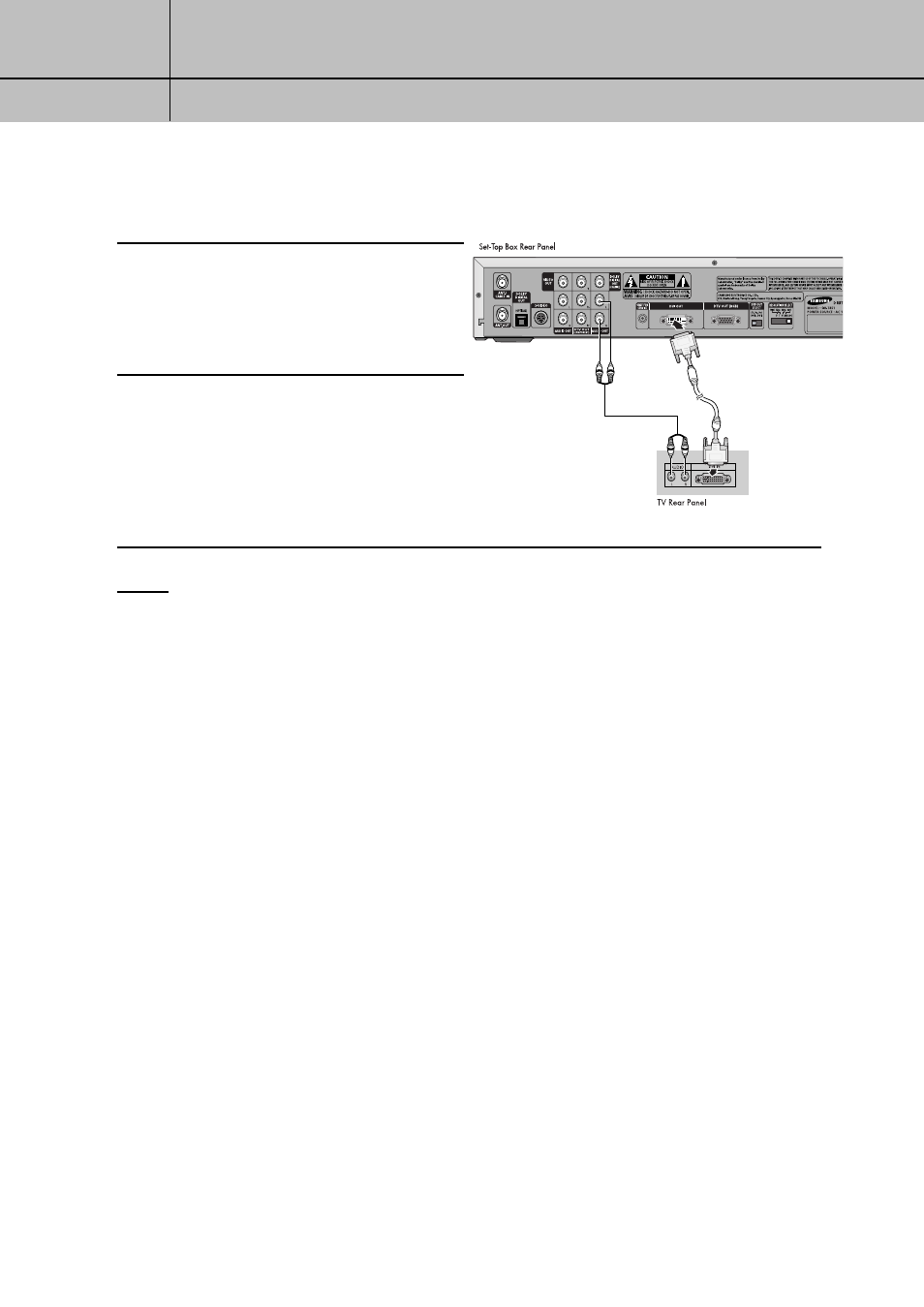

Connecting the Set-Top Box to a Device with a DVI jack
1
Connect a DVI cable between the
DVI OUT jack on the Set-Top Box
and the DVI IN jack on the DVI device
(TV, monitor).
2 Connect audio cables between the Lt/Rt
AUDIO OUT jacks on the Set-Top Box
and the L/R AUDIO IN jacks on the DVI
device.
NOTES
• This Set-Top Box supports HDCP technology. HDCP stands for High-bandwidth Digital Content
Protection, which provides secure data transmission for high definition video.
• Only DVI-HDCP supported devices can be connected.
• A 25-pin DVI-D jack is used, so only digital signals can be viewed.
