CHAPTER ONE
Connecting The Set Top Box
1
1
14

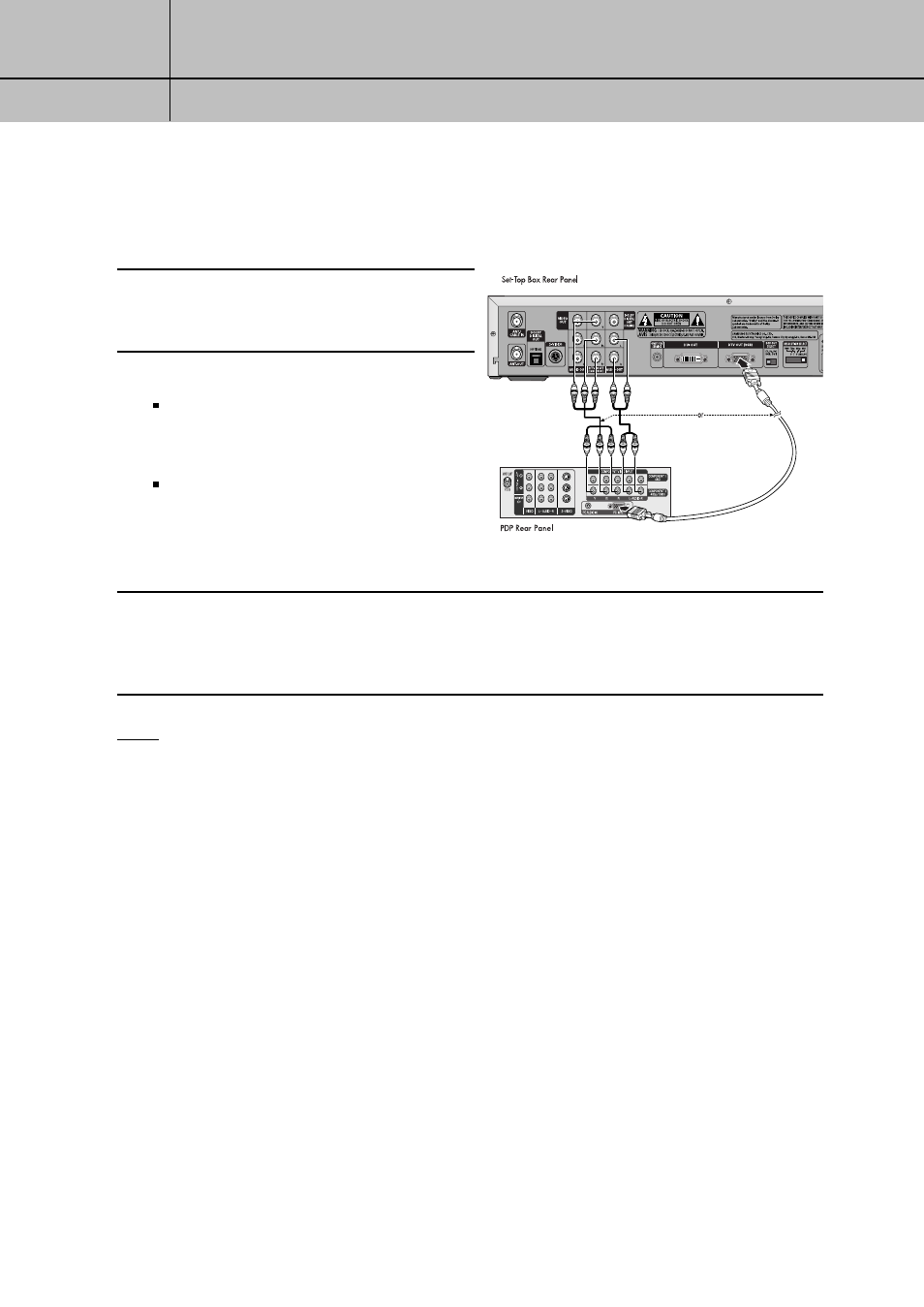

Connecting the Set-Top Box to a TV Set
Plasma Display Panel (PDP)
1
Connect an antenna cable to the ANT/CABLE
IN jacks on the Set-Top Box.
2 Connect the Video Cables.
YP
b
P
r
format: Connect a Component
video cable between the DTV OUT(COM-
PONENT) jacks on the Set-Top Box and the
DTV INPUT jacks on the PDP.
RGB format: Connect an RGB video moni-
tor cable between the DTV OUT (RGB) jack
on the Set-Top Box and the RGB VIDEO IN
jack on the PDP.
3 Connect the Audio Cables
Connect an audio cable between the Lt/Rt AUDIO OUT jacks on the Set-Top Box and the L/R
AUDIO IN jacks on the PDP.
NOTE
You must select the Y,P
b
,P
r
or RGB(DVI) with the 'DTV Output Select' switch at the rear of Set-Top Box
for the PDP INPUT jack.
