Console port pin assignments – SMC Networks 48-Port User Manual
Page 55
C
ABLES
B-5
Console Port Pin Assignments
The DB-9 serial port on the switch’s rear panel is used to connect
to the switch for out-of-band console configuration. The on-board
menu-driven configuration program can be accessed from a
terminal, a PC running a terminal emulation program, or from a
remote location via a modem connection. The pin assignments
used to connect to the serial port are provided in the following
tables.

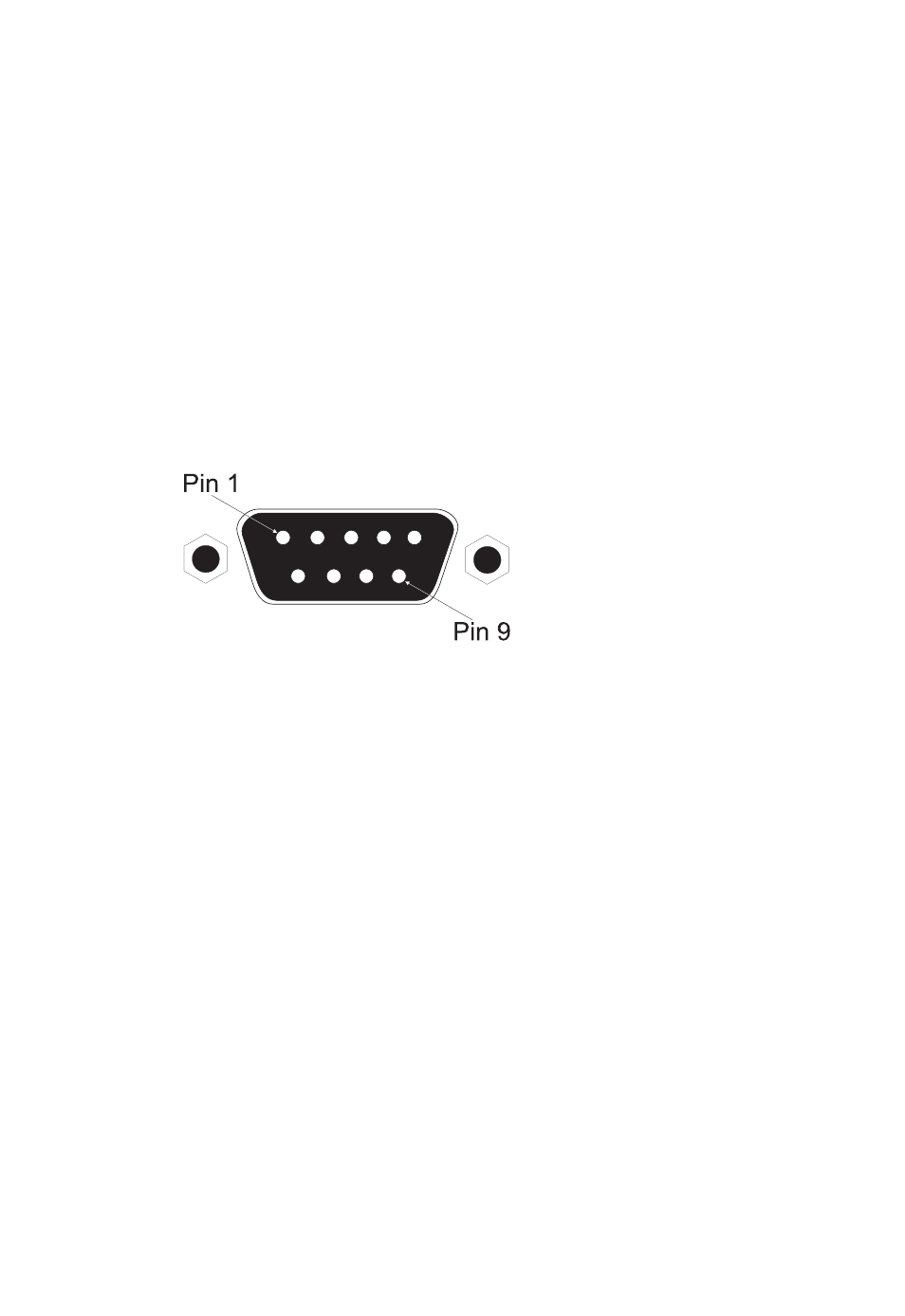

Figure B-2. DB-9 Console Port Pin Numbers
