NSTALLING

THE

WITCH

3-6

Connecting to a Power Source

To connect a device to a power source:

1. Insert the power cable plug directly into the receptacle located

at the back of the device.

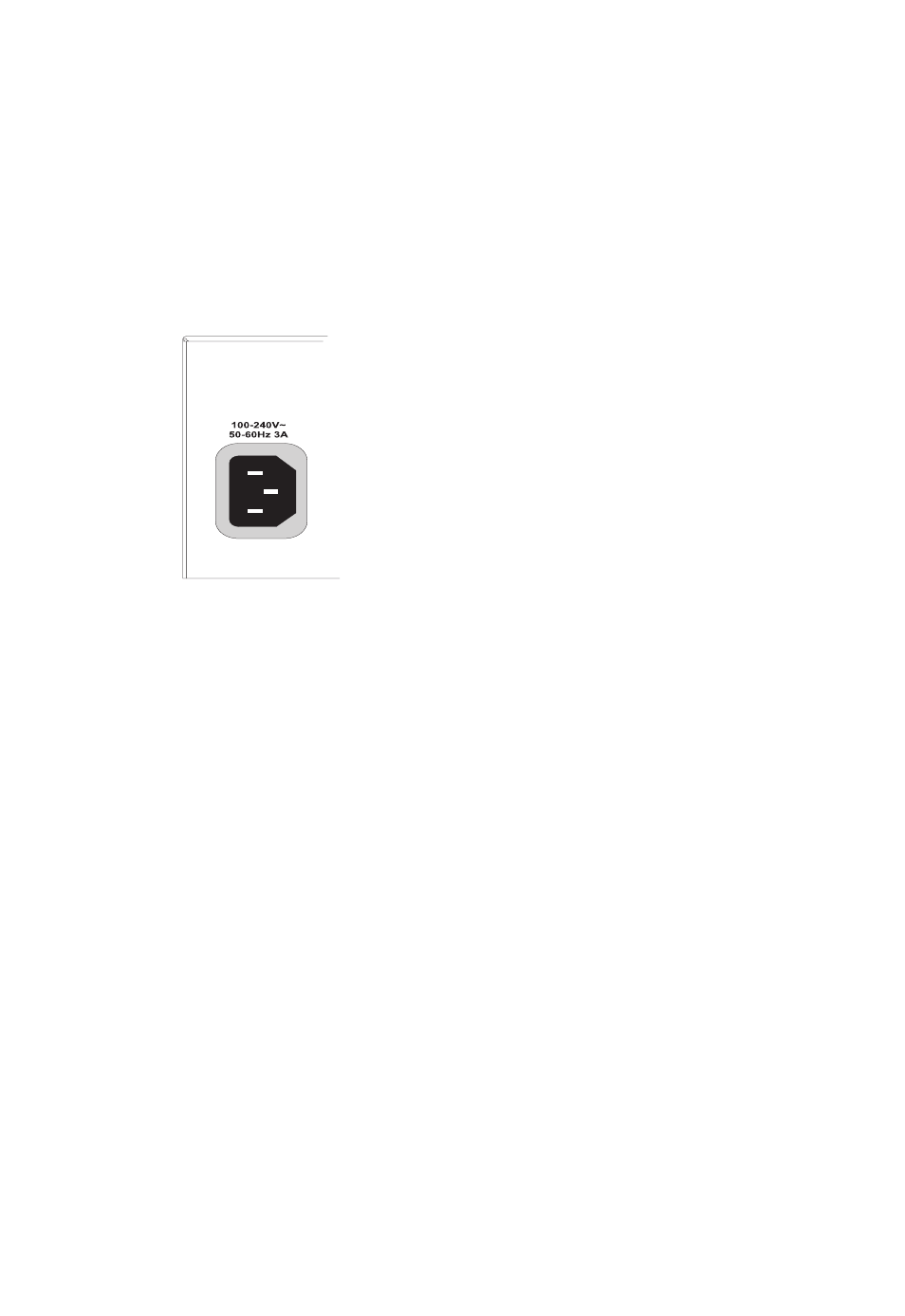

Figure 3-4. Power Receptacle

2. Plug the other end of the cable into a grounded, 3-pin socket.

Note: For International use, you may need to change the AC line

cord. You must use a line cord set that has been approved
for the receptacle type in your country.

3. Check the front-panel LEDs as the device is powered on to be

sure the Power LED is lit. If not, check that the power cable is
correctly plugged in. The Mgmt LED on the switch will be lit.

4. If you have a purchased Redundant Power Unit, connect it to

the device and to an AC power source now, following the
instructions included with the package.
