-8-
M1051 6" Bench Grinder
SET
UP
• Working Clearances: Consider existing and
anticipated needs, size of material to be processed
through the machine, and space for other machinery
when establishing a location for your new machine.
• Lighting: Lighting should be bright enough to
eliminate shadow and prevent eye strain.
• Electrical: Electrical circuits should be dedicated.
Outlets should be located near the machine, so
power or extension cords are clear of high-traffic
areas. Follow local electrical codes for proper
installation of new lighting, outlets, or circuits.
MAKE your shop “child safe.” Ensure
that your workplace is inaccessible to
youngsters by closing and locking all
entrances when you are away. NEVER
allow untrained visitors in your shop
when assembling, adjusting or operat-
ing equipment.
Shop Preparation
The 6" Bench Grinder should be mounted to a workbench
to avoid accidental tipping. If you intend on using the
6" Bench Grinder for portable applications, mount it to
a heavy plywood base (at least 1" thick) that is wide
enough to prevent tipping or rocking during use.
To mount the bench grinder, do these steps:
1. Determine the surface or object to which you will
mount your 6" Bench Grinder, and obtain the needed
hardware for your mounting application.
2. Fasten the 6" Bench Grinder to your supporting
surface, using the dimensions in Figure 4. DO NOT
overtighten the mounting bolts or you will crack the
base.
3. Check the stability of the mounted 6" Bench Grinder
to make sure it is stable enough to be used safely.
Mounting

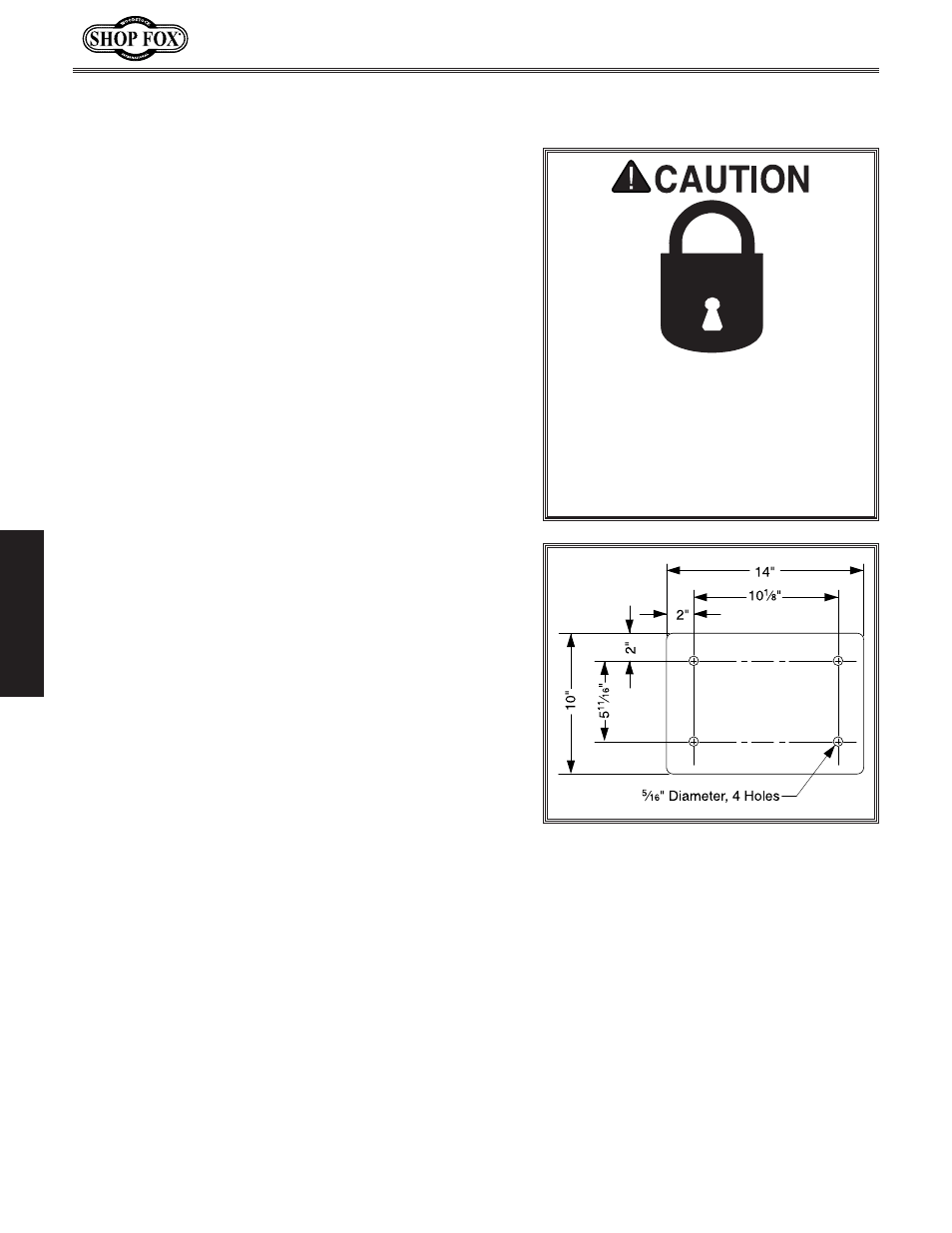

Figure 4. Dimensions for mounting 6"
Bench Grinder.
