6

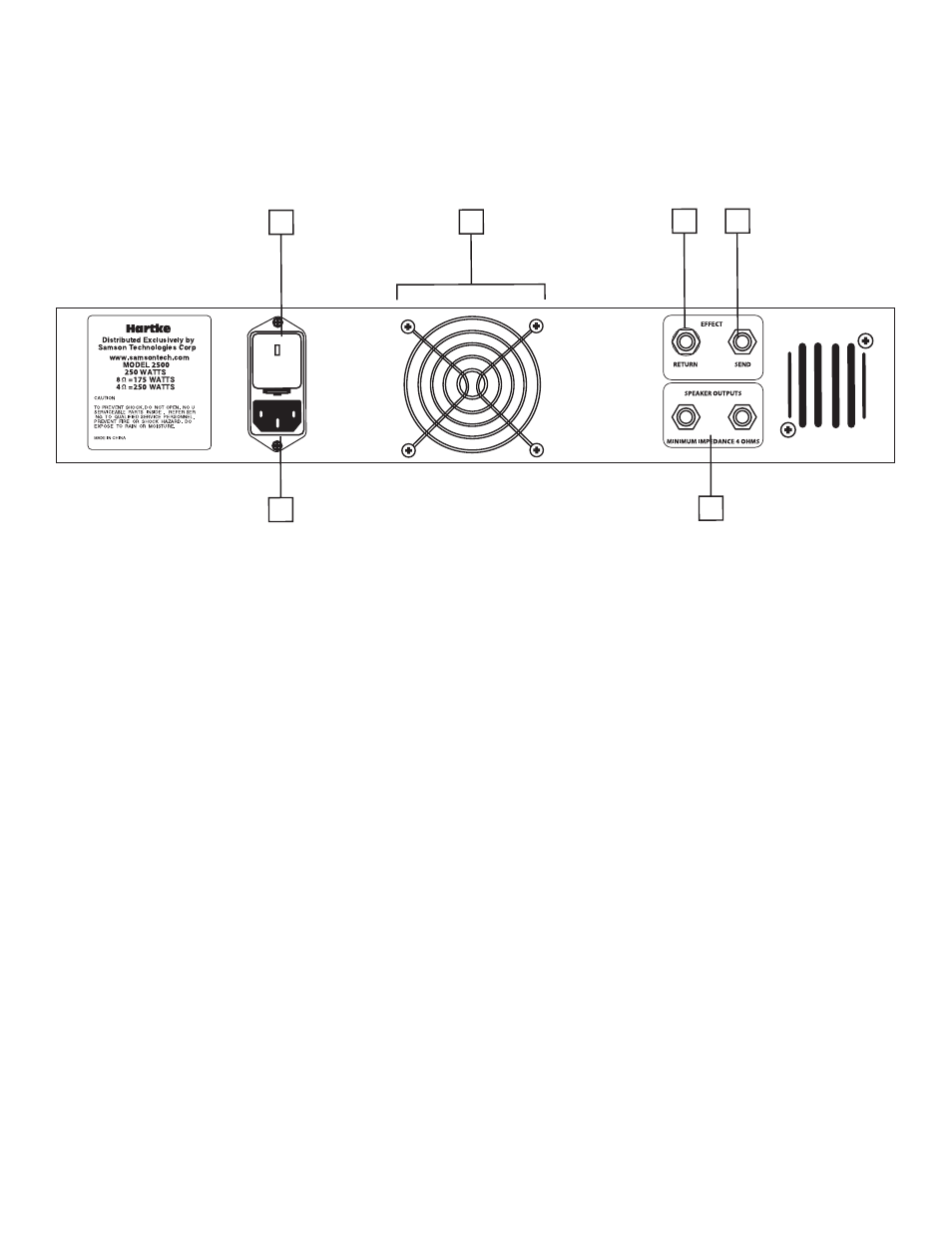

Guided Tour - VX2510 & VX2515 Rear Panel
1. Fuse sled - This contains a fuse holder and shows the currently
selected voltage rating for your Model 2500. Make sure the voltage rat-
ing is correctly set before powering up the amplifier! Fuse ratings are
10 amp for 115 vac and 6.2 amp for 230 vac. For information on how to
change the voltage rating, see Appendix B on page 14.
2. AC input - Connect the supplied standard 3-pin “IEC” plug here.
3. Fan - The fan provides vital cooling to your Model 2500. Make sure
that it is kept free of all obstructions and that cool, fresh air is accessible
at all times. Also, try to ensure that the Model 2500 is used in a dust-
free environment.
4. Effect Return jack - Use this 1/4” unbalanced jack to return low
impedance (600 ohm) signal to the Model 2500 from a professional
outboard effects processor.*
