Setting Up and Using The VX2510 & VX2515
PRE AMP
5
4
3
2
1
0
6
7
8
9
10
5
4
3
2
1
0
6
7
8
9
10
A B
TUBE SOLID STATE
CONTOUR
0 3
5
15
-18
3
5
10
15
+18
0 3
5
10
15
-18
3
5
10
15
+18
LOW PASS HIGH PASS
COMPRESSION
5 4
3
2
1
0
6
7
8
9
∞
Model 2500 Effect
Send/Return jacks
IN
OUT
+15
+12
+9
+6
+3
+2
-2
-3
-6
-9
-12
-15
+15
0
-15
8KHz 5KHz 3KHz 2KHz 1KHz 500Hz 250Hz 125Hz 64Hz 30Hz
8KHz 5KHz 3KHz 2KHz 1KHz 500Hz 250Hz 125Hz 64Hz 30Hz
GRAPHIC EQUALIZER
IN
OUT
+15
+12
+9
+6
+3
+2
-2
-3
-6
-9
-12
-15
+15
0
-15
8KHz 5KHz 3KHz 2KHz 1KHz 500Hz 250Hz 125Hz 64Hz 30Hz
8KHz 5KHz 3KHz 2KHz 1KHz 500Hz 250Hz 125Hz 64Hz 30Hz
GRAPHIC EQUALIZER
IN
OUT
+15
+12
+9
+6
+3
+2
-2
-3
-6
-9
-12
-15
+15
0
-15
8KHz 5KHz 3KHz 2KHz 1KHz 500Hz 250Hz 125Hz 64Hz 30Hz
8KHz 5KHz 3KHz 2KHz 1KHz 500Hz 250Hz 125Hz 64Hz 30Hz
GRAPHIC EQUALIZER

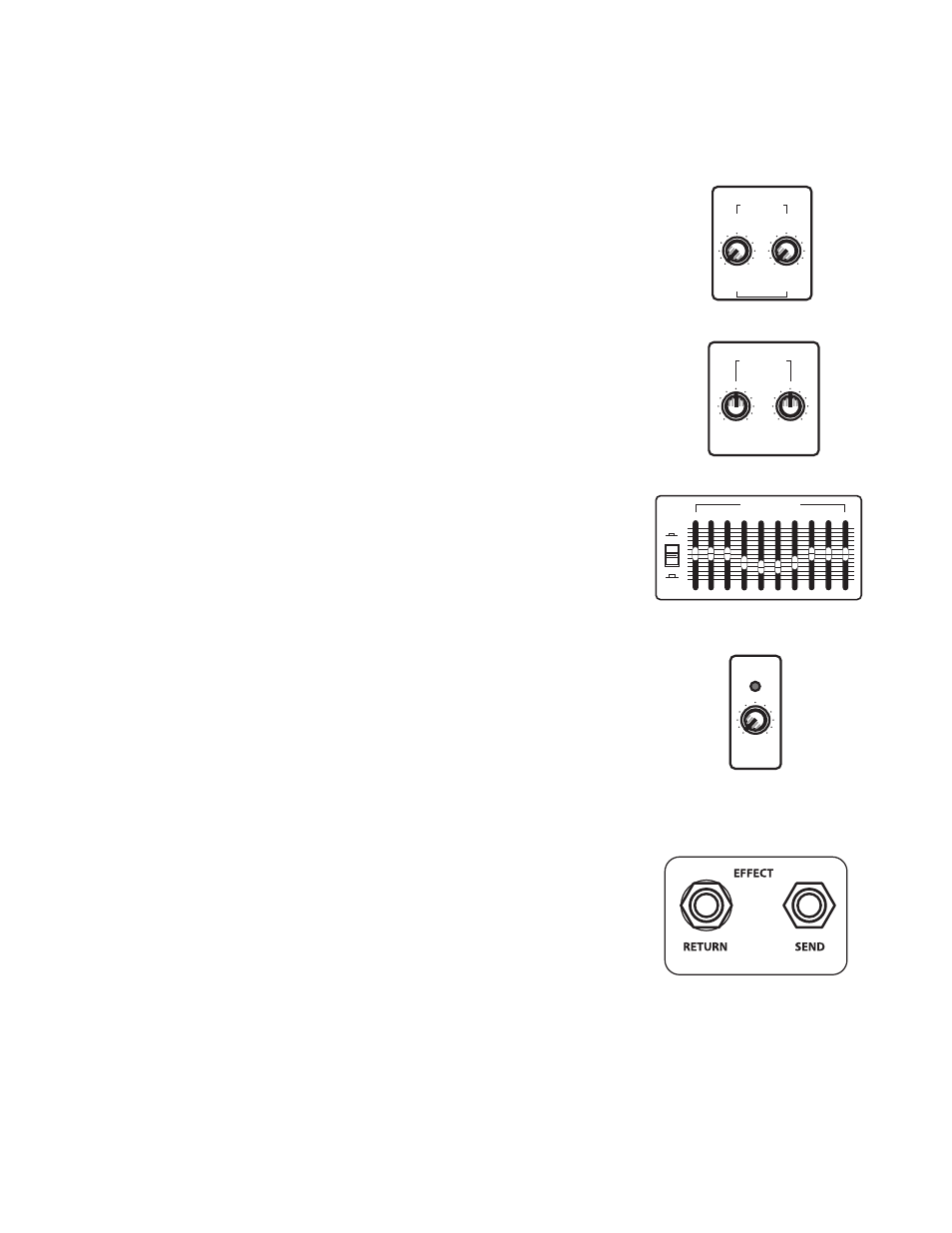

7. Experiment with altering the balance of the two Pre-Amp knobs, listening to
the effect each has on the overall sound. Depending upon the specific instru-
ment you are using and your personal taste, you may prefer the sound of one
over the other, or you may prefer a particular blend of the two. Note that, when
both are used at equal settings, the amplifier will be twice as loud as when only
one is used. In step #4 on the previous page, we recommended that you begin
with both knobs at their midway “5” setting, but the two Pre-Amp knobs can in
fact be set to any blend you like. However, you will usually want to avoid setting
both to their maximum “10” position since this setting will almost always result in
undesirable distortion.
8. When you have settled on a Pre-Amp balance, the next step is to adjust the
two Contour (bass and treble equalizer) controls to taste. For more information,
see the “About Equalization” section on page 13 of this manual. When you get
a great setting that complements your instrument and playing style, it’s a good
idea to write it down for future use.
9. Next, experiment with the Model VX2515/VX2510 graphic equalizer. Begin
by setting each of the ten sliders to their flat “0” center detented position. Then
press in the In/Out switch (to its “In” position) so that the graphic equalizer is acti-
vated. Finally, move each slider in turn as you play your bass. For more informa-
tion, see the “About Equalization” section on page 13 of this manual. Again, when
you get a graphic equalization setting that complements your instrument and
playing style, it’s a good idea to write it down for future use.
10. Now try out the Model VX2515/VX2510 compression circuitry. Activate it
by turning the Compression knob clockwise from its “Off” position (you’ll hear
a click when it is activated). As you turn the knob clockwise, the input signal
from your bass becomes more and more severely compressed—you’ll hear peak
signals (such as string slaps and pulls) begin to sound increasingly “squashed,”
relative to the lower-level signals produced by standard playing. The result
will be a decreased dynamic range but an overall leveling of signal throughout
the full pitch range of your instrument. For more information, see the “About
Compression” section on page 15. In the Model 2500, the Compression LED will
light steadily green when no compression is being applied, will go out whenever
small amounts of compression are being applied and will flash or light steadily
red when limiting (severe compression) is being applied.
11. If you’re using an external signal processor, turn your Hartke amplifier off
momentarily and then connect a standard audio cable between the Effect Send
jack and your effects processor input and another standard audio cable between
the Effect Return jack and your effects processor output (if required, multiple
effects processors can be daisy-chained together, output to input). Then turn the
amp back on and play your bass while adjusting the controls of your outboard
effects processor(s). For best results, set both the input and output gain of all
connected effects processor(s) to 0 dB (unity gain), so that there is no increase or
decrease in level whether the effects are switched in or out.
If you have followed all the steps above and are still experiencing difficulties, call
Samson Technical Support (516-932-1062) between 9 AM and 5 PM EST.
* For more information on the use of the Hartke 2500 effect Balance control, see
page 10 in this manual.
