14

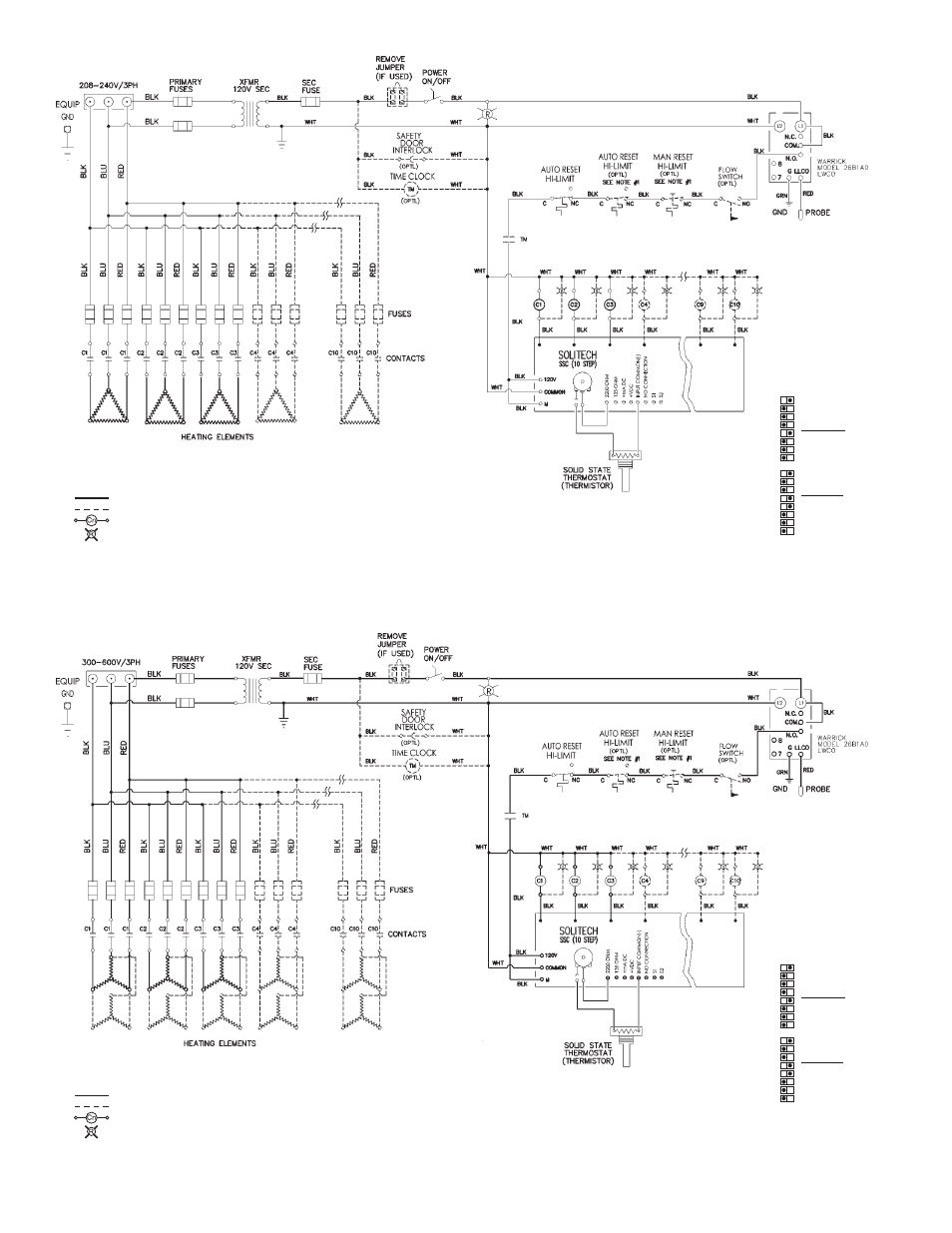

dIaGraM 3.
three phase delta wIth step control
dIaGraM 4.
three phase wye wIth step control
NOTE(S):
1. SUBSTITUTE A MANUAL RESET HLMT SWITCH FOR ONE(1) OF
THE AUTO RESET HLMT SWITCHES.
STD. WIRING
OPTIONAL OR FIELD WIRING AS REQ’D
CONTACTOR COIL
INDICATION LIGHT
NOTE(S):
1. SUBSTITUTE A MANUAL RESET HLMT SWITCH FOR ONE(1) OF
THE AUTO RESET HLMT SWITCHES.
STD. WIRING
OPTIONAL OR FIELD WIRING AS REQ’D
CONTACTOR COIL
INDICATION LIGHT
1 OFF ON 2200
2 OFF ON 135
3 OFF ON 4-20MA
4 OFF ON 0-10VDC
5 DS PROP
6 PROG UN
7 OFF VER
8 SEC MN
1 DELAY 1
2 DELAY 2
3 DELAY 3
4 -1-
5 -2-
6 -4-
7 -5-
8 -16-
THE ABOVE DIP SWITCH SETTINGS
ARE AN EXAMPLE FOR THE FOLLOWING:
2200 OHM
PROPORTIONAL
PROGRESSIVE
VERNER “OFF”
SECONDS
10 SECOND
3 STAGE
INPUTS
DELA
Y
ST
AGES
1 OFF ON 2200
2 OFF ON 135
3 OFF ON 4-20MA
4 OFF ON 0-10VDC
5 DS PROP
6 PROG UN
7 OFF VER
8 SEC MN
1 DELAY 1
2 DELAY 2
3 DELAY 3
4 -1-
5 -2-
6 -4-
7 -5-
8 -16-
THE ABOVE DIP SWITCH SETTINGS
ARE AN EXAMPLE FOR THE FOLLOWING:
2200 OHM
PROPORTIONAL
PROGRESSIVE
VERNER “OFF”
SECONDS
10 SECOND
3 STAGE
INPUTS
DELA
Y
ST
AGES
