3
SONANCE SYMPHONY ® SSTR, SST & SRS1
SPEAKER ADJUSTMENTS
Pivoting Woofer
The Symphony S623 SSTR , S621sstr and SRS1 mocels have a pivoting woofer assem-
bly. These pivoting drivers allow you to direct sound toward or away from the
listening area, depending on how the speakers are being used:
• Pivoting the woofer towards the listening position will maximize the speaker’s
clarity and definition.
• If you’re using the speakers as surround channel speakers in a home theater,
you can create a more diffuse, spacious surround effect by aiming the woofers
towards a wall or window,
away from the listeners.
To pivot the woofer, apply
pressure on the outer edge
of the tweeter support brack-
et, as shown in Figure 7 . Do
not touch or apply pressure
to the woofer cone.
To Pivot the Woofer:
Apply pressure on the outer
edge of the tweeter support
bracket, as shown in
Figure 8 . Do not touch or
apply pressure to the woofer
cone.
Tweeter Level Control
The S623
SSTR
has a tweeter level
control switch (see Figure 8 ) that lets
you boost or cut the tweeter’s level by
3dB. This allows you to adjust the
speaker’s brightness to better match
your listening room or personal taste.
Once you have installed the speakers,
listen to a variety of music that you
are familiar with. If the music all
tends to sound too bright or dull, use
the Tweeter Level Control to compensate. If some recordings sound dull and some
sound bright the speaker is accurately reproducing differences in the recordings,
and you should leave the control in the middle (0dB) position.
SPECIFICATIONS
S623SSTR
Tweeter: Two 1" (25mm) Silk domes, Ferrofluid-cooled
Woofer: 6½" (165mm) Carbon fiber cone, dual voice coil, rubber
surround, pivoting
Frequency Response: 43Hz – 20kHz ±3dB
Impedance: 8 Ohms nominal; 6 Ohms minimum
Power Handling: 5 watts minimum; 135 Watts maximum
Sensitivity: 90dB SPL (2.83V 1 meter)
Grille Material: Perforated aluminum
Adjustments: ±3dB Tweeter level
Dimensions (Dia. x Depth): 9¾" (248mm) x 5 3 /
16
" (132mm)
Cutout Diameter: 8 5 /
32
" (207mm)
Shipping Weight: 5 lbs. (2.3kg) Each
S621SSTR
Tweeter: Two ¾" (19mm) Silk domes, Ferrofluid-cooled
Woofer: 6½" (165mm) Polypropylene cone, dual voice coil, rubber
surround, pivoting
Frequency Response: 50Hz – 20kHz ±3dB
Impedance: 8 Ohms nominal; 6 Ohms minimum
Power Handling: 5 watts minimum; 100 Watts maximum
Sensitivity: 88dB SPL (2.83V 1 meter)
Grille Material: Perforated aluminum
Adjustments: None
Dimensions (Dia. x Depth): 9¾" (248mm) x 5 3 /
16
" (132mm)
Cutout Diameter: 8 5 /
32
" (207mm)
Shipping Weight: 4.5 lbs. (2.0kg) Pair
S623SST
Tweeter: Two 1" (25mm) Silk domes, Ferrofluid-cooled
Woofer: 6½" (165mm) Carbon fiber cone, dual voice coil, rubber
surround
Frequency Response: 43Hz – 20kHz ±3dB
Impedance: 8 Ohms nominal; 6 Ohms minimum
Power Handling: 5 watts minimum; 135 Watts maximum
Sensitivity: 90dB SPL (2.83V 1 meter)
Grille Material: Perforated aluminum
Dimensions (W x H x D): 8¼” x 12 3 /
16
" x 3 3 /
8
" (210mm x 310mm x 86mm)
Cutout Dim. (W x H): 6 13 /
16
" x 10 11 /
16
" (172mm x 270mm)
Shipping Weight: 5 lbs. (2.3kg) Each
SRS1
Tweeter: Two 1" (25mm) Silk domes, Ferrofluid-cooled
Woofer: 6½" (165mm) Carbon fiber cone, rubber surround, pivoting
Frequency Response: 55Hz – 20kHz ±3dB
Impedance: 8 Ohms nominal; 6 Ohms minimum
Power Handling: 5 watts minimum; 150 Watts maximum
Sensitivity: 90dB SPL (2.83V 1 meter)
Grille Material: Perforated aluminum
Dimensions (Dia. x Depth): 9¾" (248mm) x 5 3 /
16
" (132mm)
Cutout Diameter: 8 5 /
32
" (207mm)
Shipping Weight: 11 lbs. (5.0 KG) Pair
Tweeter
Level Control

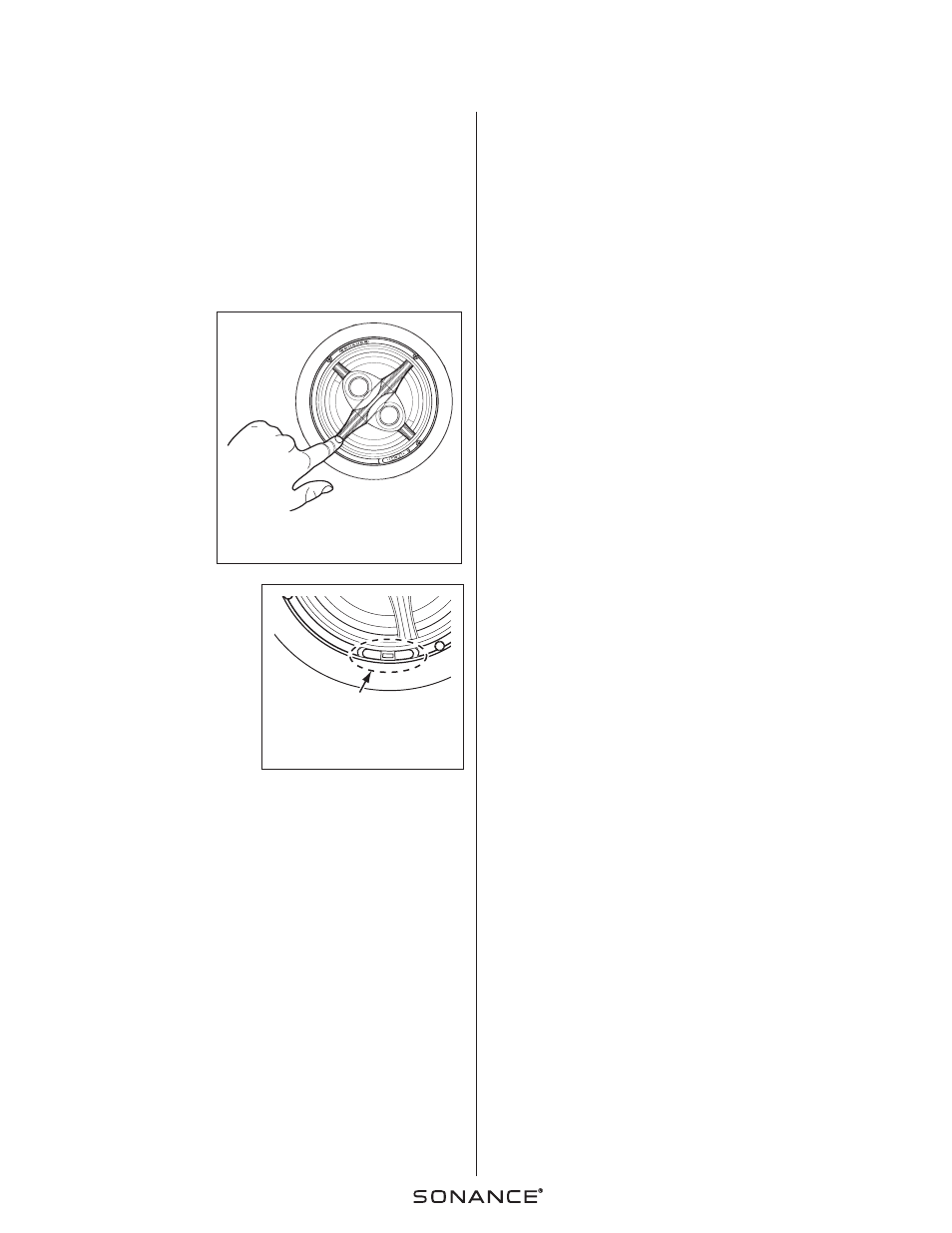

F I G U R E 8 :
T W E E T E R L E V E L C O N T R O L
F
I G U R E
7 :
P
I V O T I N G T H E
W
O O F E R
