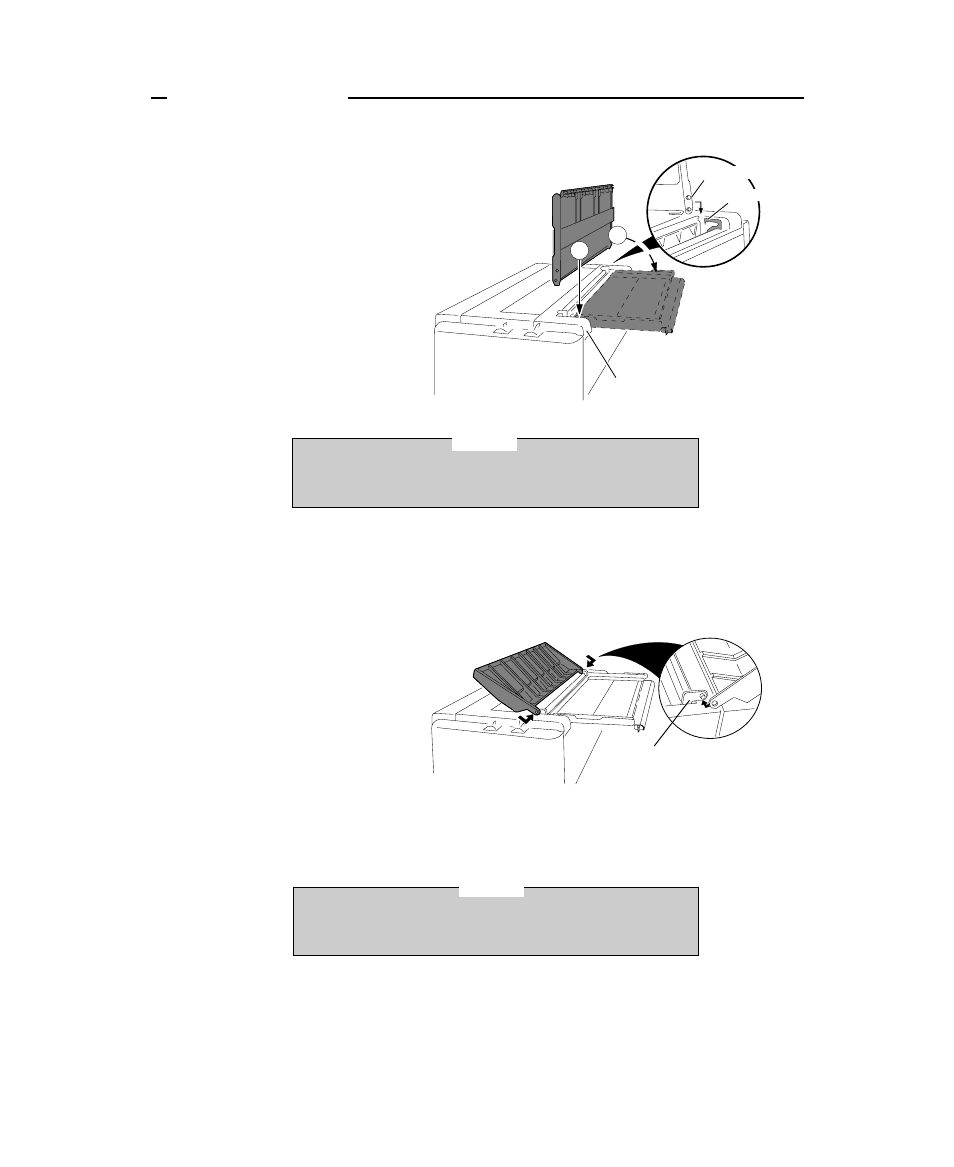

Installing the paper rack
1. S l i d e b o t h p a p e r g u i d e t o t h e
extreme left and right edges of the
paper rack.
2. With the two small pivots on either
side of the paper rack downward, fit
the pivots in the groove on the rear
top cover.
3. P l a c e t h e p a p e r r a c k i n u p r i g h t
position for single cut sheet paper
a n d l a y i t d o w n f o r f a n f o l d
continuous paper.
Installing the sound seal cover
1. Lay the sound seal cover upside
down on the printer.
2. Fit one of the holes of the cover to
the stud of the L-angle hinge on one
side of the printer.
3. Fit the other hole to the other stud
b y p r e s s i n g t h e L - a n g l e h i n g e
inward then out through the hole.
The paper guides should be placed to the out edges during the
installation or removal of the paper rack.
Make sure that both studs are out through the hole completely,
otherwise, the sound seal cover will be stuck in place.
