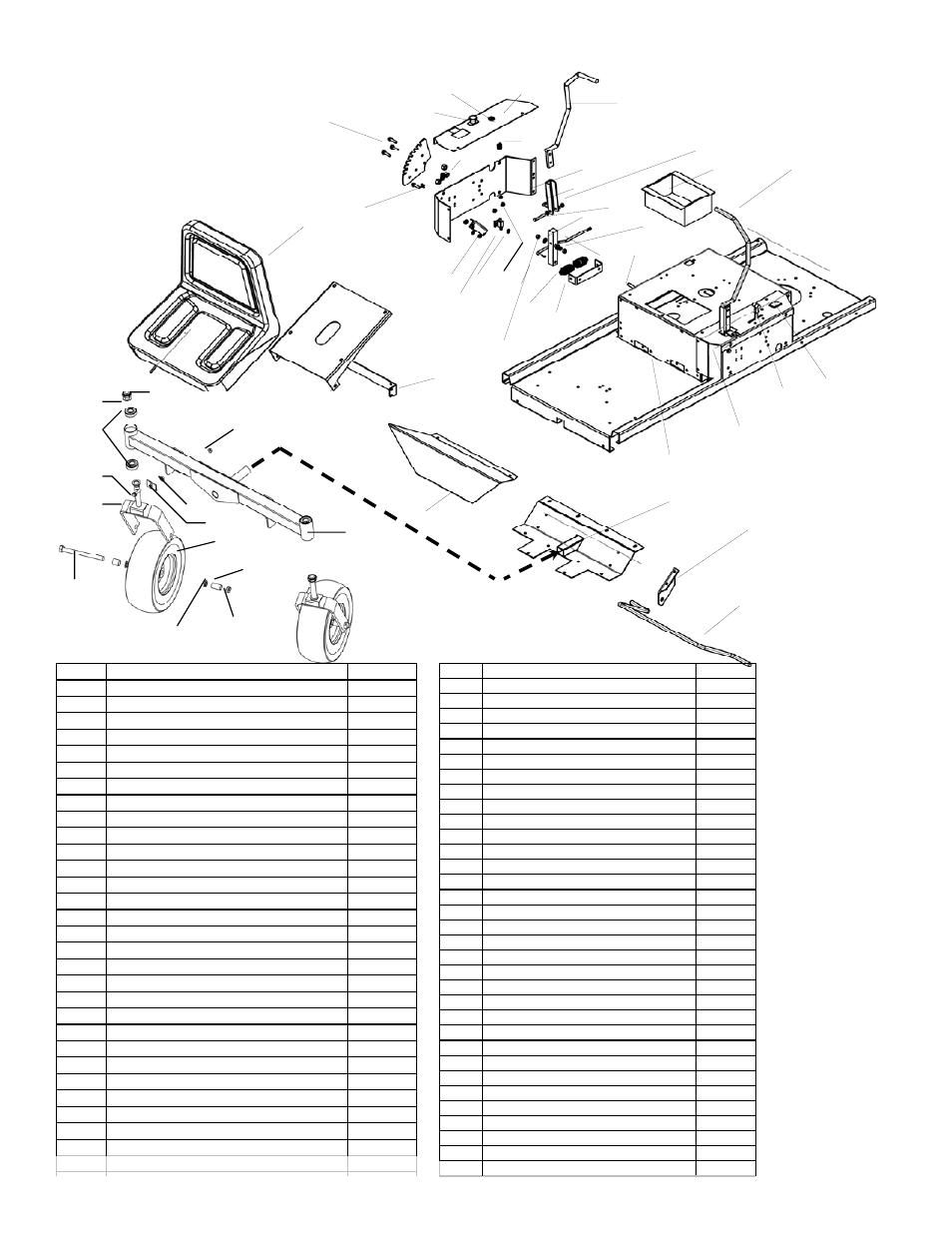

Parts breakdown – Swisher ZT2460 User Manual
Page 33
33
1
2
3
4
6
23
21
40
41
42
43
39
38
37
8
10
9
24
22
25
5
5
5
11
9
27
29
28
36
20
12
34
33
26
17
19
13
15
44
45
46
47
48
49
50
51
52
53
54
55
56
57
Item #
Description
Part #
1
Seat Base
9998TK
2
Control Panel
9991TK
3
Hour Meter
3803
4
Throttle Control 35"
3788
5
Handle Pivot
9985TK
6
Handle Weldment
9932TK
7
5/16-18 X 1 Serrated Flange GR5 Bolt
10548
8
Tool Box
9956TK
9
Neutral Bracket
9992TK
10
Tapered Spring
3609
11
Steering Linkage Control Arm
9927
12
3/8-16 X 2 1/4 GR5 Bolt
NB699
13
3/8-16 GR2
NB212
14
3/8-16 Jam Nut
NB174
15
3/8 SAE Washer
NB272
16
3/8-16 2-Way Lock Nut
NB280
17
5/16-18X2 GR5 Bolt
NB507
18
5/16 SAE Washer
NB275
19
5/16-18 Nyloc Nut
NB181
20
Handle Weldment
9930TK
21
Control Panel Right
9990TK
22
Key Switch
3623
23
PTO Switch
3605
24
Tinnerman Clips 5/16-18 Heavy Duty
3669
25
Side Plate
9996TK
26
5/16-18 Serrated Flange Nut
NB170
27
Return to Neutral Switch
3695
28
8-32 Kep Nut
NB201
29
Safety Switch Rocker Arm
9925TK
30
5/16-18 Nyloc Nut
NB181
31
5/16 SAE Washer
NB275
32
Spacer
B99S
33
1/2-13 GR2 Nut
NB213Z
34
8-32X 1/2 Phil Truss Screw
NB197
35
Control Panel Right
9990TK
36
5/16-18 X 1 1/4 Serrated Flange Bolt
NB253
37
ZT Seat 18"
10570
38
Seat Mount
9984TK
39
Seat Bracket
3807TK
40
Foot Plate
9995TK
41
Pivot Plate Housing Weldment
9954TK
42
Deck Stabilizer-Left
9950TK
Deck Stabilizer-Right
43
Deck Stabilizing Bar
9949
44
Pivot Axle Weldment-Painted
9994TK
45
Blade Bearing
B98
46
Textured Black Caster T50
665TK
47
Tire/Wheel Slick 4.10x3.5-5 5/8 Bearing
3010
48
5/8-11 X 7 HCC GR5 ZP
nb624
49
5/8 ID X 1 OD 10 GA Washer
nb178
50
Wheel Spacer 1"
3395
51
5/8-11 2 Way Lock Jam Nut
nb595
52
13/16 X 1 1/4 X 1/8 Washer
nb195
53
3/4-16 Jam Nylok Nut
nb122
54
5/16-18 X 1 Serrated Flange GR5 2P
10548
55
Axle Washer-Painted
9915tk
56
Spacer
B99S
57
5/16-18 Serrated Flng Nut
NB170
NOT SHOWN
Arm Rest Kit
10571
Mat for Pan
10729
Mat for Foot Plate
105549
60" Choke Cable
9914
PARTS BREAKDOWN
