Swisher ZT2460 - Manual (Page 30)

30
Item # Description Part #
1 60 ZT Deck weldment - painted 9901 TK
2 5/16-18 x 3/4 Serr flange bolt NB596
3 Belt Cover - painted 6025TK
4 3/8 SAE washer NB272
5 3/8-16 nyloc nut NB182
6 Anti-scalp roller 3/8 ID AS001
7 5/16-18 serrated flange nut NB101
8 Deck Hanger - painted 9938TK
9 5/16-18 serrated flange nut NB170
10 Chute mount-painted 6030TK
11 5/16-18 x 8 1/2 HCC GR2 ZP NB136
12 5/16-18 nyloc nut NB181
13 Torsion spring- bent leg 9100
14 Discharge Chute Weldment-painted 9902TK
15 3/8-16 x 5 1/2 GR5 ZP NB575
16 3/8-16 nyloc nut NB182
17 Idler Bushing 6037
18 3/8-16 x 2 1/4 HTC GR5 ZP NB693
19 Idler Arm -painted 6141TK
20 Idler Spacer 6040
21 3/8-16 x 1 1/2 HCC GR5 ZP NB107
22 Idler Pulley OD 3.25, ID 3/8 B527

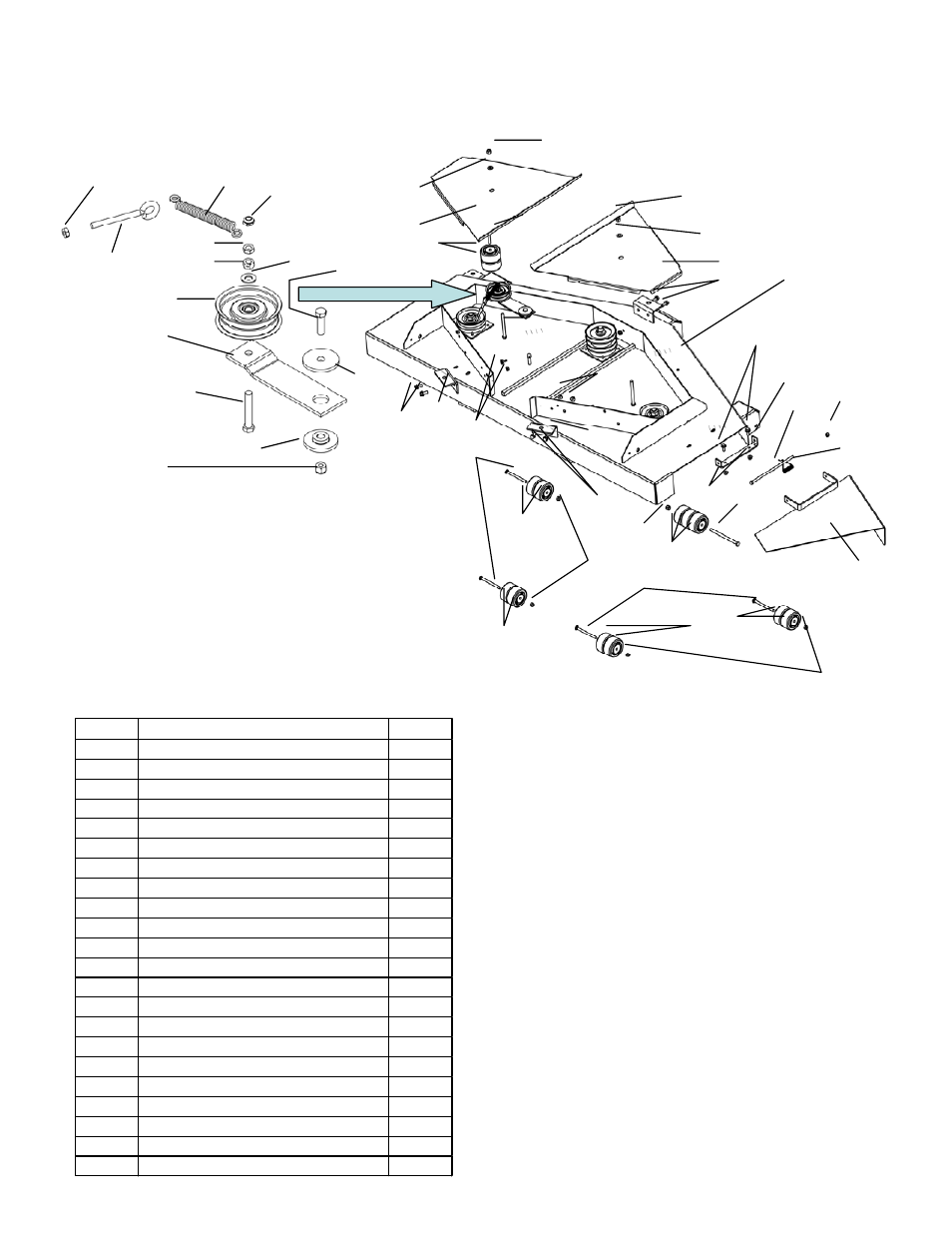

PARTS BREAKDOWN
