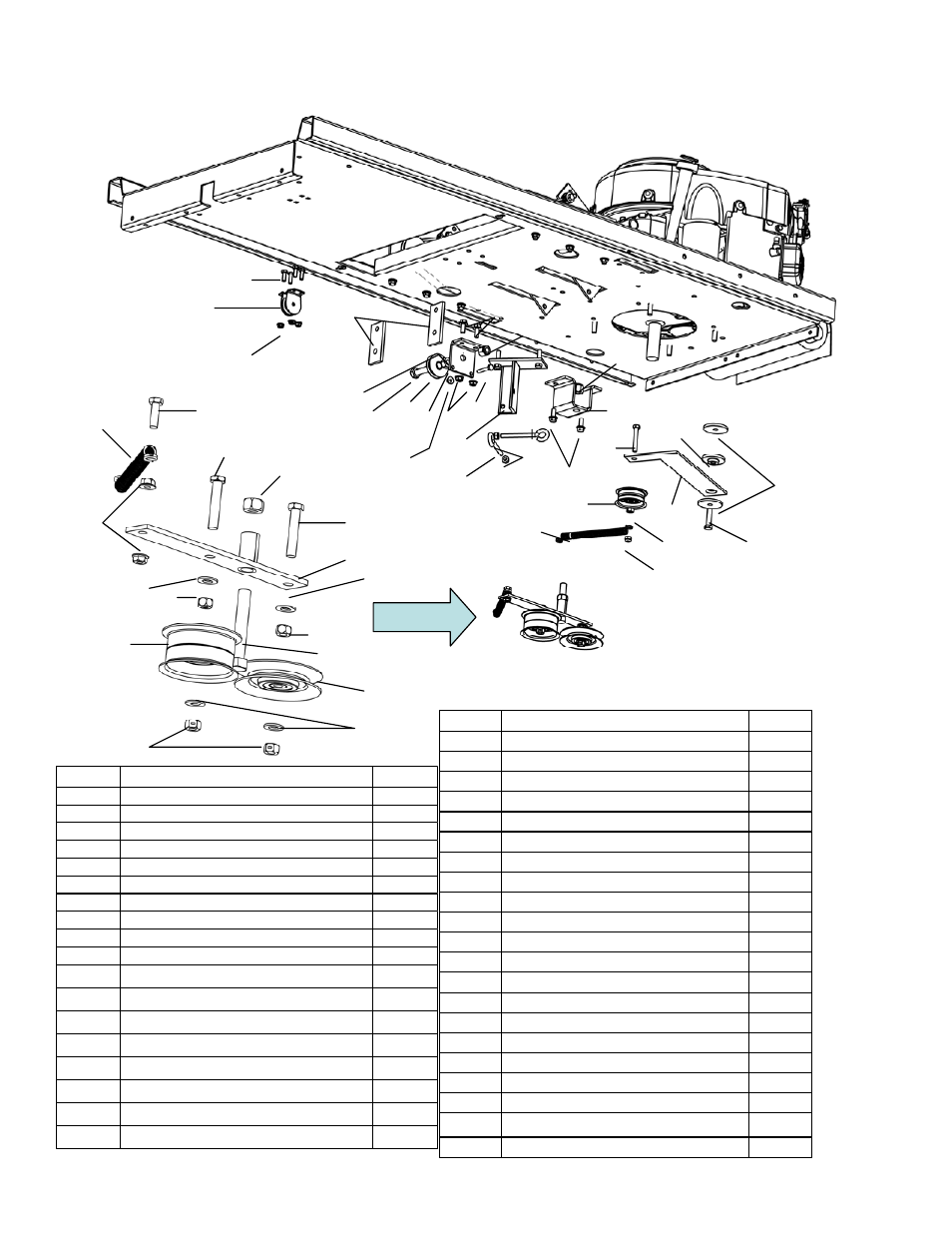

Parts breakdown – Swisher ZT2460 User Manual
Page 29
29
1
2
3
4
5
6
7
8 9
10
1112
13
14
14
15
5
16
17
18
19
20
21
22
23
Item #
Description
Part #
19
Idler Bushing
6037
20
Idler Bracket Painted
9944TK
21
Idler Pulley OD-2.16", ID-3/8"
B27
22
3/8-16 X 1 1/2 HCC GR5 ZP
NB107
23
Clutch Rod Spring T60
682S
24
1/4-20 Flange Nut
NB524
25
5/16 Nylon Bushing
NB198
26
3/8-16 2-Way Lock Nut
NB280
27
3/8-16 Nyloc Nut
NB182
28
Lower Belt Idler Arm
3691TK
29
1/2-13 X 3 HCC GR5 Bolt ZP
NB131
30
3/8-16 X 2 HTC GR2 ZP
NB231
31
3/8 SAE Washer
NB272
32
3/8-16 2-Way Lock Nut
NB280
33
Idler Pulley OD-2.75", ID-3/8"
7509
34
3/8-16 HNC GR2 ZP
NB212
35
1/2-13 Nut GR2 ZP
NB213Z
36
5/16-18 X 1 HCC GR5 ZP
NB501
37
5/16-18 Serrated Flng Nut
NB170
38
Idler Pulley V OD-3.54", ID-3/8"
3622
39
Clutch Rod Spring T60
682S
24
25
26
27
I te m #
De scr iption
Pa rt #
1
1/ 4- 20 X 3/ 4 Carriage Bolt
10547
2
1 1/ 2" Block Pulley
10728
3
1/ 4- 20 Serrated Flg Nut
NB524
4
Sping Assist Brack et
9926TK
5
5/ 16- 18 X 3/ 4 Serrated Flange Bolt
NB596
6
Pulley Mount Tab
9963TK
7
1/ 2- 13 X 2 GR5 Bolt
NB509
8
Cable Pulley
5542
9
1/ 3- 13 GR2 Nut
NB213Z
10
1/ 2- 13 Nyloc Nut
NB281
11
5/ 16- 18 Serrated Flange Nut
NB170
12
1/ 4- 20 X 1 1/ 2 GR2 Bolt
NB162
13
Tension Brack et
9918TK
14
5/ 16- 18 X 3 1/ 2 center of eye eye bolt
NB315
15
5/ 16- 18 Nyloc Nut
NB181
16
Belt to Deck Idler Brack et
9957TK
17
1/ 2- 13 Nyloc Nut
NB281
18
Idler Spacer
6040
36
39
37
30
35
30
28
31
34
31
34
33
29
38
31
32
PARTS BREAKDOWN
