Hardware Installation SY-6BA+ IV
30
2-3.3.2 Floppy Drive Installation
The system supports 5 possible floppy drive types: 720 KB, 1.2 MB,
1.44 MB, 2.88 MB, and LS- 120. In addition, this Motherboard supports a
3- mode (720 KB/ 1.2 MB/ 1.44 MB) floppy commonly used in Japan.

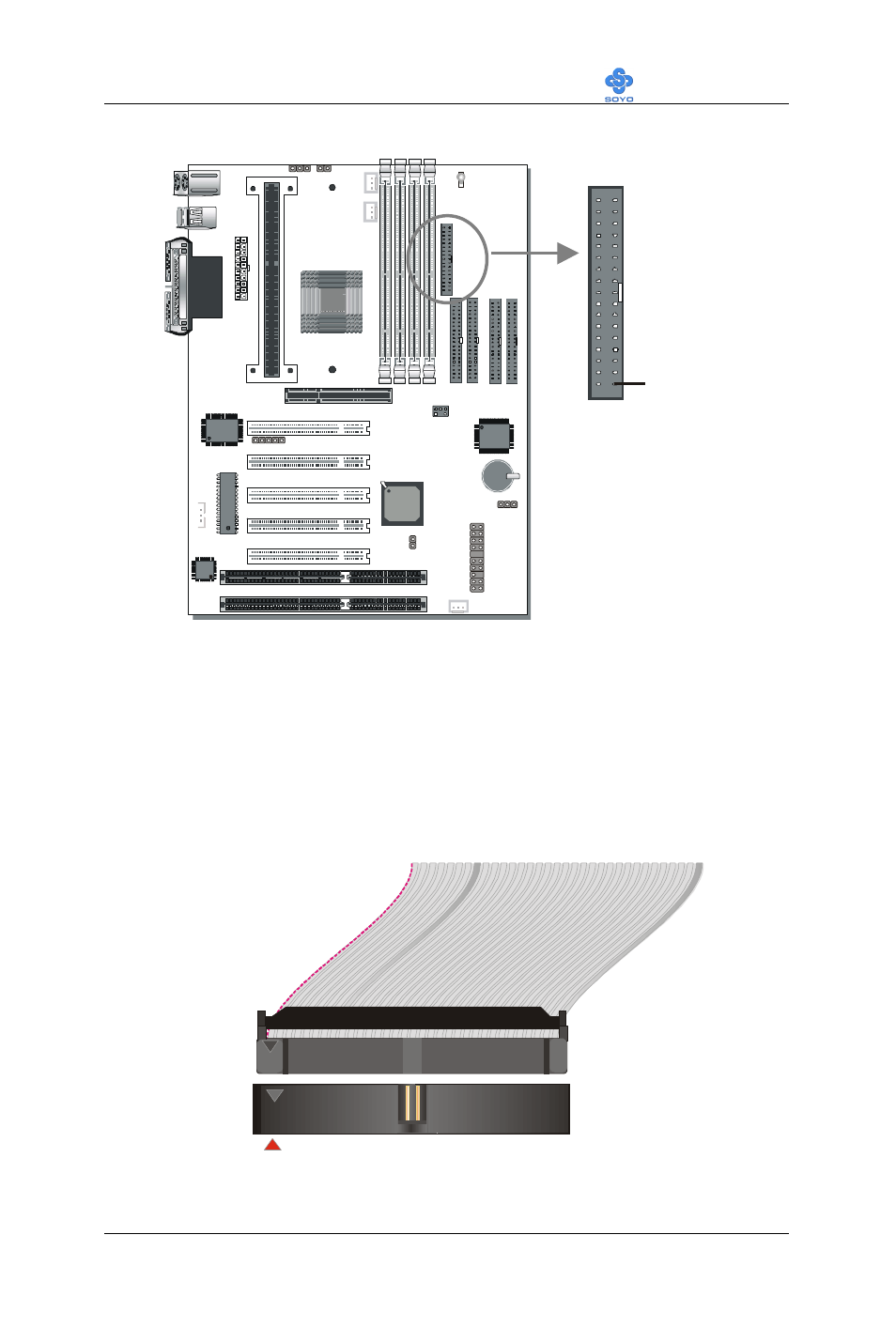

Connect one side of the 34- pin flat cable to the floppy drive and plug the
other end to the floppy drive connector on the Motherboard.
This Motherboard can support up to 2 floppy drives.
®
® 1
®
82 8 A C
1
1
33
33
FDC
Pin -1
Floppy Drive
Connector
