9. Adjusting ZOOM and FOCUS.
9-1. Adjusting the ZOOM: Unscrew the ZOOM LEVER
slightly to allow the zoom position to be adjusted
- Zooming in (TELE): Rotate the ZOOM LEVER in a
clockwise direction to obtain a wider angle view.
- Zooming out (WIDE): Rotate the ZOOM LEVER in
an anti-clockwise direction to obtain a narrower
angle view.
9-2. Adjusting the FOCUS: Unscrew the FOCUS
LEVER and adjust it to achieve best focus on the
screen.
E
12
User Guide

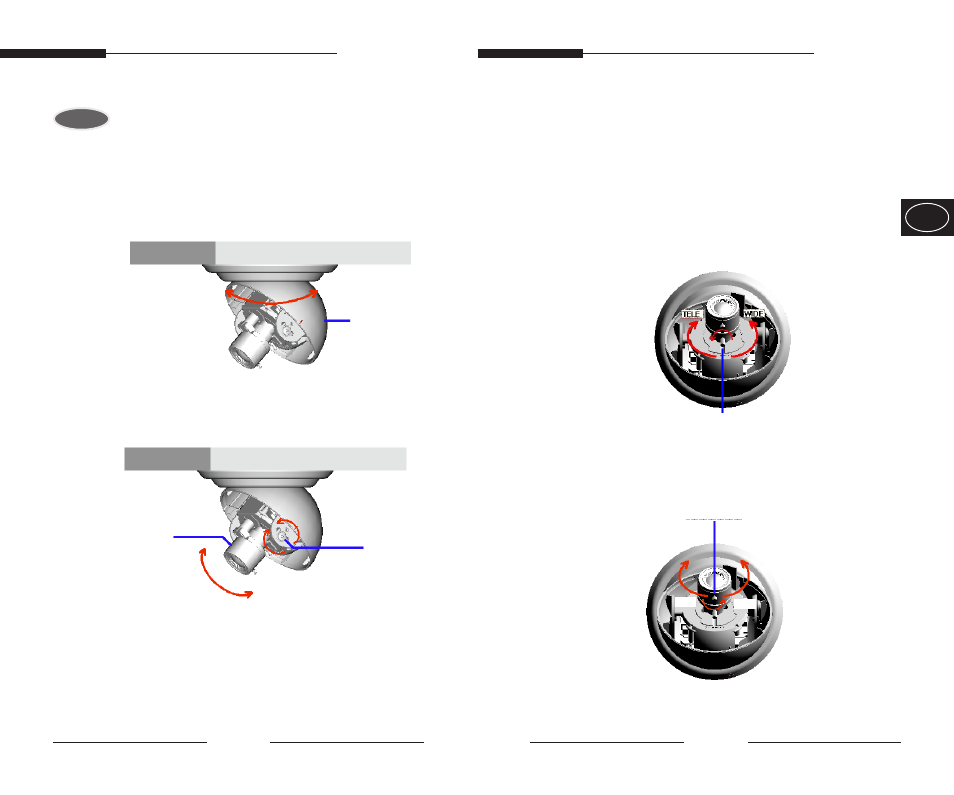

7. Rotate the CASE-BOTTOM part of the camera to set
the monitoring direction
8. Unscrew the LENS-BLOCK Fixing-Screw slightly to adjust
the vertical monitoring position.
The Lens Block must be rotated when installing onto a wall.
The horizontal and vertical alignments would be inversed if
the camera is installed as provided Caution
CASE-
BOTTOM
ceiling
Fixing-Screw
ceiling
LENS-
BLOCK
ZOOM LEVER
FOCUS LEVER
FAR NEAR
