4 5
User Guide User Guide

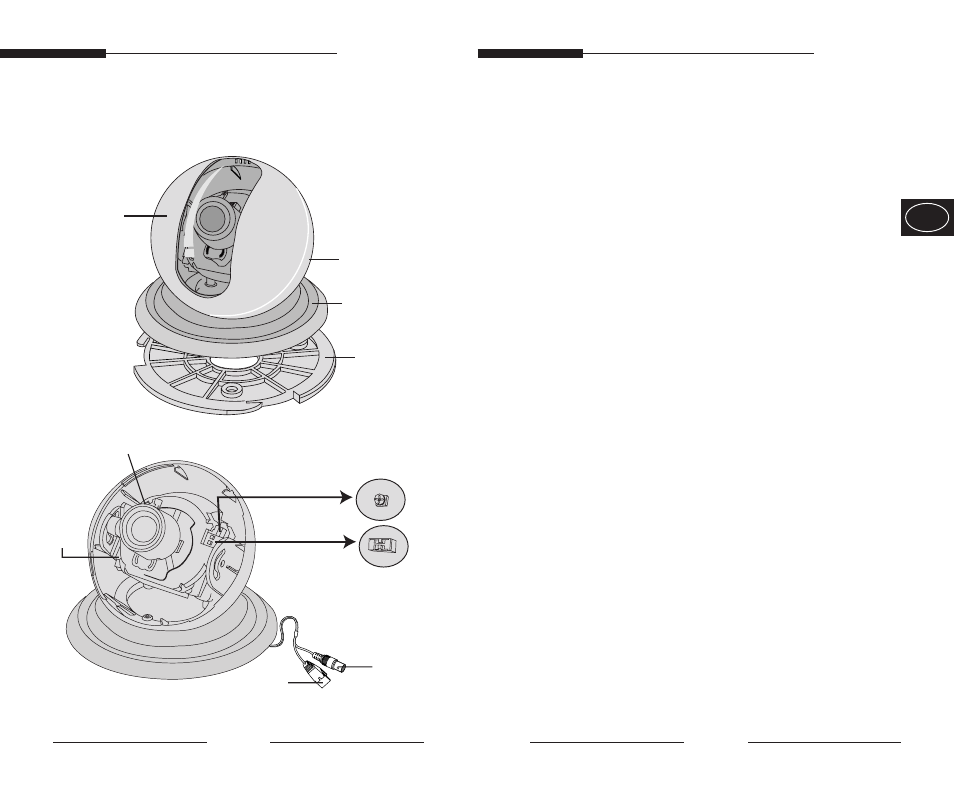

2. Component Name 3. Function of Each Component
■
CASE-TOP
• The transparent plastic cover that protects the
camera.
Be careful not to make a scratch on it.
■ CASE-BOTTOM
• Combined with the CASE-TOP, supports the
camera.
■ COVER-CEILING
• Combined with the BRACKET, secures the
camera.
■
BRACKET
• Installed to the ceiling or wall with the SCREW,
secures the camera.
■
Variable focus lens
• Variable focus lens installed on the camera.
Please take cautions that any dust or foreign
matter gathers on the front glass surface of the
lens.
■
PCB board
• This part is quite important since it performs
the camera function. Please handle with care.
■
Power cable
• The terminal that is connected to the power
(adaptor) cable. Connect to DC 12V/AC 24V.
■
Video signal output cable
• The cable that sends the video signal.
E
Video
cable
PCB
board
CASE-TOP
COVER-
CEILING
CASE-
BOTTOM
Variable focus
lens
Power
cable
Iris Level Control
Function Switches
BARCKET
