Specifications

12-7

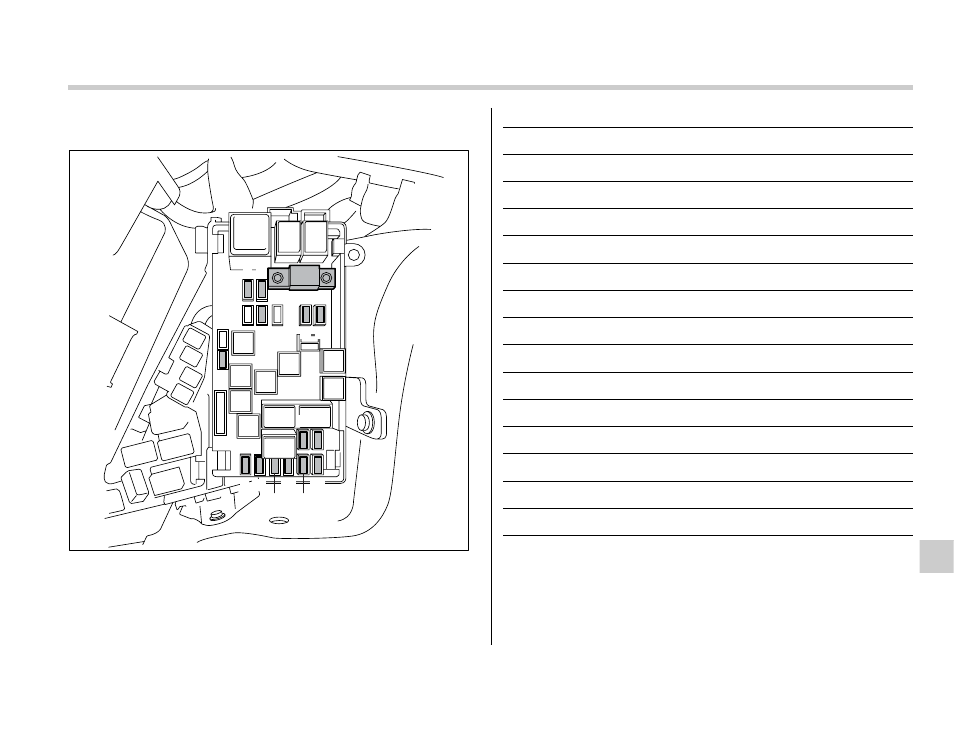

„ Fuse panel located in the engine compartment

A) Main fuse

2

1

3

A

6

7 8

9 10

11

13

12

14

4 5

C00100

Fuse panel

Fuse rating

Circuit

1

30A

y

Vehicle dynamics control unit

2

25A

y

Main fan

3

25A

y

Main fan

4

15A

y

Headlight (right side)

5

15A

y

Headlight (left side)

6

20A

y

Backup

7

15A

y

Horn

8

25A

y

Rear window defogger

9

15A

y

Fuel pump

10

15A

y

Automatic transmission control unit

11

7.5A

y

Engine control unit

12

15A

y

Turn and hazard warning flasher

13

20A

y

Parking switch

14

7.5A

y

Alternator
